Bucket Truck Chassis
The comprehensive KLUBB product line offers working heights from 10m to 20m.  Our Chassis-mounted Aerial Access platforms are designed to be mounted onto numerous types of chassis and pick-up: Mercedes Sprinter, Iveco Daily, Isuzu D-Max… The large selection of options ensures that the final product will be just right for the job at hand.

Our chassis truck aerial lift models combine safety, robustness and agility to meet the needs of professionals working at heights who are required to intervene in extreme locations. Our aluminium telescopes ensures excellent stability and the conveyor chain and the extension cylinders are protected in the arm for improved durability. In addition, their entirely hydraulic operation means easy maintenance throughout the world.

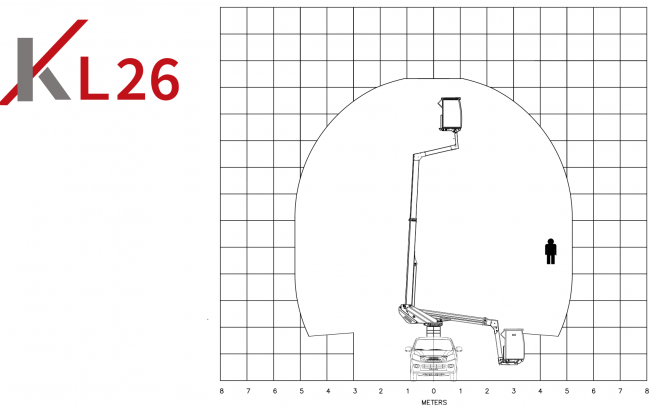

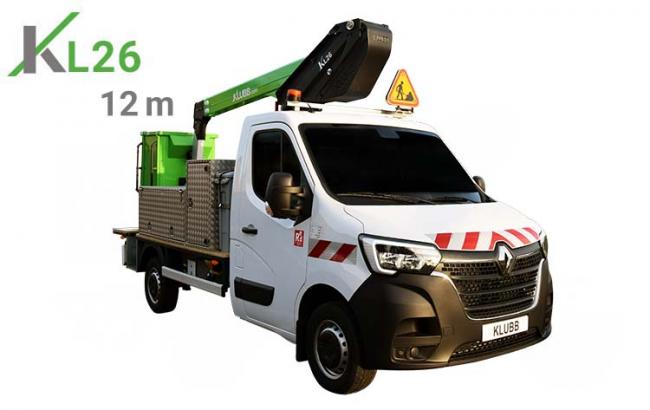

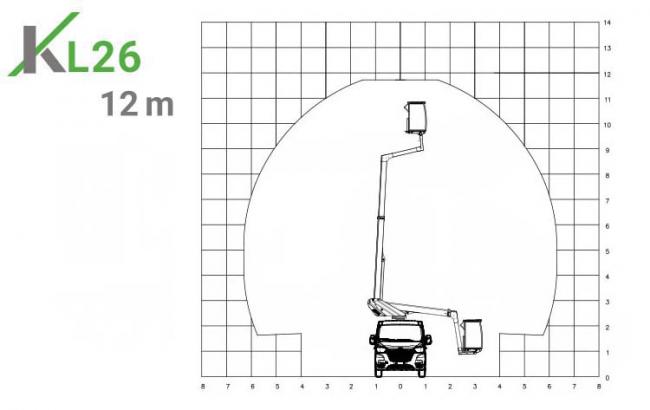

10.70m Bamboo aerial platform on Renault Master L2 KL26

10.70 Meters Bucket Truck Chassis (32’80”)

The KL26 platform on a chassis with its decking made with fibers of bamboo offers a better payload, with a gain of 20kg. Its features are no less impressive with a maximum working height of 10.70 m and a lateral offset of 6 m.

KLUBB Model = KL26
Max. working height = 10.70
Max. lateral outreach = 6
Capacity = 120kg, 1 operator, no outriggers
Rotation = 360°

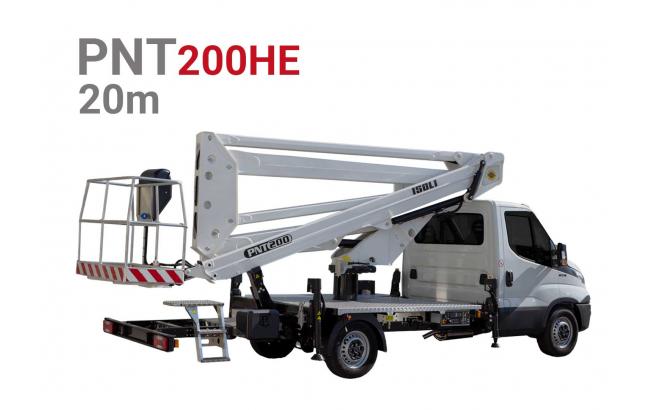

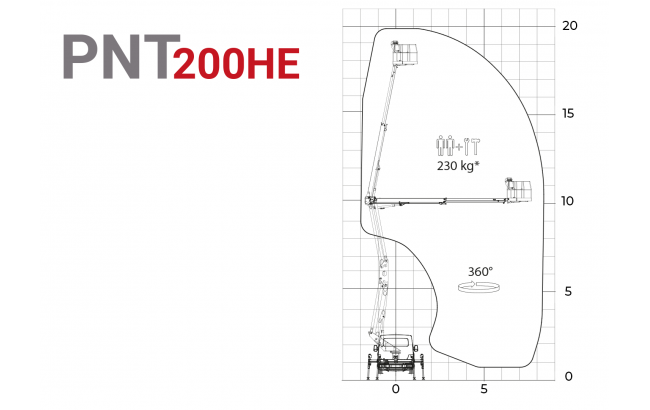

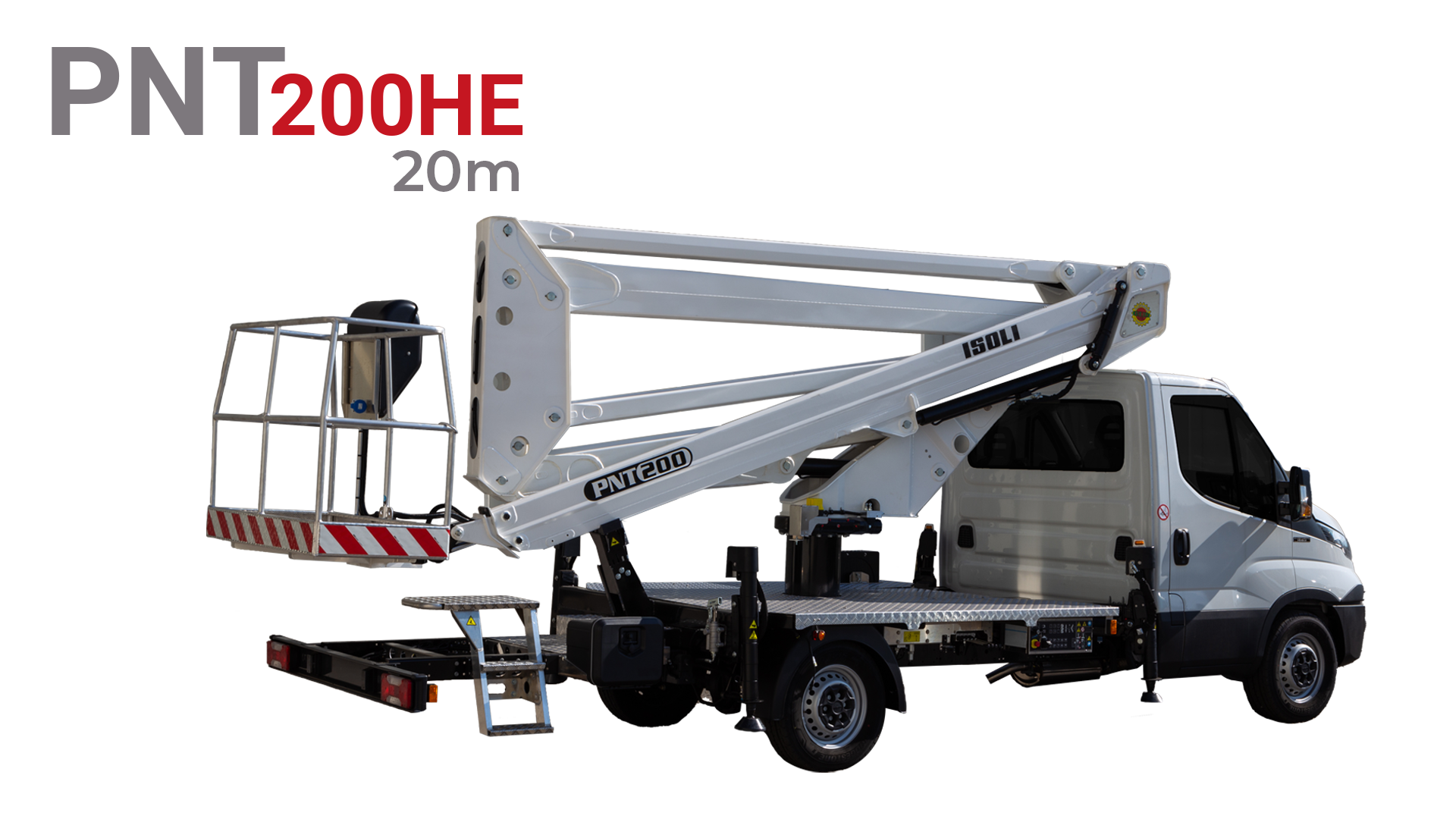

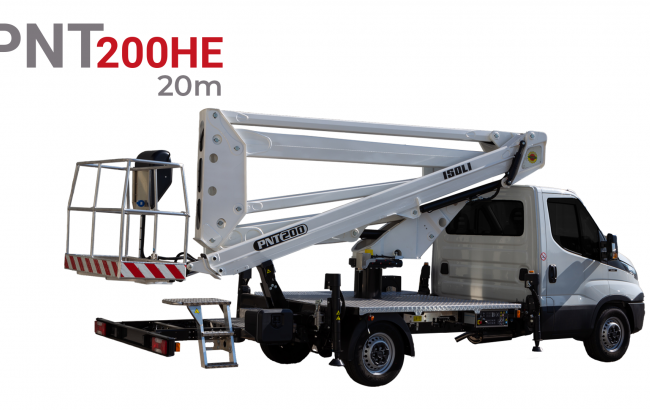

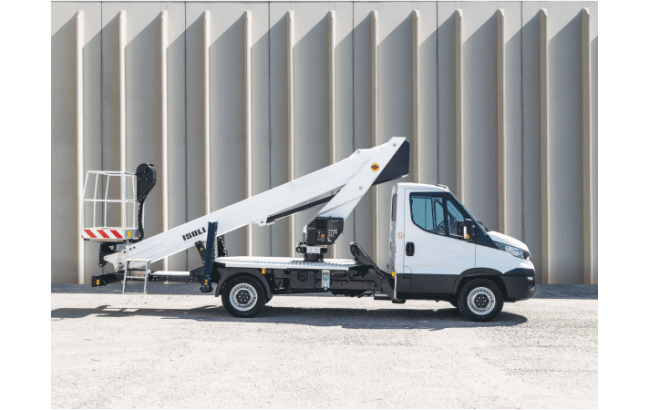

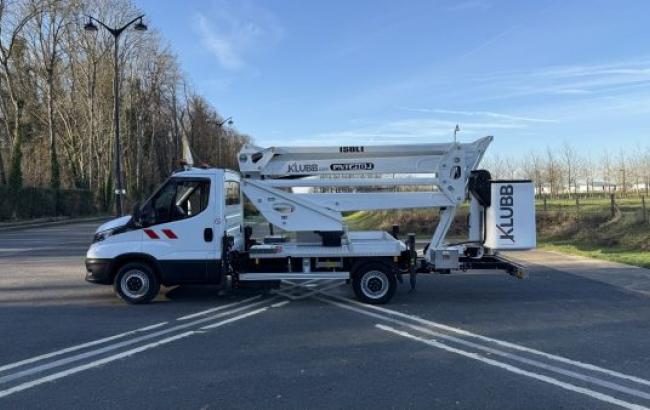

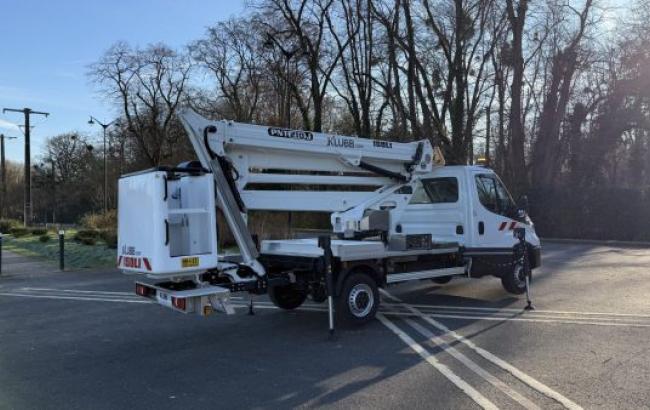

20m Articluated aerial platform on Iveo Daily PNT200 HE

20 Meters Bucket Truck Chassis (65'6")

This chassis mounted aerial platform offer high performance, safety and total cost of ownership (TCO). These products will offer high performance up to 20m high, and until 8.20m of lateral reach. The PNT200 HE is an ideal solution for rental companies, public lighting works or maintenance of electrical networks.

KLUBB Model = PNT200 HE
Max. working height = 20
Max. lateral outreach = 8.20
Capacity = 230kg
Rotation = 360°

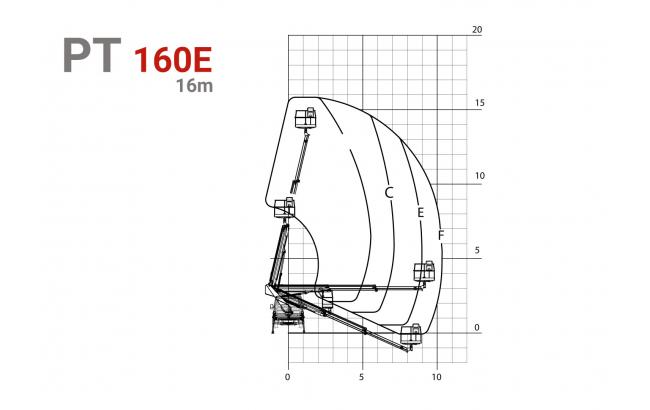

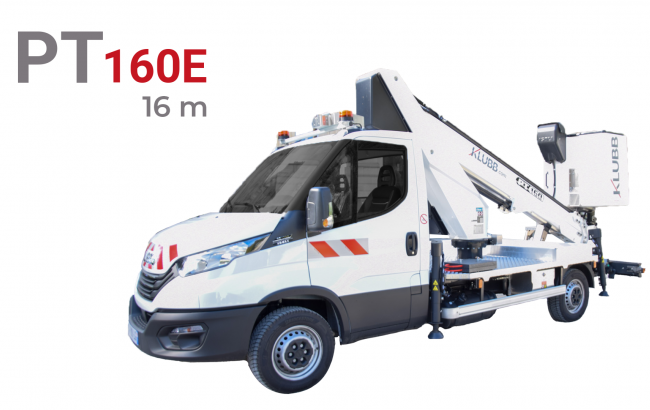

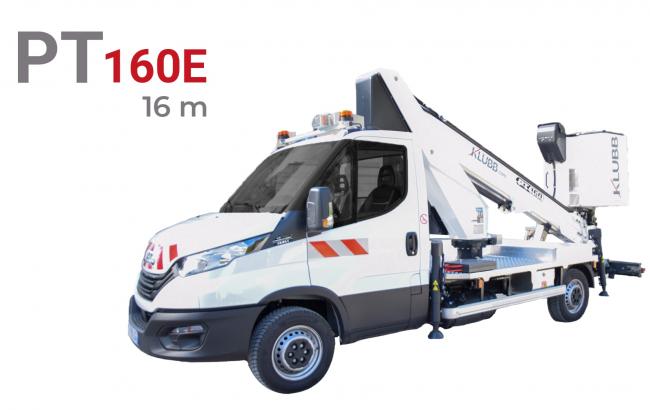

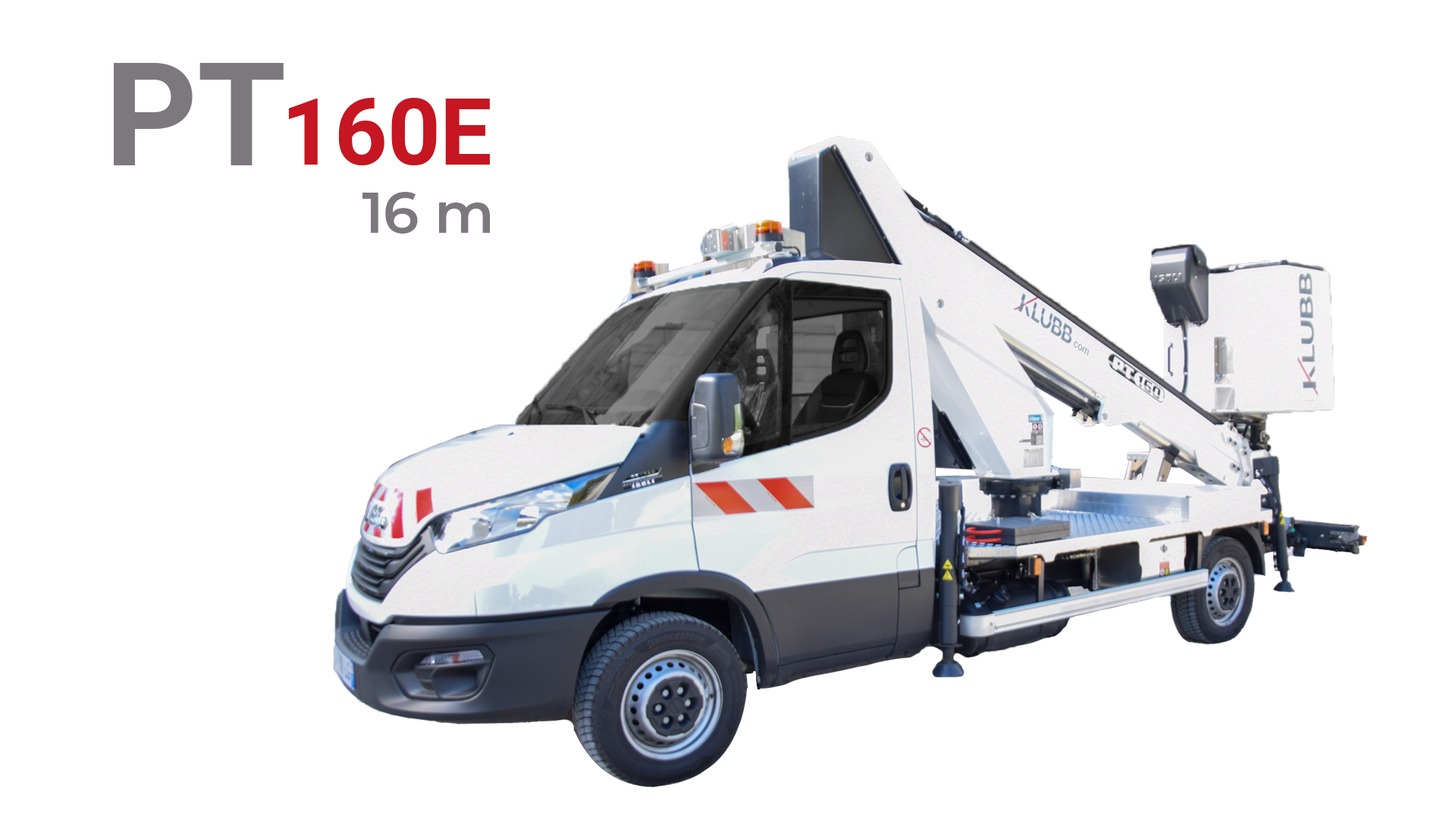

16m telescopic aerial platform on Iveco Daily PT160E

This chassis mounted aerial platform offer high performance, safety and total cost of ownership (TCO). These products will offer high performance up to 16m high, and until 10.50m of lateral reach. The PT160 E is an ideal solution for rental companies, public lighting works or maintenance of electrical networks.

KLUBB Model = PT160E
Max. working height = 16
Max. lateral outreach = 10.50
Capacity =
Rotation = 360°

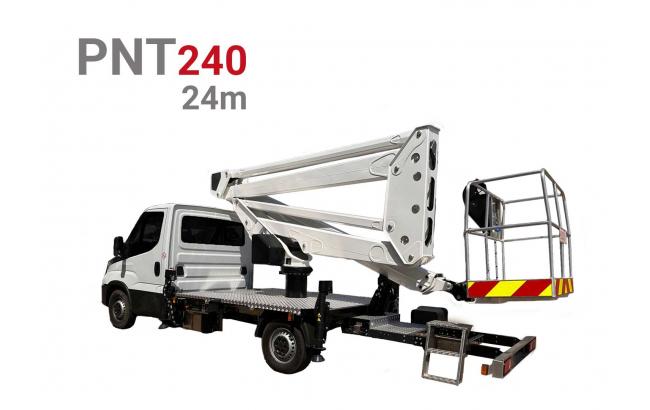

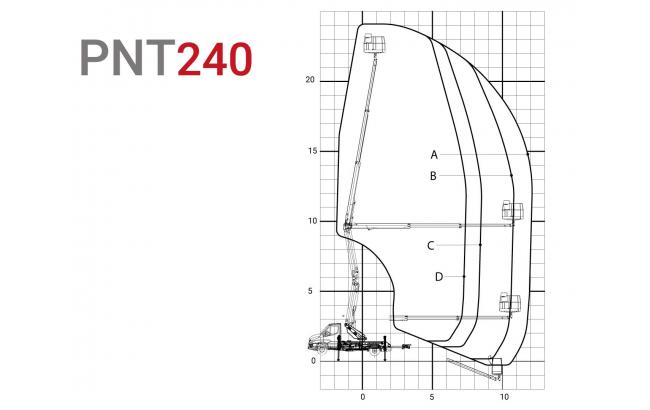

24m Articulated aerial platform on Iveco Daily PNT240

24 Meters Bucket Truck Chassis (78'7")

This chassis mounted aerial platform offer high performance, safety and total cost of ownership (TCO). These products will offer high performance up to 24m high, and until 12m of lateral reach. The PNT240 is an ideal solution for rental companies, public lighting works or maintenance of electrical networks.

KLUBB Model = PNT 240
Max. working height = 24
Max. lateral outreach = 12
Capacity = 250
Rotation = 360°

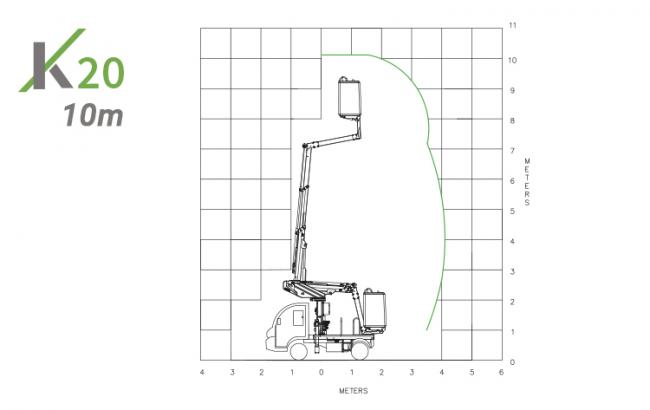

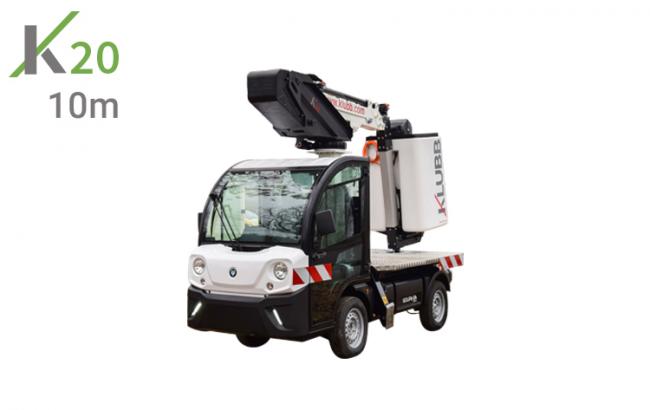

10m Telescopic aerial platform on Goupil G4 K20

10 Meters Bucket Truck Chassis (32’10”)

Fully electric, the K20 is an eco-friendly zero emission aerial work platform. It is mounted on a electric Goupil G4 and can reach 10.10m working height and 4.10m offset. Exceptional features for its size!

KLUBB Model = K20 Goupil G4
Max. working height = 10.10m (33’2″)
Max. lateral outreach = 4.10m (13’5″)
Capacity = 120kg, 1 operator, 2 outriggers
Rotation = 420°

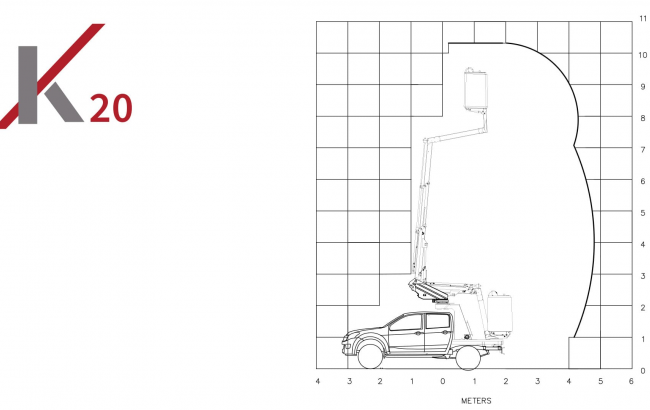

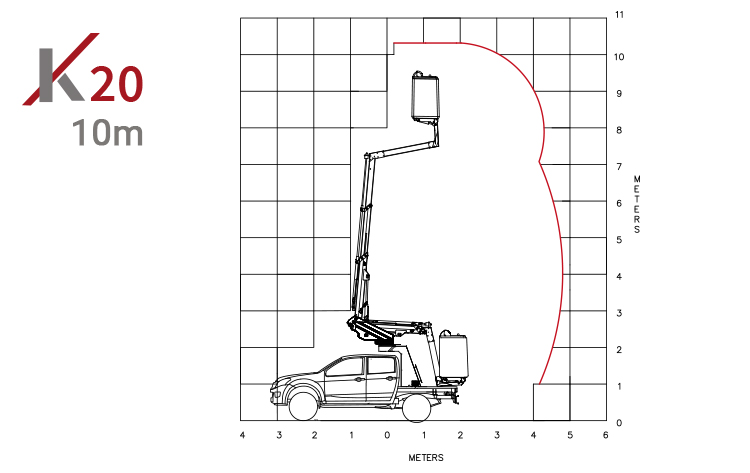

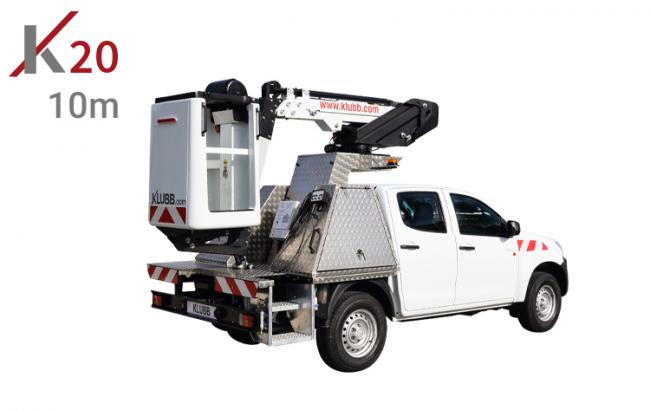

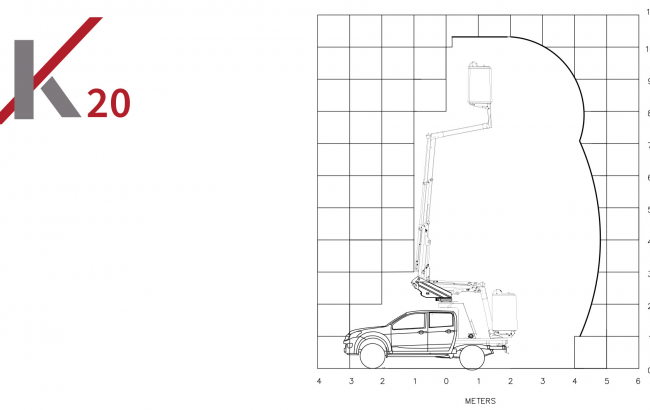

10m Telescopic aerial platform on Isuzu D-Max K20

10 Meters Bucket Truck Chassis (32’10”)

This platform on pick-up with a deported turret is very compact and has been designed to work in areas difficult to access in any kind of environment (cities, deserts, mountains…). With a working height of 10.2m and an outreach of 5m, it’s the perfect too

KLUBB Model = K20 D-MAX
Max. working height = 10.30m (33’10”)
Max. lateral outreach = 4.80m (15’9″)
Capacity = 120kg, 1 operator
Rotation = 420°

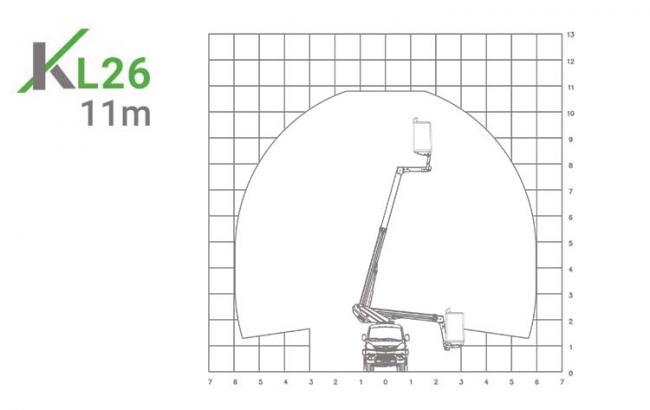

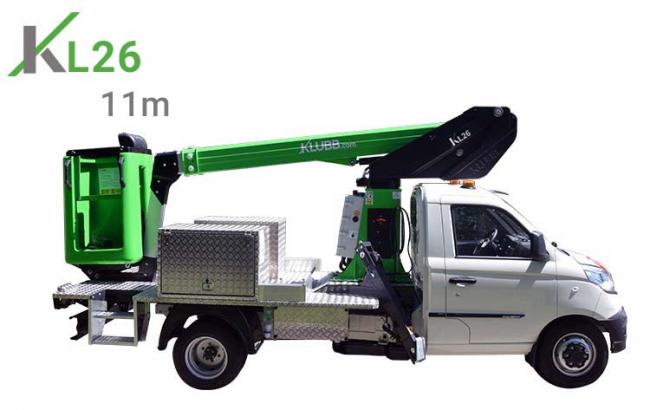

10.70m Telescopic aerial platform on Piaggio Porter NP6 KL26

10.70 Meters Bucket Truck Chassis (32’80”)

The KL26 platform on a Piaggio Porter NP6 is a dual fuel model (fuel/LPG and fuel/NGV) with a maximum working height of 10.70 m and a lateral offset of 6 m.

KLUBB Model = KL26 NP6
Max. working height = 10.70m (32’80”)
Max. lateral outreach = 6m (19’68”)
Capacity =
Rotation = 360°

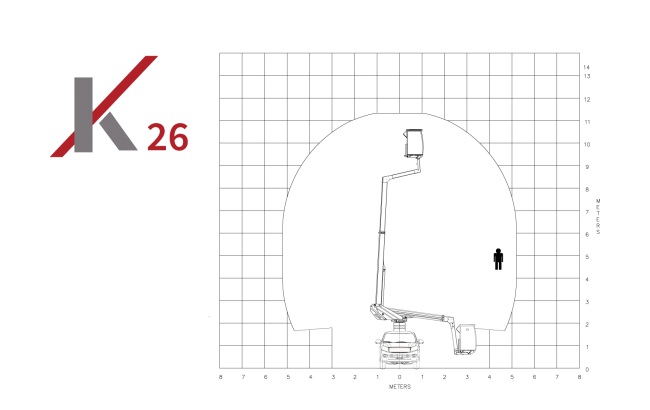

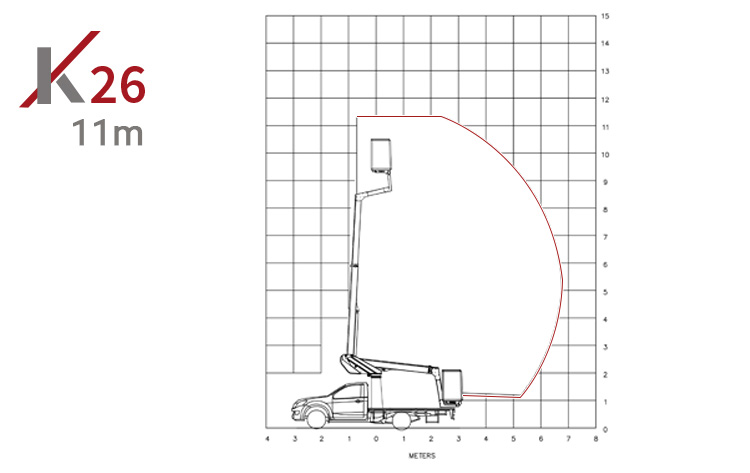

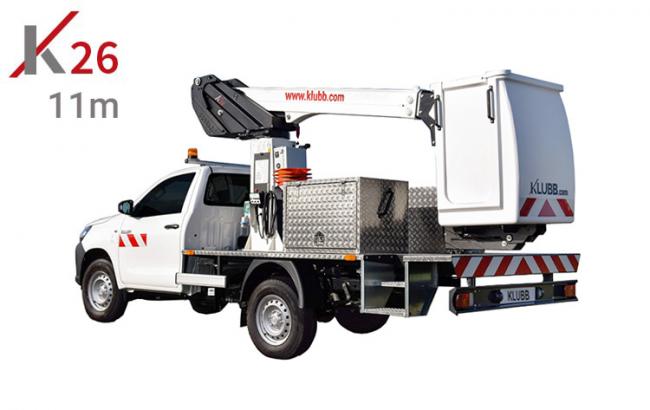

11m Telescopic aerial platform on Toyota Hilux KL26

11 Meters Bucket Truck Chassis (36’09”)

The K26 telescopic aerial platform mounted on a Toyota HiLux pick-up is designed to work on difficult surfaces. This telescopic boom lift mounted on a pick-up can work up to 11.30m high with an offset of 5m.

KLUBB Model = K26 HiLux
Max. working height = 11.30m (36’08”)
Max. lateral outreach = 5 m (16’40”)
Capacity = 120kg, 1 operator, no outriggers
Rotation = 360°

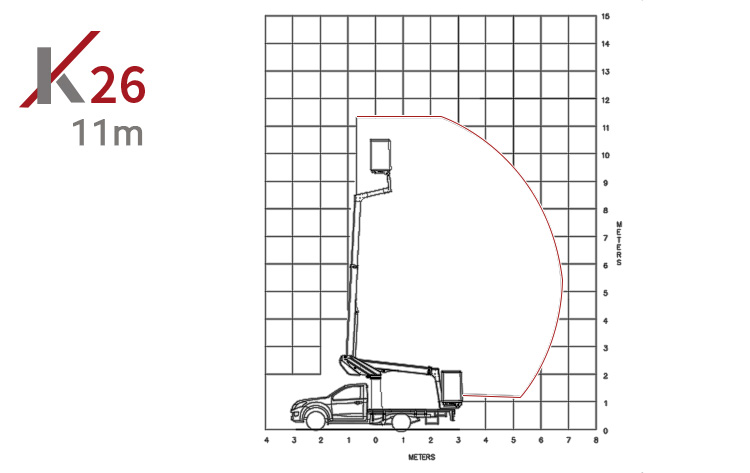

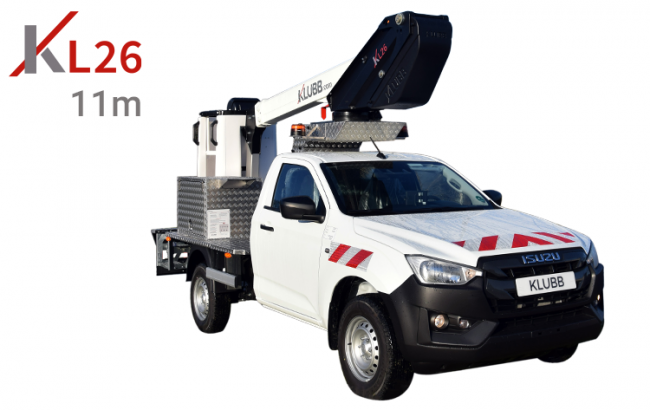

10.50m Telescopic aerial platform on Isuzu Dmax KL26

10.50 Meters Bucket Truck Chassis (36’09”)

The KL26 pick-up platform on an Isuzu DMAX is a compact model with a maximum working height of 11.30 m and a lateral offset of 5.20 m.

KLUBB Model = KL26 DMAX
Max. working height = 11.30m (37’07”)
Max. lateral outreach = 5.20m (16’40”)
Capacity = 120kg, 1 operator, no outriggers
Rotation = 360°

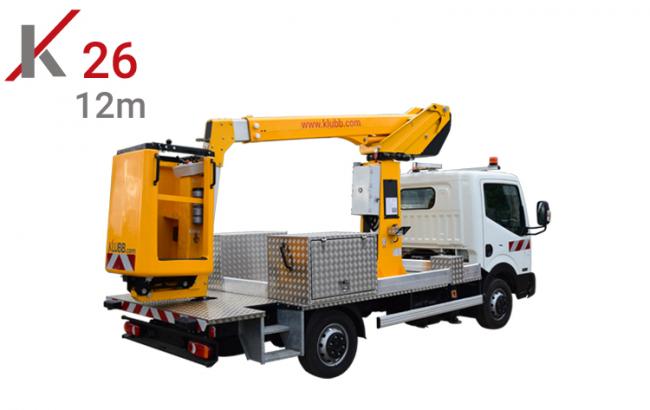

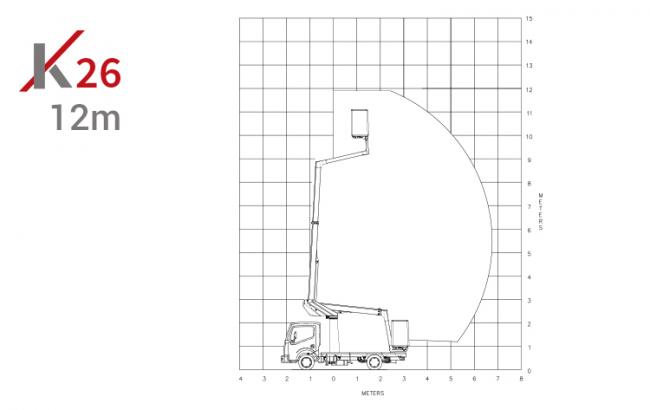

12m Telescopic aerial platform on Renault Maxity K26

12 Meters Bucket Truck Chassis (39’37”)

With its telescopic boom that can reach 11.80m working height and a lateral outreach of 6.80m, the K26 Chassis mounted Aerial Access Platforms are particularly recommended for advertising installers but also for maintenance of street lighting and overhead networks.

KLUBB Model = K26
Max. working height = 11.80m (38’71”)
Max. lateral outreach = 6.80m (22’31”)
Capacity = 120kg, 1 operator, no outriggers 2 men basket with outriggers (option)
Rotation = 360°

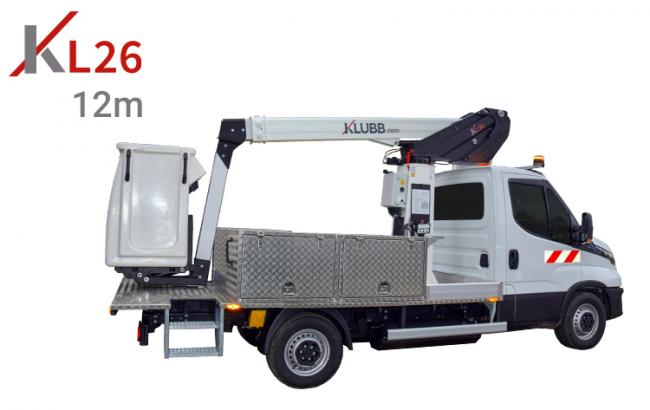

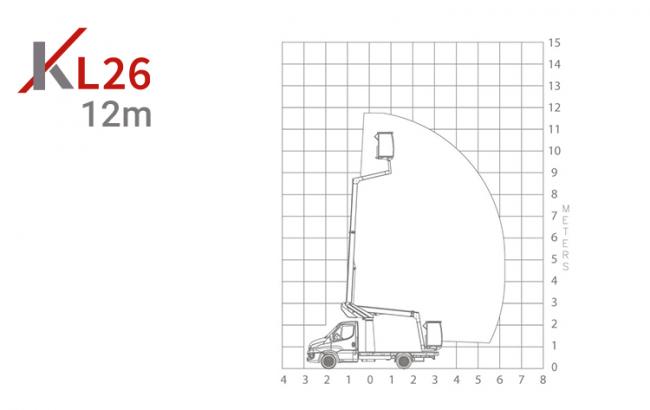

12m Gaz aerial platform on Iveco Daily KL26

12 Meters Bucket Truck Chassis (39’37”)

With its telescopic boom that can reach 11.80m working height and a lateral outreach of 6.80m, the KL26 Chassis mounted Aerial Access Platforms are particularly recommended for advertising installers but also for maintenance of street lighting and overhead networks.

KLUBB Model = KL26 GAZ
Max. working height = 11.80m (38’71”)
Max. lateral outreach = 6.80m (22’31”)
Capacity = 120kg, 1 operator, no outriggers 2 man basket with outriggers (optional)
Rotation = 360°

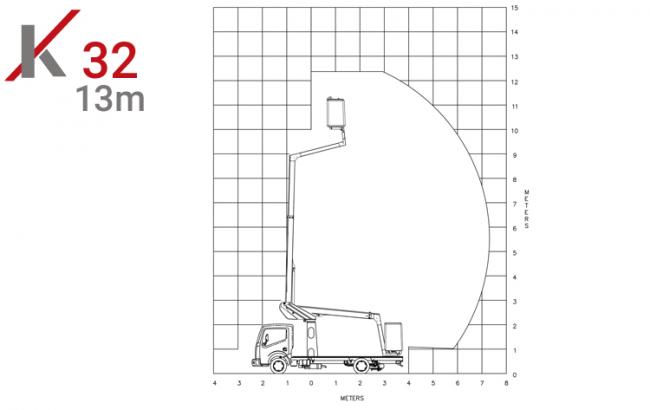

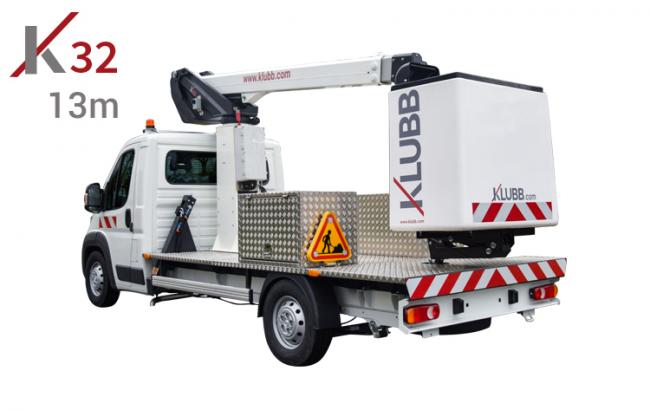

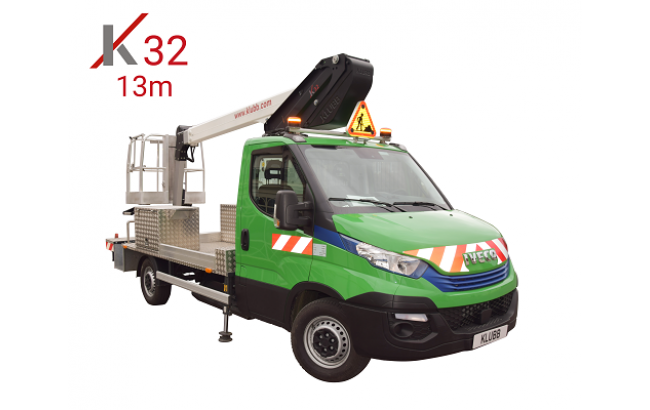

13m Telescopic aerial platform on Renault Maxity K32

13 Meters Bucket Truck Chassis (42’65”)

Designed for work at height such as the maintenance of public lighting, the K32 lightweight van can also be adapted to the maintenance of telecom networks.

KLUBB Model = K32
Max. working height = 12.50m (41’01”)
Max. lateral outreach = 7.30m (23’95”
Capacity = 120kg, 1 operator, no outriggers 2 men basket with outriggers (option)
Rotation = 360°


10.50m Hydrogen aerial platform on Iveco Daily K32

10.5 Meters Bucket Truck Chassis (42’65”)

Hydrogen is a track chosen by several car manufacturers and which seems interesting to us....

KLUBB Model = K32GAZ
Max. working height = 12.50m (41’01”)
Max. lateral outreach = 7.30m (23’95”)
Capacity = 120kg, 1 operator, no outriggers 2 men basket with outriggers (option)
Rotation = 360°

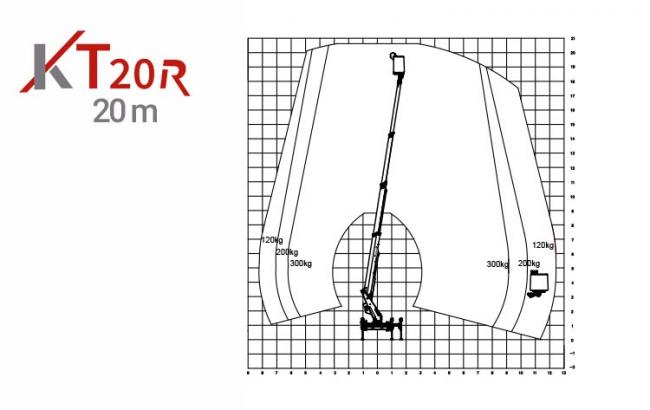

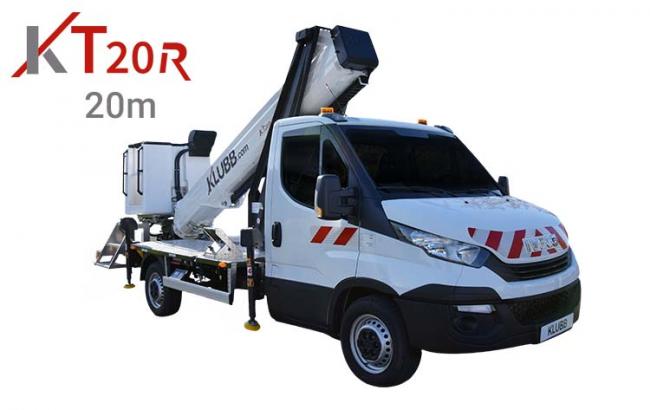

20.60m Telescopic aerial platform on Iveco Daily KT20R

20.60 Meters Bucket Truck Chassis (67’7″)



This chassis mounted aerial platform offers high perfomance, safety and total cost of ownership (TCO). Principally produced for professionals renters, this telescopic platform reveal an excellent flexibility for the elevation of people outdoors up to 20.60m high, and until 12.50m of lateral reach. The KT20R is an ideal solution for rental companies, public lighting works or maintenance of electrical networks.

KLUBB Model = KT20R
Max. working height = 20.60m (61’0″)
Max. lateral outreach = 12.50m (41’0″)
Capacity = 300kg, 3 operators, with outriggers
Rotation = 420°

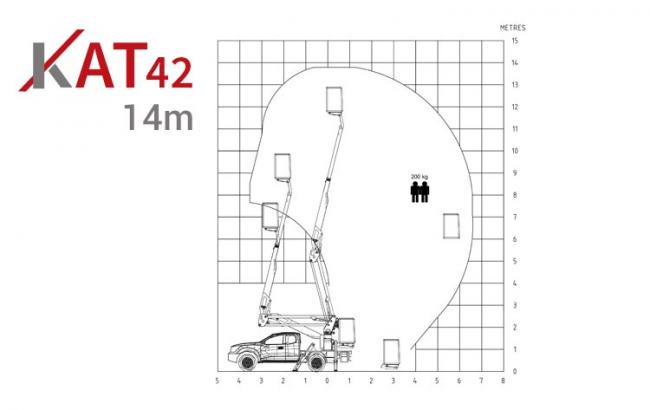

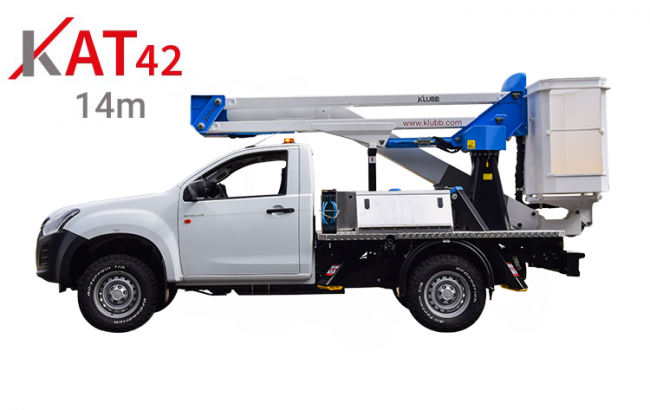

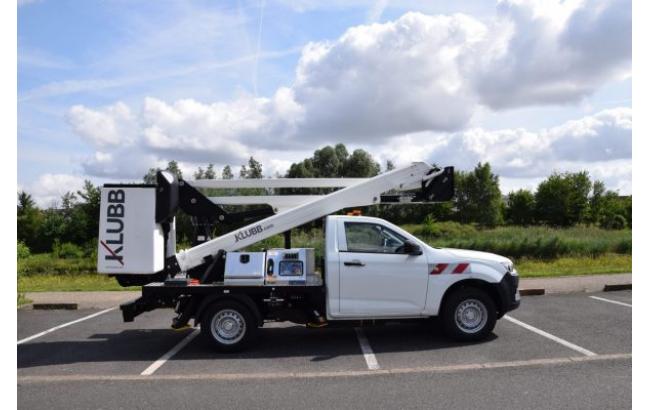

13.20m Articulated aerial platform on PickUp KAT42

14 Meters Bucket Truck Chassis (45’93”)

This articulated platform was designed to be able to intervene in extreme environments with difficult access. This pick-up platform is equipped with an articulated boom that allows you to reach a working height of 13.80m and a lateral offset of 6.70m.

KLUBB Model = KAT42
Max. working height = 13.20m (43’4″)
Max. lateral outreach = 6.50m (21’4″)
Capacity = 200kg, 2 operators, with outriggers
Rotation = 360°

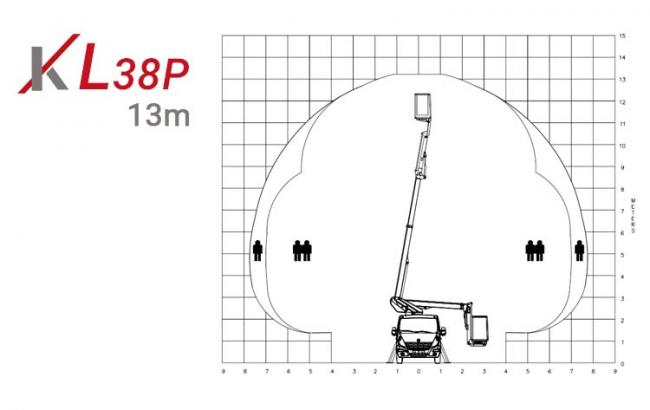

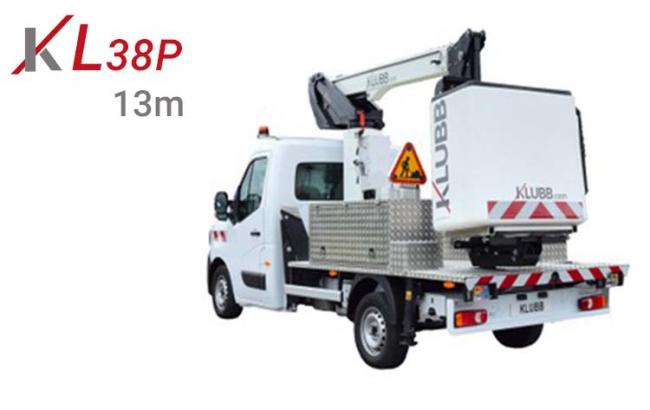

13.20m Telescopic aerial platform on chassis KL38P

13.20 Meters Truck Mounted Platform (42’65”)

This aerial work platform with a working height of 13.20m and an offset of 7.80m on a light truck chassis can be equipped with boxes and sides to load your equipment.

KLUBB Model = KL38P
Max. working height = 13,20
Max. lateral outreach = 7,80
Capacity = 200kg, 2 operators
Rotation = 360°
