Working Height : 20
Offset : 12
Rotation : 360
KLUBB Model = PT 200 JE
Capacity = 300kg

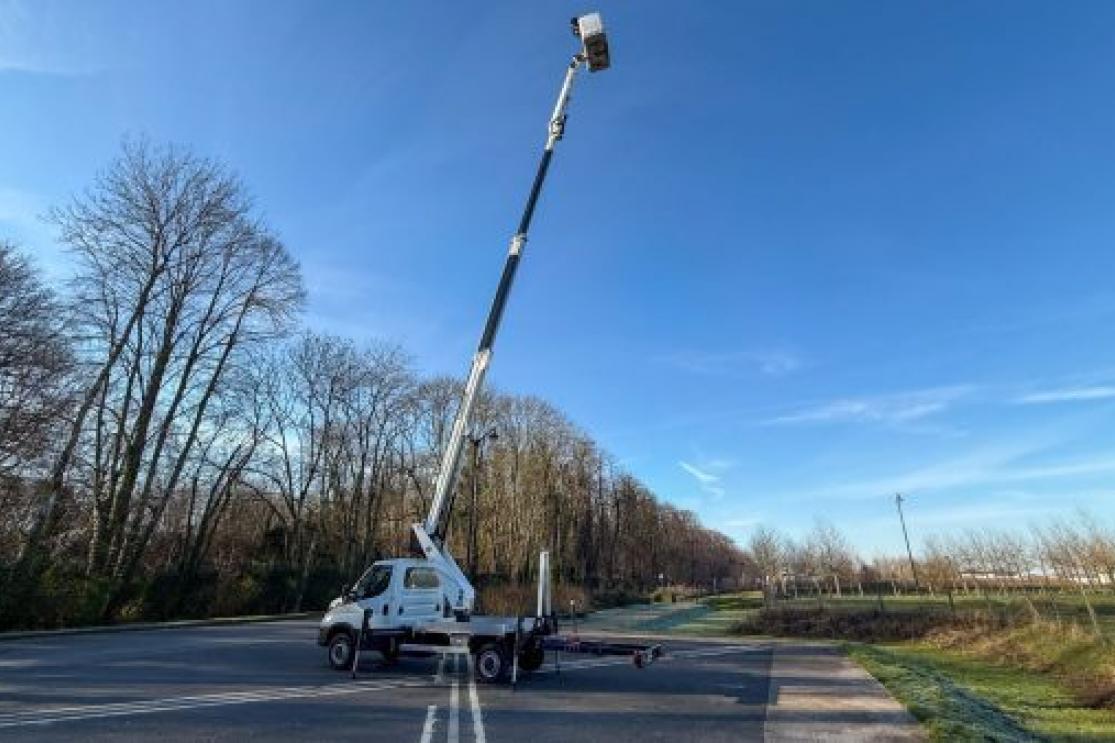

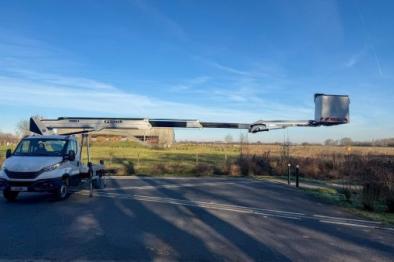

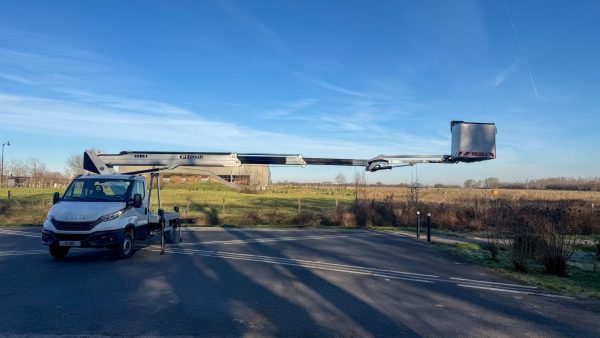

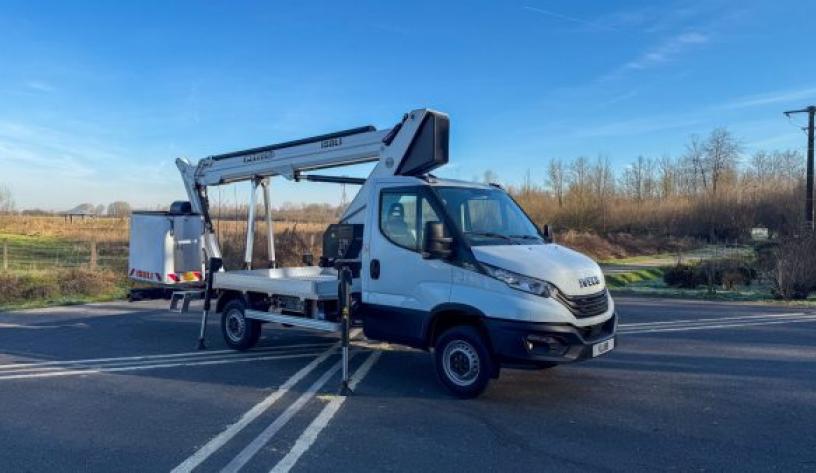

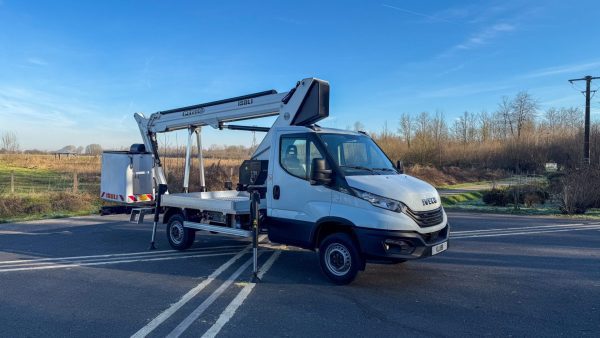

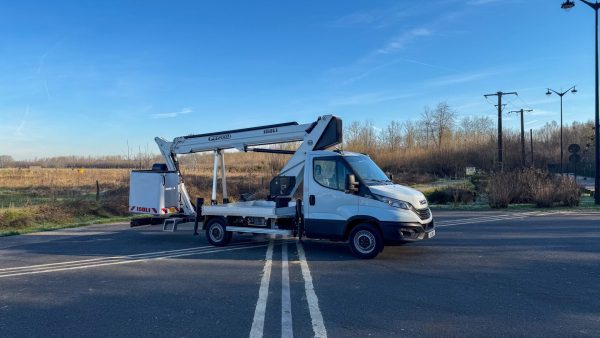

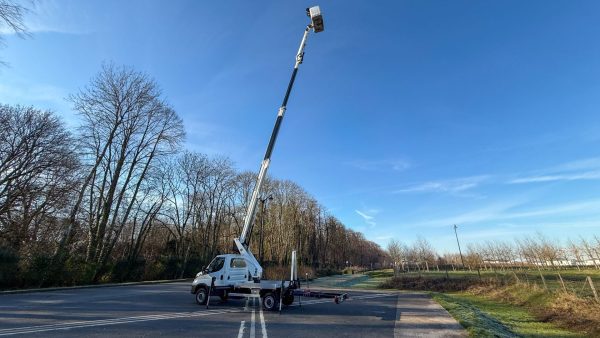

The PT 200JE is an articulating platform specially designed to reach difficult access areas thanks to its articulating jib. With a working height of 20 metres and an outreach of up to 13 metres, it adapts perfectly to various applications, whether for rental, public lighting maintenance, Christmas decorations or tree pruning. Its four hydraulic stabilisers, combined with an HE-H multi-stabilisation system, ensure optimal stability, even on cluttered terrain.
Its basket, capable of accommodating two operators and supporting up to 300 kg (270 kg on fibre surfaces), offers a secure working space and allows tools and equipment to be easily brought on board. Reliable and efficient, the PT 200JE stands out as an essential solution for height interventions requiring precision and flexibility.

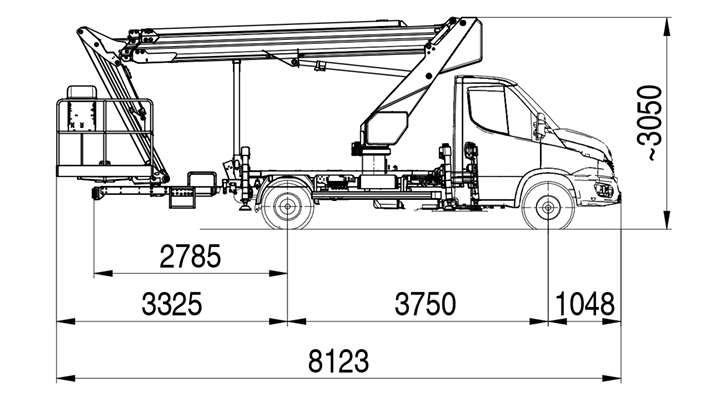

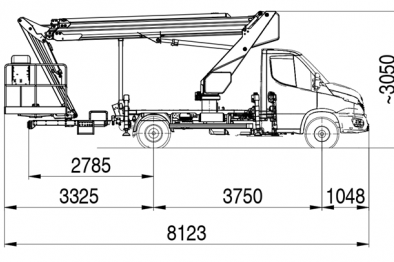

Technical specifications

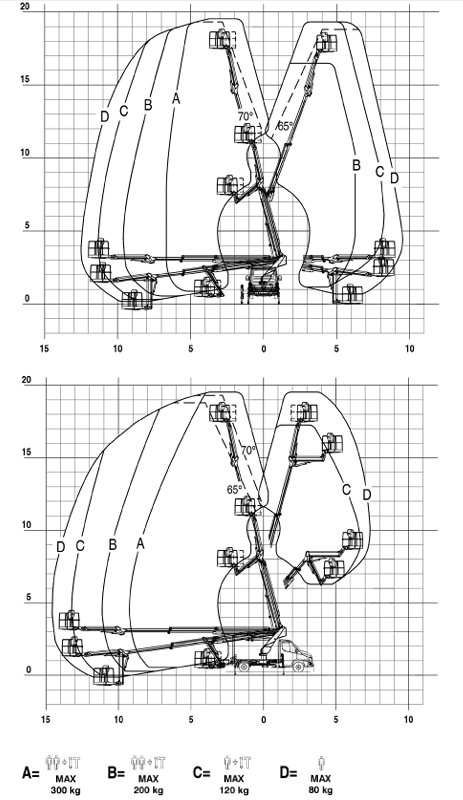

- Max. working height : 20m (65'61")
- Max. working outreach : 12m (39'37")
- Boom rotation : 360°
- Max. working load : 300Kg (270Kg on fibre surface)
- Max. platform height : 18m (59'05")
- Outriggers : 4 HE-H
- Basket size : 125 x 75 x 110 cm
- Chassis weight : ≤ 3.5 T
- Arm : Telescopic and jib
- Engine : Diesel
- IPAF catgory : 1b
- Lifting mechanism : hydraulic
- Operators : 2
Standard features
- Nacelle engine stop/start
- 2 stabilisation modes
- Power-assisted turret and basket centring
- Emergency circuit on manual pump
- Proportional controls on all movements
- Secure access to work platform
- Conveyor chain for hoses inside the mast for optimum protection
- Rigid PVC protection for overhead controls
- 220V circuit in nacelle

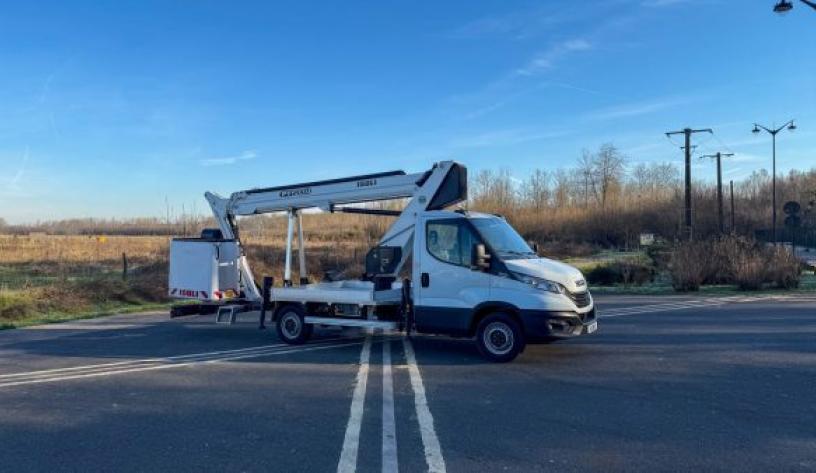

Examples of vehicles
- Iveco Daily 35S
- Isuzu M21
"green pack"
The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
