(11) : RESULTS FOR "Working Height : 11,1m to 13m"

Results in products :

KL21B Aerial Work Platform on a Van

11 Meters Van Mounted Boom Lift (36′)

One of the main features of this platform mounted on a mini van is its small size that allows working at height in tight spaces, especially in the city. Despite its compactness, this aerial lift mounted on a mini van will surprise you with its storage capacity

KLUBB Model = KL21B
Max. working height = 11.40m (36’08”)
Max. lateral outreach = 6.80m (22’30”)
Capacity = 120kg, 1 operator, no outriggers
Rotation = 360°

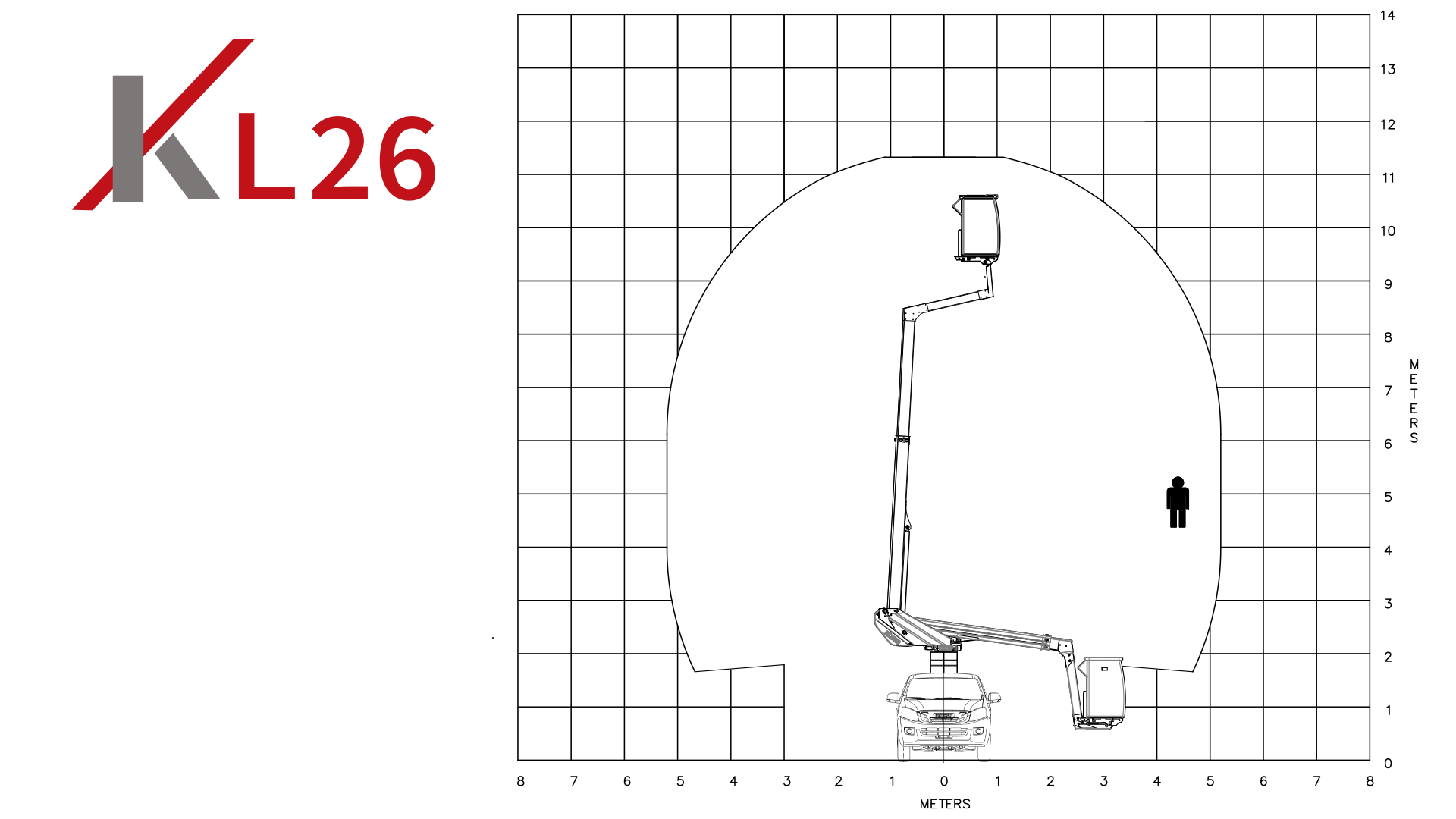

KL26 Aerial Work Platform on a Van

12 Meters Van Mounted Boom Lift (39’37”)

Very compact, this trunk van is specifically designed for urban interventions. Existing with a basket for 1 or 2 persons, this aerial work platform mounted on a KL26 truncated van allows a reach of 11,80m and an offset of 6,80m.

KLUBB Model = KL26
Max. working height = 11.80m (38’71”)
Max. lateral outreach = 6.80m (22’31”)
Capacity = 120kg, 1 operator, no outriggers
Rotation = 360°


KL32 Aerial Work Platform on a Van

12.50 Meters Van Mounted Boom Lift (41’01”)

The KL32 van mounted lift is made for many inventions such as street lighting maintenance, pruning works but it can also be adapted to the maintenance of telecom networks. This aerial lift has a additional payload of 140kg.

KLUBB Model = KL32
Max. working height = 12.50m (41’01”)
Max. lateral outreach = 7.30m (23’95”)
Capacity = 120kg, 1 operator, no outriggers
Rotation = 360°


KL26 Aerial Platform mounted on a pick-up Platform on a TOYOTA HiLux

11 Meters Bucket Truck Chassis (36’09”)

The K26 telescopic aerial platform mounted on a Toyota HiLux pick-up is designed to work on difficult surfaces. This telescopic boom lift mounted on a pick-up can work up to 11.30m high with an offset of 5m.

KLUBB Model = K26 HiLux
Max. working height = 11.30m (36’08”)
Max. lateral outreach = 5 m (16’40”)
Capacity = 120kg, 1 operator, no outriggers
Rotation = 360°


KL26 Aerial Platform on an Isuzu DMAX

10.50 Meters Bucket Truck Chassis (36’09”)

The KL26 pick-up platform on an Isuzu DMAX is a compact model with a maximum working height of 11.30 m and a lateral offset of 5.20 m.

KLUBB Model = KL26 DMAX
Max. working height = 11.30m (37’07”)
Max. lateral outreach = 5.20m (16’40”)
Capacity = 120kg, 1 operator, no outriggers
Rotation = 360°


K26 Aerial Work Platform

12 Meters Bucket Truck Chassis (39’37”)

With its telescopic boom that can reach 11.80m working height and a lateral outreach of 6.80m, the K26 Chassis mounted Aerial Access Platforms are particularly recommended for advertising installers but also for maintenance of street lighting and overhead networks.

KLUBB Model = K26
Max. working height = 11.80m (38’71”)
Max. lateral outreach = 6.80m (22’31”)
Capacity = 120kg, 1 operator, no outriggers 2 men basket with outriggers (option)
Rotation = 360°


K32 Chassis-mounted Aerial Access platforms

13 Meters Bucket Truck Chassis (42’65”)

Designed for work at height such as the maintenance of public lighting, the K32 lightweight van can also be adapted to the maintenance of telecom networks.

KLUBB Model = K32
Max. working height = 12.50m (41’01”)
Max. lateral outreach = 7.30m (23’95”
Capacity = 120kg, 1 operator, no outriggers 2 men basket with outriggers (option)
Rotation = 360°


K32 GAZ Chassis-mounted Aerial Access platforms

10.5 Meters Bucket Truck Chassis (42’65”)

Hydrogen is a track chosen by several car manufacturers and which seems interesting to us....

KLUBB Model = K32GAZ
Max. working height = 12.50m (41’01”)
Max. lateral outreach = 7.30m (23’95”)
Capacity = 120kg, 1 operator, no outriggers 2 men basket with outriggers (option)
Rotation = 360°


KL26 GAZ Chassis-mounted on an IVECO DAILY

12 Meters Bucket Truck Chassis (39’37”)

With its telescopic boom that can reach 11.80m working height and a lateral outreach of 6.80m, the KL26 Chassis mounted Aerial Access Platforms are particularly recommended for advertising installers but also for maintenance of street lighting and overhead networks.

KLUBB Model = KL26 GAZ
Max. working height = 11.80m (38’71”)
Max. lateral outreach = 6.80m (22’31”)
Capacity = 120kg, 1 operator, no outriggers 2 man basket with outriggers (optional)
Rotation = 360°


100% ELECTRIC KL21B Van Mounted Aerial Platforms on an e-Expert

11.40 Meters Van Mounted Boom Lift (39')




This 100% electric platform van is a very powerful vehicle with its 11.40m working height and offset of 6.40m. Very compact, it has been designed to operate in tight spaces while maintaining adequate storage capacity and payload to transport tools and equipment. Easy to park and position on the road in order to not obstruct traffic, this electric platform van is a real asset for working in the city. It is also possible to use it for indoor operations since this machine does not emit polluting gases.Regarding autonomy, it can perform 32 aerial platform cycles and 230km (*) WLTP on the road, which represents an excellent solution for all companies who want to invest in environmentally friendly solutions.

KLUBB Model = KL21B
Max. working height = 11.40m (37’40”)
Max. lateral outreach = 6.40m (23′)
Capacity = 120kg, 1 operator, no outriggers
Rotation = 360°


Electric KL26 Aerial Platform on a Master E-Tech

12 Meters Van Mounted Boom Lift (39’37”)

Very compact, this van mounted aerial platform is specifically designed for urban interventions. This eco-friendly platform mounted on a KL26 truncated van allows a reach of 11,80m and an offset of 6,80m.

KLUBB Model = KL26
Max. working height = 11.80m (38’71”)
Max. lateral outreach = 6.80m (22’31”)
Capacity = 120kg, 1 operator, no outriggers
Rotation = 360°
