Working Height : 12.50
Offset : 7.30
Rotation : 360
KLUBB Model = KL32
Capacity = 120Kg

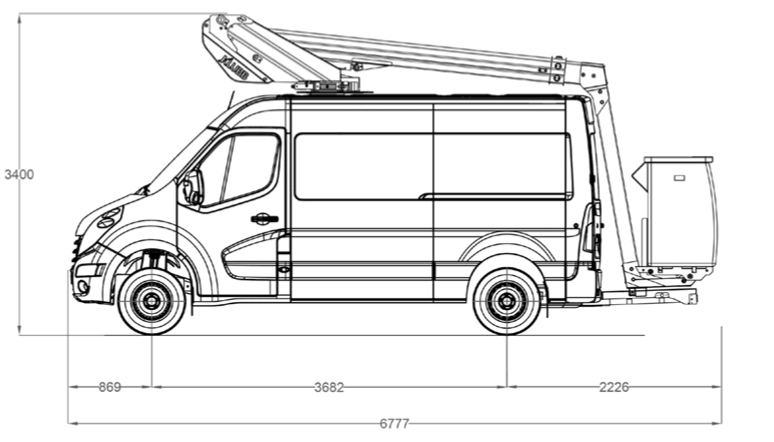

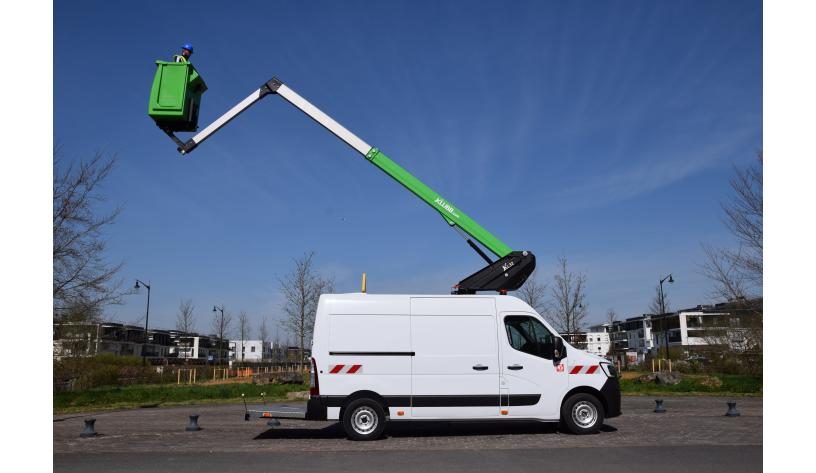

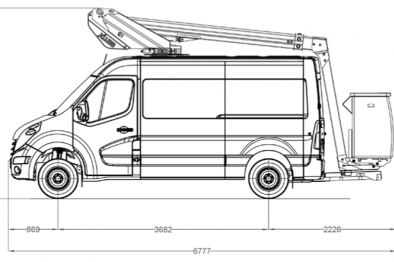

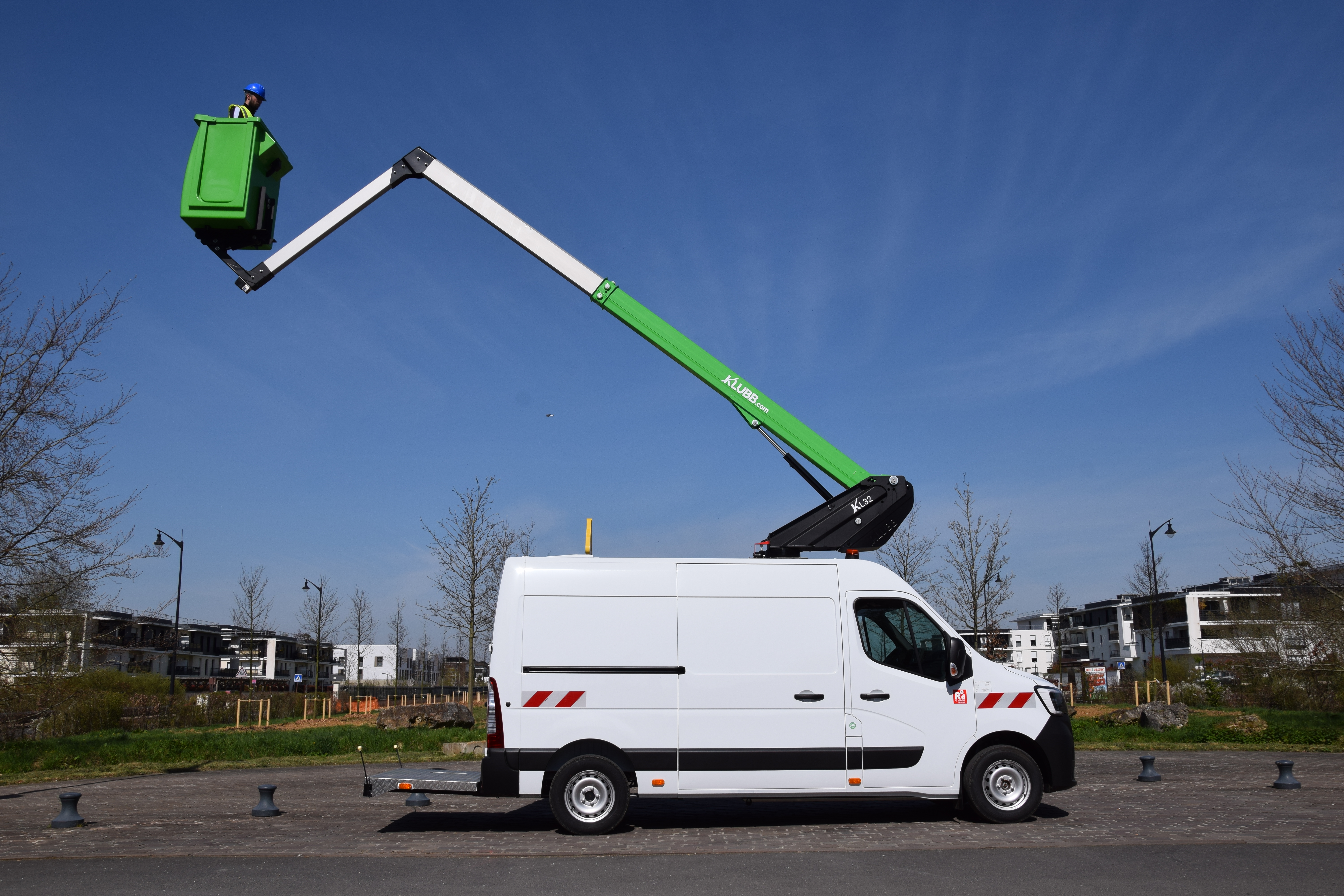

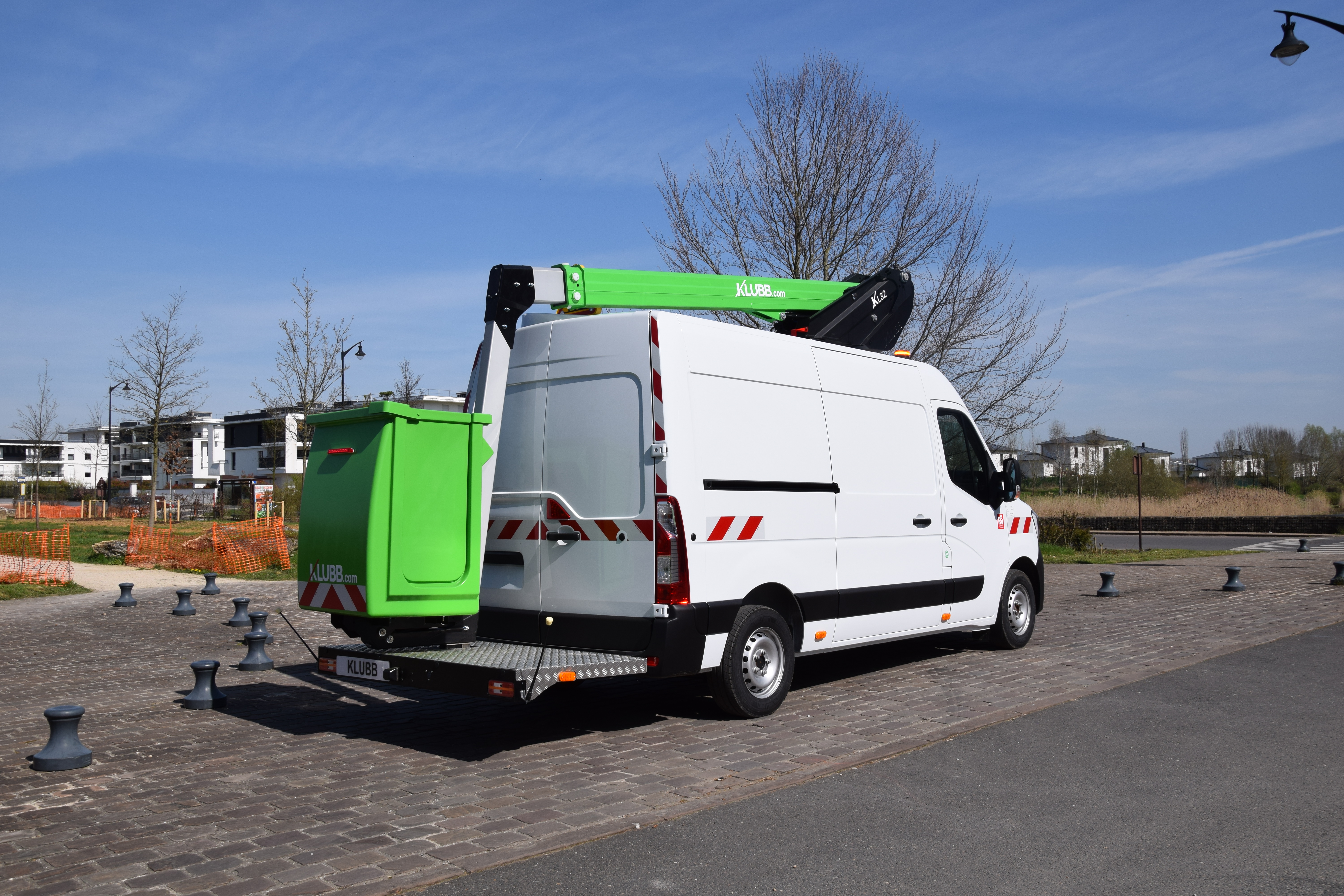

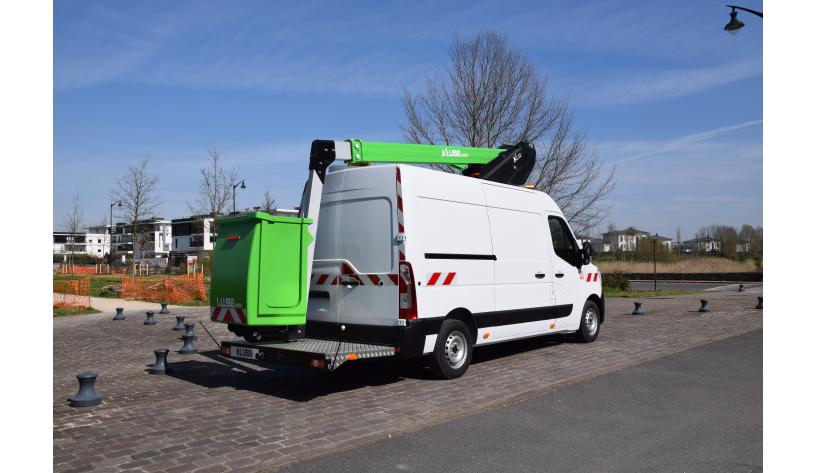

The KL32 is a bucket van with a telescopic arm offering a reach of up to 12.5 metres and an offset of 7.3 metres, ideal for maintaining telecommunications infrastructures or public lighting.
Its distinctive feature is its generous storage space, turning it into a veritable mobile workshop. In addition to its aerial work platform function, it combines that of a workshop van. Its major advantage lies in its 100% electric operation, offering an environmentallyfriendly fleet of vehicles with no noise and no pollution.
Technical specifications

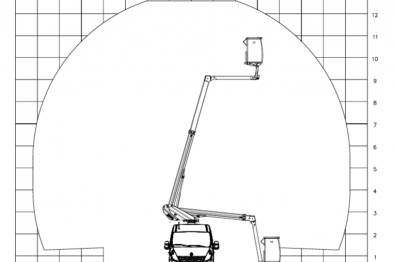

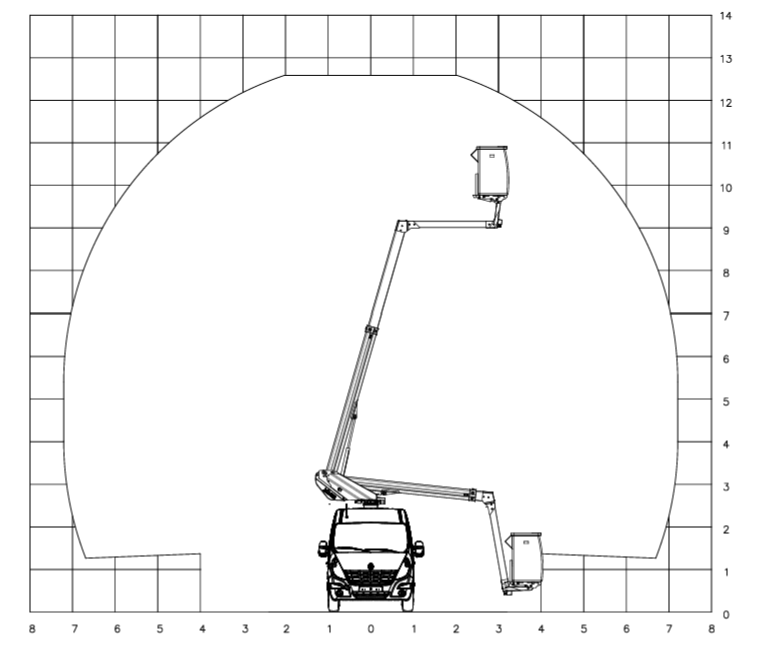

- Max. working height : 12.50m (41’01”)
- Max. working outreach : 7.30m (23’95”)
- Boom rotation : 360°
- Max. working load : 120Kg
- Max. platform height : 9,80m (32'15")
- Outriggers : no outriggers
- Basket size : 86 x 72 x 110 cm
- Chassis weight : ≤ 3.5 T
- Arm : Telescopic
- Engine : Electric
- IPAF catgory : 1b
- Lifting mechanism : hydraulic
- Operators : 1
Standard features
- Back-up circuit on independent electric pump with all functions in nacelle for maximum safety
- Proportional controls on all movements
- Secure access to work platform
- Conveyor chain for hoses inside the mast for optimum protection
- Aluminium top mast for maximum stability
- Reinforced suspension
Examples of vehicles
- Renault Master L2H2 e-Tech
"green pack"
The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
