(7) : RESULTS FOR "Offset : 4m to 5m"

10m Telescopic aerial platform on Nissan e-NV200 K20

10 Meters Electric Van Mounted Boom Lift (32’81”)

The K20 is an electric aerial platform mounted on a Nissan e-NV200. It has been designed to provide its users with an environmentally friendly, compact machine which allows operation without noise or pollution.

KLUBB Model = K20 electric
Max. working height = 10m (32’81”)
Max. lateral outreach = 5m (16’40”)
Capacity = 120kg, 1 man basket, no outriggers
Rotation = 420°

10m Telescopic aerial platform on Goupil G4 K20

10 Meters Bucket Truck Chassis (32’10”)

Fully electric, the K20 is an eco-friendly zero emission aerial work platform. It is mounted on a electric Goupil G4 and can reach 10.10m working height and 4.10m offset. Exceptional features for its size!

KLUBB Model = K20 Goupil G4
Max. working height = 10.10m (33’2″)
Max. lateral outreach = 4.10m (13’5″)
Capacity = 120kg, 1 operator, 2 outriggers
Rotation = 420°

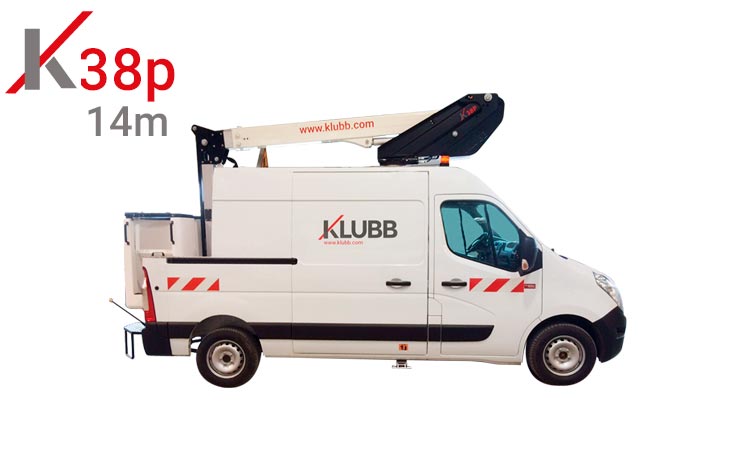

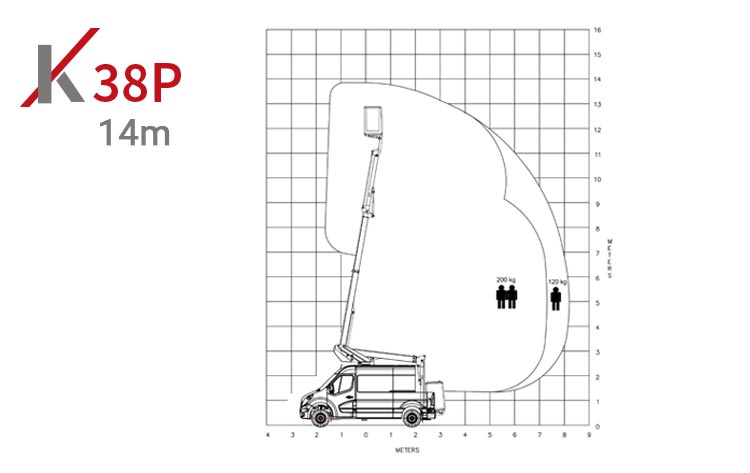

13.80m Telescopic aerial platform on Renault Trafic KL38P

14 Meters Van Mounted Boom Lift (45’93”)







Designed with the latest generation swing arm, this compact trunk van lift model is a real asset for urban work. Its exceptional performance makes it a perfect solution for all pruning work, electrics, sign installation or even building maintenance/ cleaning.

KLUBB Model = K38P
Max. working height = 13.80m (45’28”)
Max. lateral outreach = 8.20m (26’90”), 1 operator
Capacity = 200kg, 2 operators, with outriggers
Rotation = 360°

10m Telescopic aerial platform on Isuzu D-Max K20

10 Meters Bucket Truck Chassis (32’10”)

This platform on pick-up with a deported turret is very compact and has been designed to work in areas difficult to access in any kind of environment (cities, deserts, mountains…). With a working height of 10.2m and an outreach of 5m, it’s the perfect too

KLUBB Model = K20 D-MAX
Max. working height = 10.30m (33’10”)
Max. lateral outreach = 4.80m (15’9″)
Capacity = 120kg, 1 operator
Rotation = 420°

14m Telescopic aerial platform on Renault Trafic KL38P

14 Meters Van Mounted Boom Lift (45’93”)

Designed with the latest generation swing arm, this trunk van lift model is a real asset for demanding customers with high storage capacity requirements. Its exceptional performance makes it a perfect solution for all pruning work, electrics, sign installation or even building maintenance/ cleaning.

KLUBB Model = KL38P
Max. working height = 13.80m (45’28”)
Max. lateral outreach = 8.20m (26’90”), 1 operator
Capacity = 200kg, 2 operators, with outriggers
Rotation = 360°

16m telescopic aerial platform on Iveco Daily PT160E

This chassis mounted aerial platform offer high performance, safety and total cost of ownership (TCO). These products will offer high performance up to 16m high, and until 10.50m of lateral reach. The PT160 E is an ideal solution for rental companies, public lighting works or maintenance of electrical networks.

KLUBB Model = PT160E
Max. working height = 16
Max. lateral outreach = 10.50
Rotation = 360°

24m Articulated aerial platform on Iveco Daily PNT240

24 Meters Bucket Truck Chassis (78'7")

This chassis mounted aerial platform offer high performance, safety and total cost of ownership (TCO). These products will offer high performance up to 24m high, and until 12m of lateral reach. The PNT240 is an ideal solution for rental companies, public lighting works or maintenance of electrical networks.

KLUBB Model = PNT 240
Max. working height = 24
Max. lateral outreach = 12
Capacity = 250
Rotation = 360°
