(18) : RESULTS FOR "Offset : 5,1m to 7,5m"
Results in products :

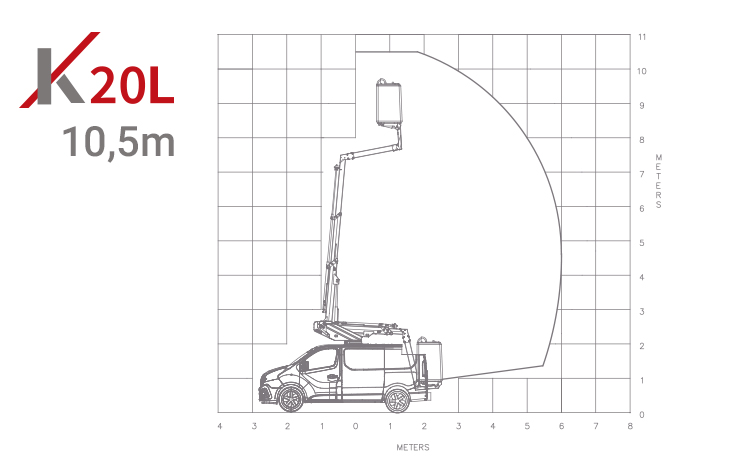

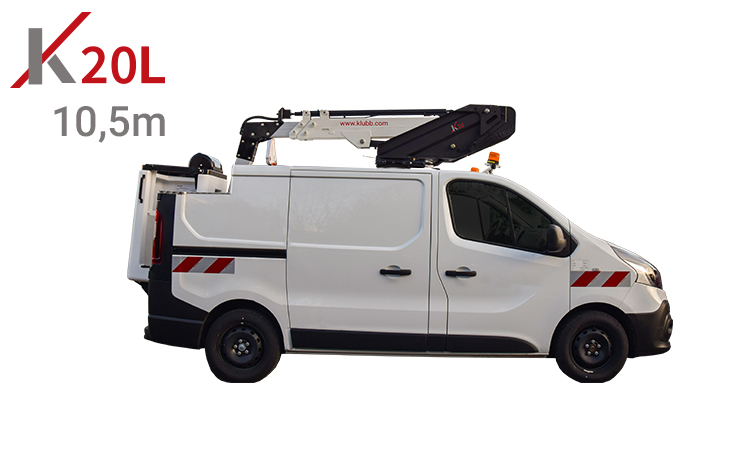

K20L Aerial platform mounted on a Cutaway Van
10.50 Meters Van Mounted Boom Lift (32’81”)
Thanks to a very light aluminum arm, the Klubb K20L aerial platform is designed to be mounted on very small vehicles. Moreover, it is even compacter as it is built on a cutaway Van, like Peugeot Expert or Renault Trafic.
KLUBB Model = K20L
Max. working height = 10.50m (32’81”)
Max. lateral outreach = 6m (19’7″)
Capacity = 120kg, 1 man basket, no outriggers
Rotation = 420°
KL21B Aerial Work Platform on a Van
11 Meters Van Mounted Boom Lift (36′)
One of the main features of this platform mounted on a mini van is its small size that allows working at height in tight spaces, especially in the city. Despite its compactness, this aerial lift mounted on a mini van will surprise you with its storage capacity
KLUBB Model = KL21B
Max. working height = 11.40m (36’08”)
Max. lateral outreach = 6.80m (22’30”)
Capacity = 120kg, 1 operator, no outriggers
Rotation = 360°

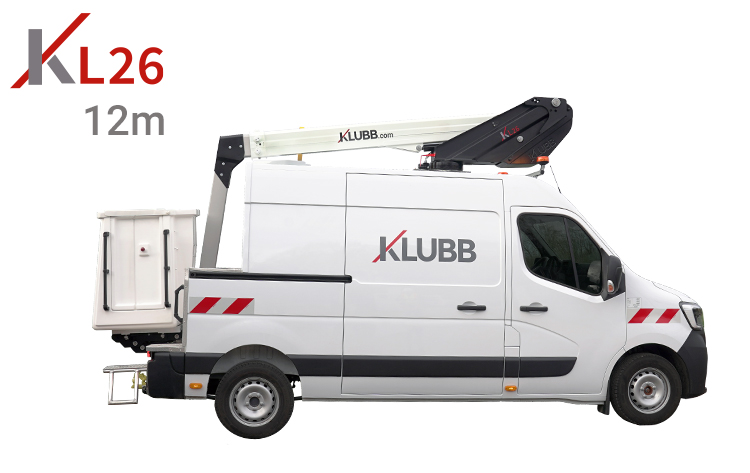

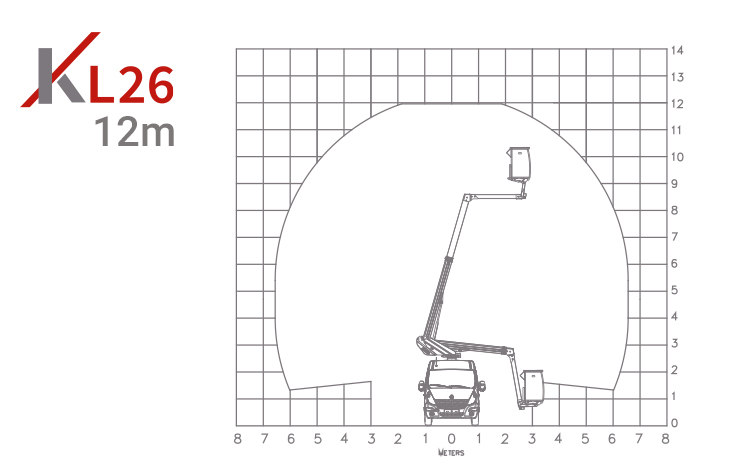

KL26 Aerial Work Platform on a Van
12 Meters Van Mounted Boom Lift (39’37”)
Very compact, this trunk van is specifically designed for urban interventions. Existing with a basket for 1 or 2 persons, this aerial work platform mounted on a KL26 truncated van allows a reach of 11,80m and an offset of 6,80m.
KLUBB Model = KL26
Max. working height = 11.80m (38’71”)
Max. lateral outreach = 6.80m (22’31”)
Capacity = 120kg, 1 operator, no outriggers
Rotation = 360°

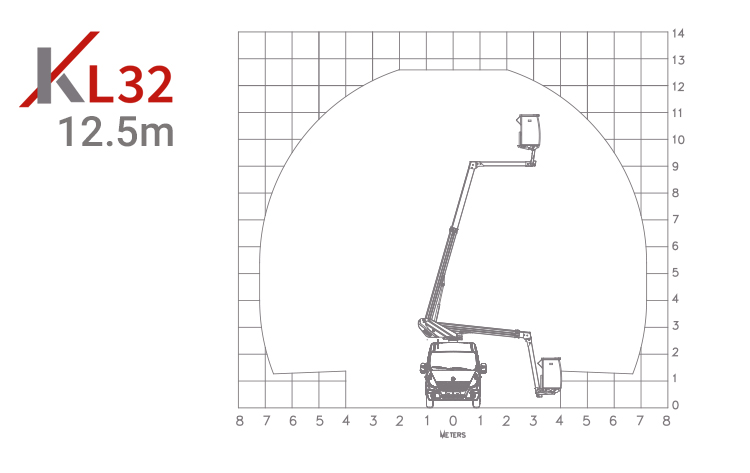

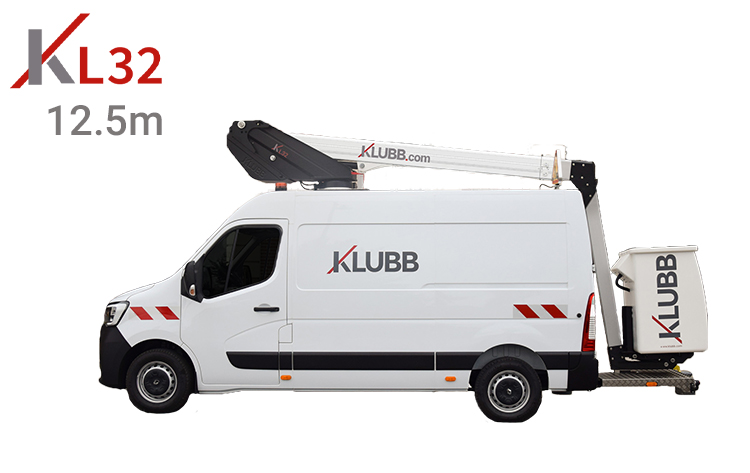

KL32 Aerial Work Platform on a Van
12.50 Meters Van Mounted Boom Lift (41’01”)
The KL32 van mounted lift is made for many inventions such as street lighting maintenance, pruning works but it can also be adapted to the maintenance of telecom networks. This aerial lift has a additional payload of 140kg.
KLUBB Model = KL32
Max. working height = 12.50m (41’01”)
Max. lateral outreach = 7.30m (23’95”)
Capacity = 120kg, 1 operator, no outriggers
Rotation = 360°

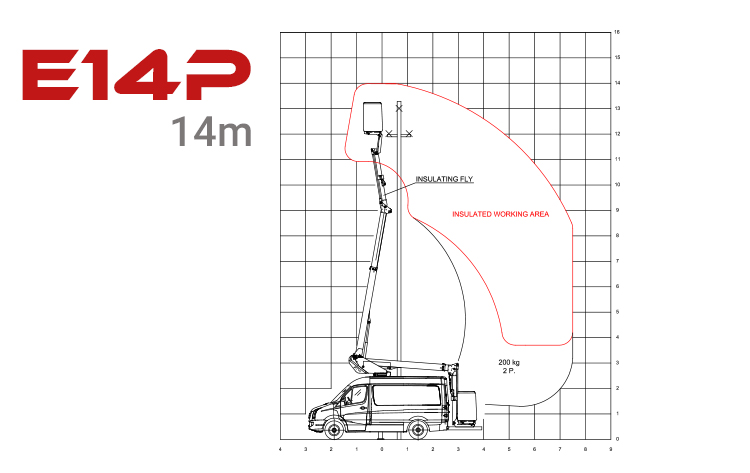

E14P Insulated Aerial Work Platform on a Van
14 Meters Van Mounted Boom Lift (45’11”)
Designed with the EGI-Klubb Group latest generation of insulated arms, this compact van lift model is insulated up to 46 kV. This a real asset for urban work on distribution lines …
KLUBB Model = E14P
Max. working height = 14m (45’11”)
Max. lateral outreach = 7.50m (24’7″)
Capacity = 200kg, 2 operators, with outriggers
Rotation = 360°
KL26 Aerial Platform mounted on a pick-up Platform on a TOYOTA HiLux
11 Meters Bucket Truck Chassis (36’09”)
The K26 telescopic aerial platform mounted on a Toyota HiLux pick-up is designed to work on difficult surfaces. This telescopic boom lift mounted on a pick-up can work up to 11.30m high with an offset of 5m.
KLUBB Model = K26 HiLux
Max. working height = 11.30m (36’08”)
Max. lateral outreach = 5 m (16’40”)
Capacity = 120kg, 1 operator, no outriggers
Rotation = 360°

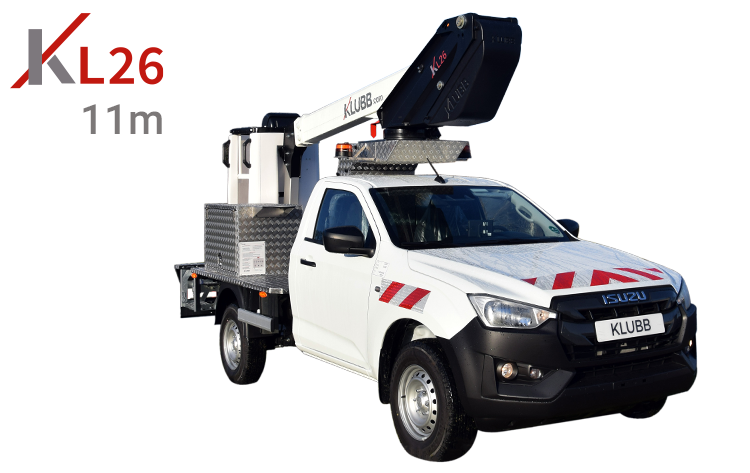

KL26 Aerial Platform on an Isuzu DMAX
10.50 Meters Bucket Truck Chassis (36’09”)
The KL26 pick-up platform on an Isuzu DMAX is a compact model with a maximum working height of 11.30 m and a lateral offset of 5.20 m.
KLUBB Model = KL26 DMAX
Max. working height = 11.30m (37’07”)
Max. lateral outreach = 5.20m (16’40”)
Capacity = 120kg, 1 operator, no outriggers
Rotation = 360°
K26 Aerial Work Platform
12 Meters Bucket Truck Chassis (39’37”)
With its telescopic boom that can reach 11.80m working height and a lateral outreach of 6.80m, the K26 Chassis mounted Aerial Access Platforms are particularly recommended for advertising installers but also for maintenance of street lighting and overhead networks.
KLUBB Model = K26
Max. working height = 11.80m (38’71”)
Max. lateral outreach = 6.80m (22’31”)
Capacity = 120kg, 1 operator, no outriggers 2 men basket with outriggers (option)
Rotation = 360°

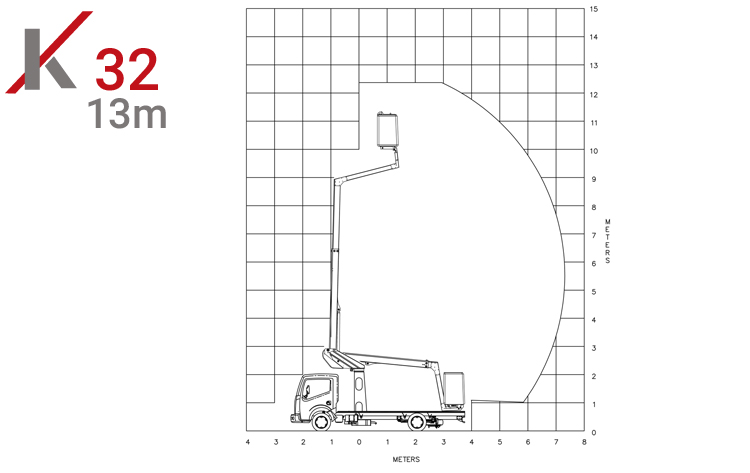

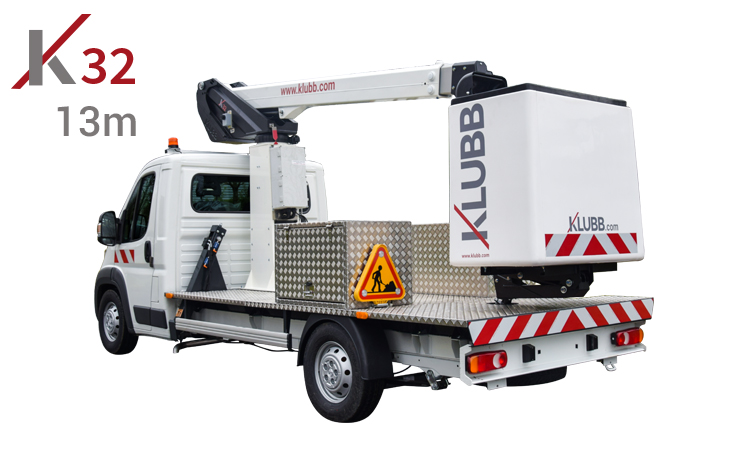

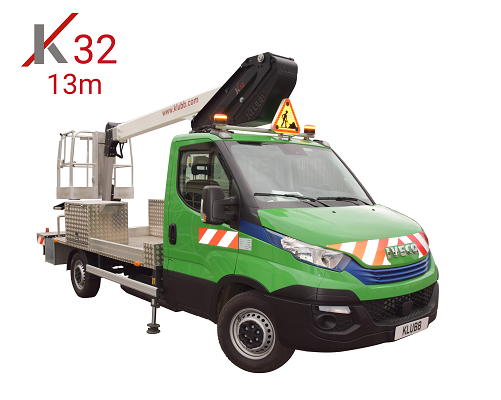

K32 Chassis-mounted Aerial Access platforms
13 Meters Bucket Truck Chassis (42’65”)
Designed for work at height such as the maintenance of public lighting, the K32 lightweight van can also be adapted to the maintenance of telecom networks.
KLUBB Model = K32
Max. working height = 12.50m (41’01”)
Max. lateral outreach = 7.30m (23’95”
Capacity = 120kg, 1 operator, no outriggers 2 men basket with outriggers (option)
Rotation = 360°
K32 GAZ Chassis-mounted Aerial Access platforms
10.5 Meters Bucket Truck Chassis (42’65”)
Hydrogen is a track chosen by several car manufacturers and which seems interesting to us....
KLUBB Model = K32GAZ
Max. working height = 12.50m (41’01”)
Max. lateral outreach = 7.30m (23’95”)
Capacity = 120kg, 1 operator, no outriggers 2 men basket with outriggers (option)
Rotation = 360°

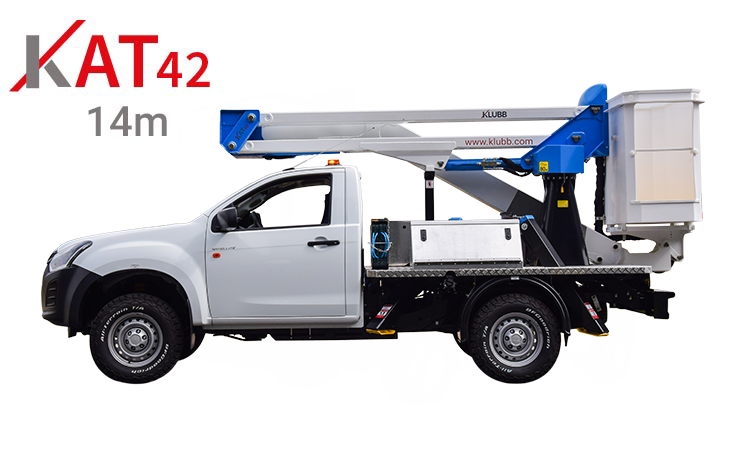

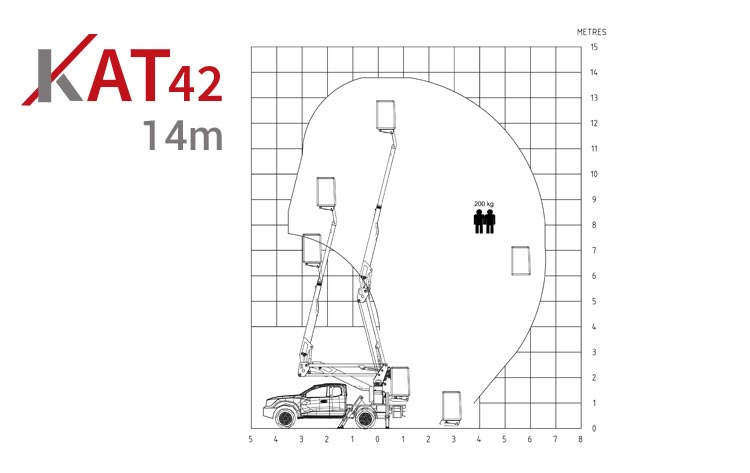

KAT42 Aerial Work Platform
14 Meters Bucket Truck Chassis (45’93”)
This articulated platform was designed to be able to intervene in extreme environments with difficult access. This pick-up platform is equipped with an articulated boom that allows you to reach a working height of 13.80m and a lateral offset of 6.70m.
KLUBB Model = KAT42
Max. working height = 13.20m (43’4″)
Max. lateral outreach = 6.50m (21’4″)
Capacity = 200kg, 2 operators, with outriggers
Rotation = 360°

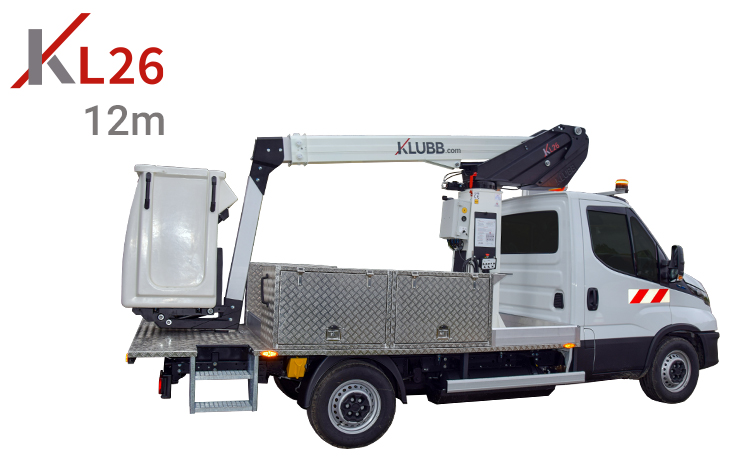

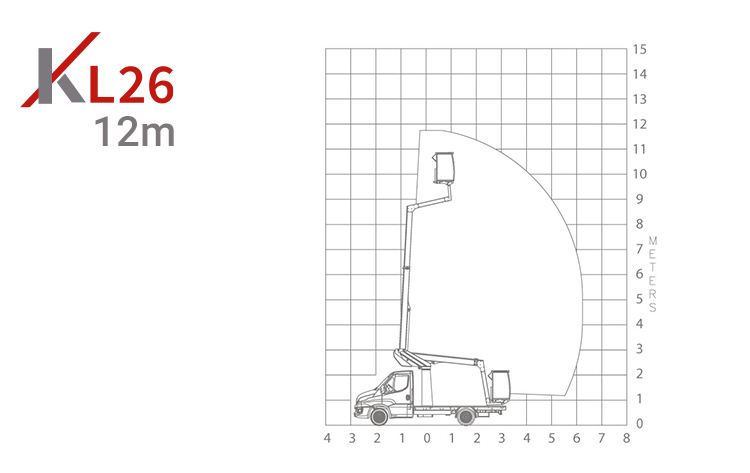

KL26 GAZ Chassis-mounted on an IVECO DAILY
12 Meters Bucket Truck Chassis (39’37”)
With its telescopic boom that can reach 11.80m working height and a lateral outreach of 6.80m, the KL26 Chassis mounted Aerial Access Platforms are particularly recommended for advertising installers but also for maintenance of street lighting and overhead networks.
KLUBB Model = KL26 GAZ
Max. working height = 11.80m (38’71”)
Max. lateral outreach = 6.80m (22’31”)
Capacity = 120kg, 1 operator, no outriggers 2 man basket with outriggers (optional)
Rotation = 360°

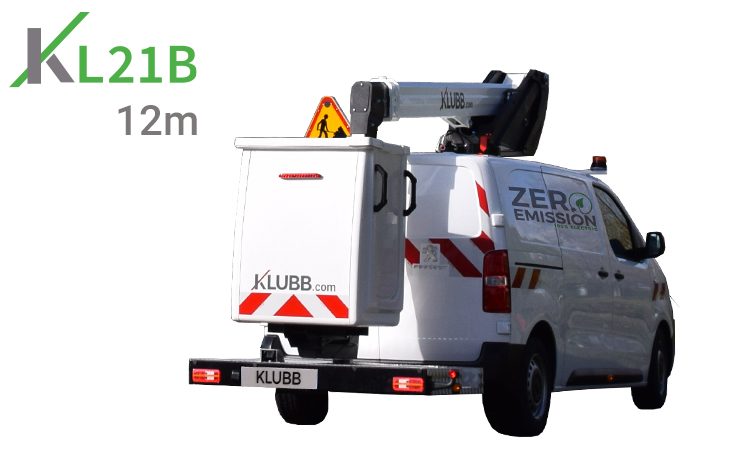

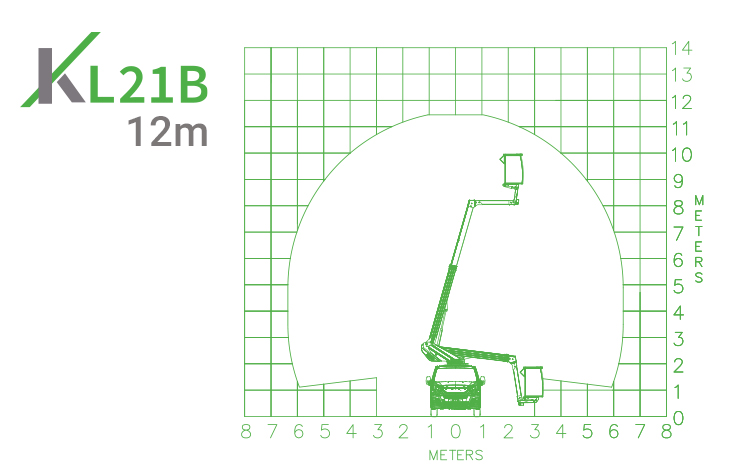

100% ELECTRIC KL21B Van Mounted Aerial Platforms on an e-Expert
11.40 Meters Van Mounted Boom Lift (39')
This 100% electric platform van is a very powerful vehicle with its 11.40m working height and offset of 6.40m. Very compact, it has been designed to operate in tight spaces while maintaining adequate storage capacity and payload to transport tools and equipment. Easy to park and position on the road in order to not obstruct traffic, this electric platform van is a real asset for working in the city. It is also possible to use it for indoor operations since this machine does not emit polluting gases.Regarding autonomy, it can perform 32 aerial platform cycles and 230km (*) WLTP on the road, which represents an excellent solution for all companies who want to invest in environmentally friendly solutions.
KLUBB Model = KL21B
Max. working height = 11.40m (37’40”)
Max. lateral outreach = 6.40m (23′)
Capacity = 120kg, 1 operator, no outriggers
Rotation = 360°

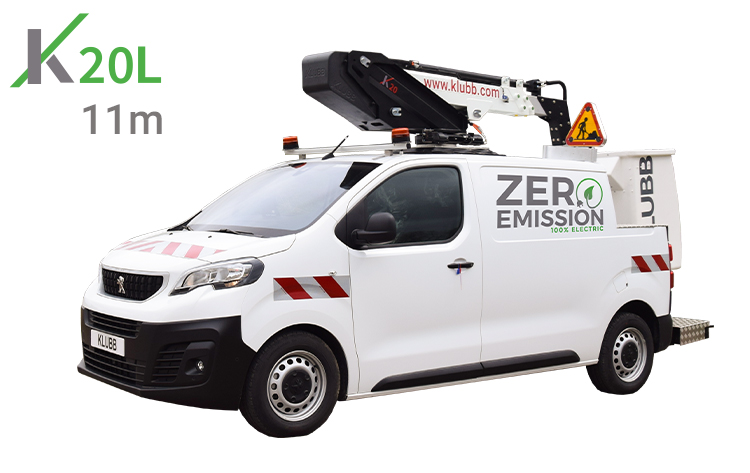

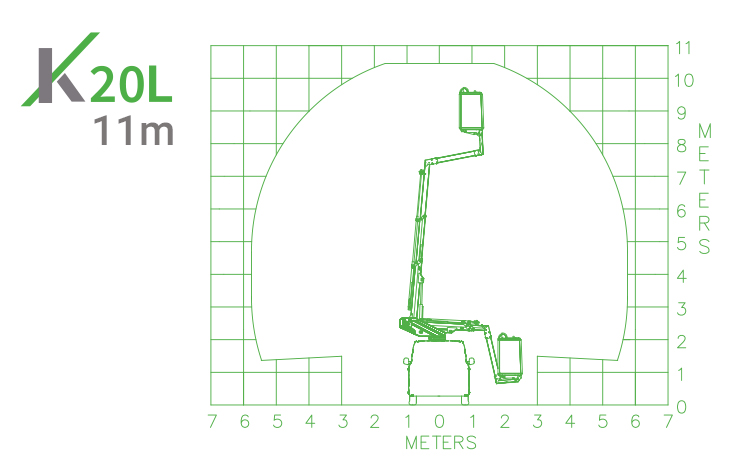

100% ELECTRIC K20L on a cutaway e-Expert
10.50 Meters Van Mounted Boom Lift (39’37”)
XL battery pack equipped (75kwh), this 100% electric aerial work platform on an e-Expert van will surprise you with its 330km WLTP (*) autonomy on the road, but also during intervention with its 32 work cycles in electric mode.
KLUBB Model = K20L 100% electric
Max. working height = 10.5m (39’37”)
Max. lateral outreach = 5.80m (19’68”)
Capacity = 120kg, 1 man basket, no outriggers
Rotation = 420°
K20 Aerial platform on a Maxus eDeliver3
10.50 Meters Electric Van Mounted Boom Lift (34’5”)
The K20 is an electric aerial platform mounted on a Maxus eDeliver3. It has been designed to provide its users with an environmentally friendly, compact machine which allows operation without noise or pollution.
KLUBB Model = K20 electric
Max. working height = 10.50m (34’5”)
Max. lateral outreach = 5.80m (19’0”)
Capacity = 120kg, 1 man basket, no outriggers
Rotation = 360°
KL26 on a hybrids Piaggio Porter NP6
10.70 Meters Bucket Truck Chassis (32’80”)
The KL26 platform on a Piaggio Porter NP6 is a dual fuel model (fuel/LPG and fuel/NGV) with a maximum working height of 10.70 m and a lateral offset of 6 m.
KLUBB Model = KL26 NP6
Max. working height = 10.70m (32’80”)
Max. lateral outreach = 6m (19’68”)
Rotation = 360°

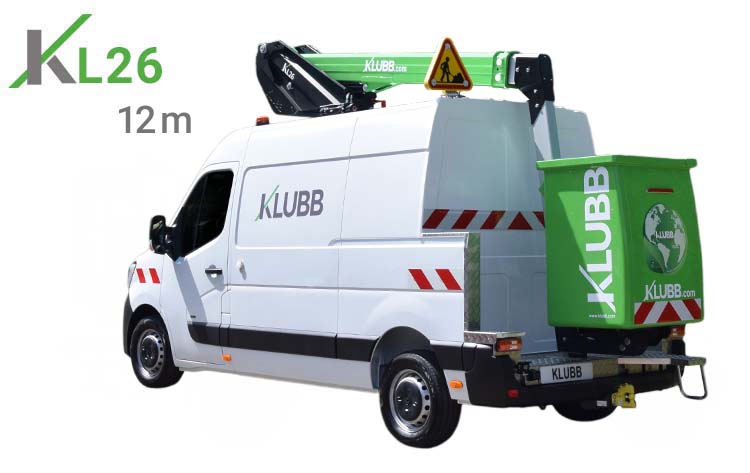

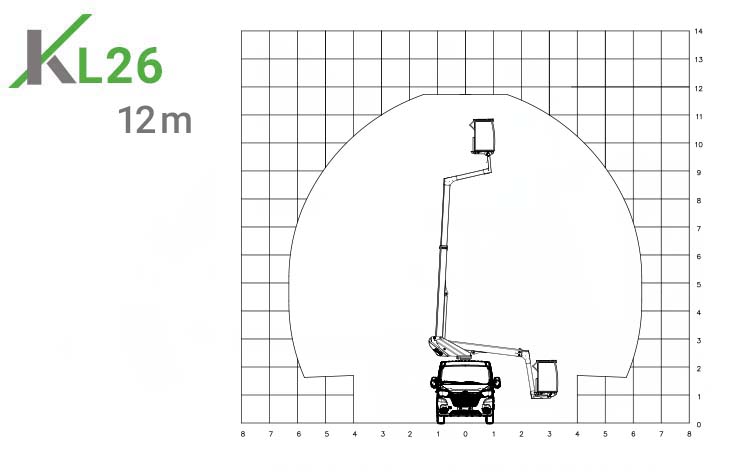

Electric KL26 Aerial Platform on a Master E-Tech
12 Meters Van Mounted Boom Lift (39’37”)
Very compact, this van mounted aerial platform is specifically designed for urban interventions. This eco-friendly platform mounted on a KL26 truncated van allows a reach of 11,80m and an offset of 6,80m.
KLUBB Model = KL26
Max. working height = 11.80m (38’71”)
Max. lateral outreach = 6.80m (22’31”)
Capacity = 120kg, 1 operator, no outriggers
Rotation = 360°

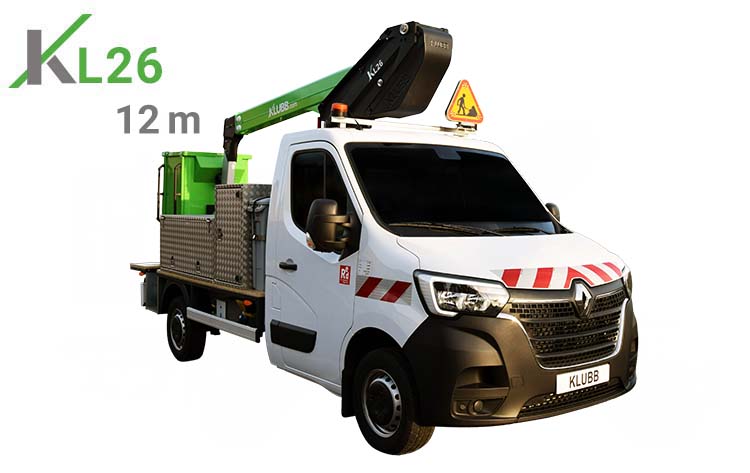

KL26 on a chassis Bamboo
10.70 Meters Bucket Truck Chassis (32’80”)
The KL26 platform on a chassis with its decking made with fibers of bamboo offers a better payload, with a gain of 20kg. Its features are no less impressive with a maximum working height of 10.70 m and a lateral offset of 6 m.
KLUBB Model = KL26
Max. working height = 10.70
Max. lateral outreach = 6
Capacity = 120kg, 1 operator, no outriggers
Rotation = 360°
