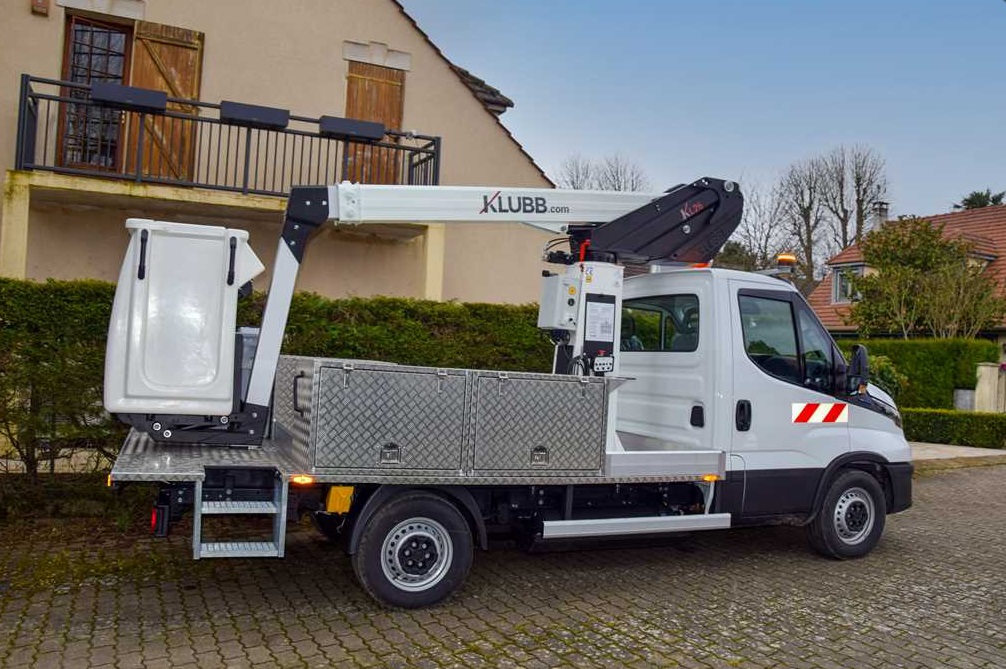

12m Gaz aerial platform on Iveco Daily


icon working height Working Height : 11.80
icon offset Offset : 6.80
icon rotation Rotation : 360

12 Meters Bucket Truck Chassis (39’37”)

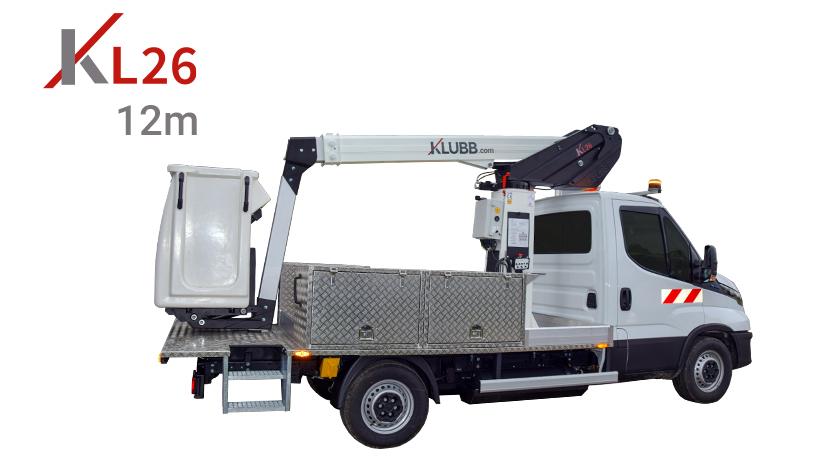

KLUBB Model = KL26 GAZ
Capacity = 120kg, 1 operator, no outriggers 2 man basket with outriggers (optional)

Do you want to improve air quality, reduce fuel costs and reduce your environmental footprint?

Then the KL26 telescopic boom lift on a chassis GAZ truck is for you!

Indeed, these telescopic platforms on truck chassis powered by natural gas have many advantages compared to a diesel version:

– 95% less fine particles and 50% less NOx compared to the Euro VI standard

– A load capacity equal to the diesel version

– Fuel savings up to 35%

– A quieter engine

– No AdBlue® required

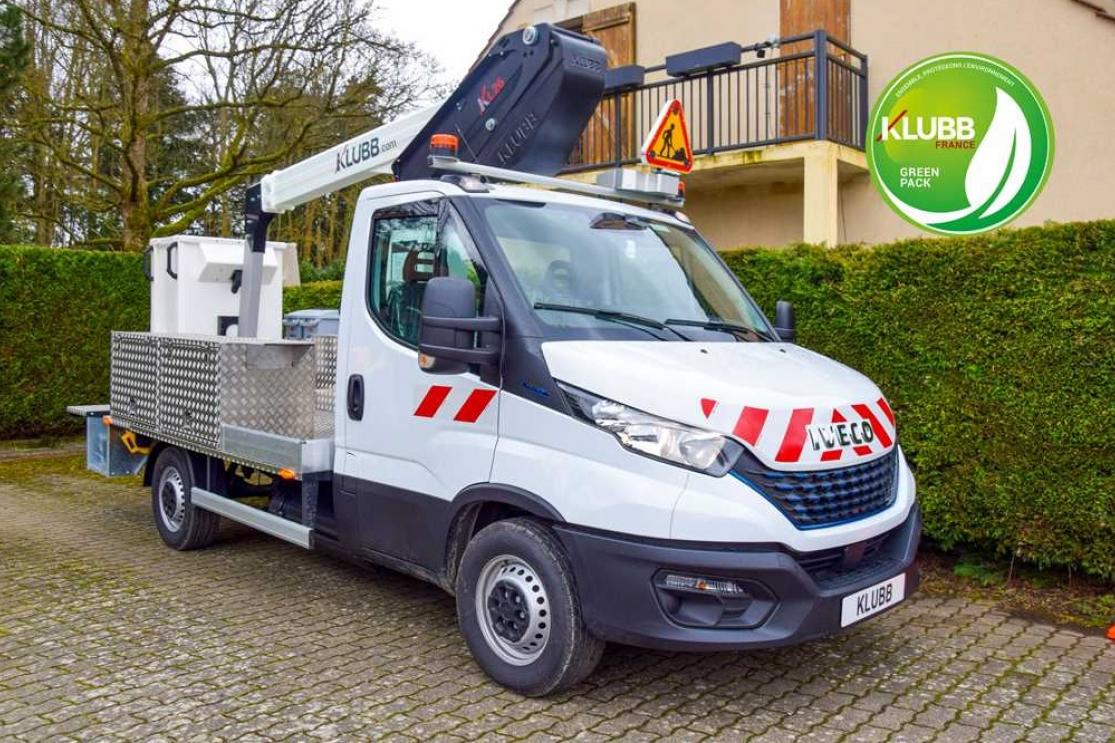

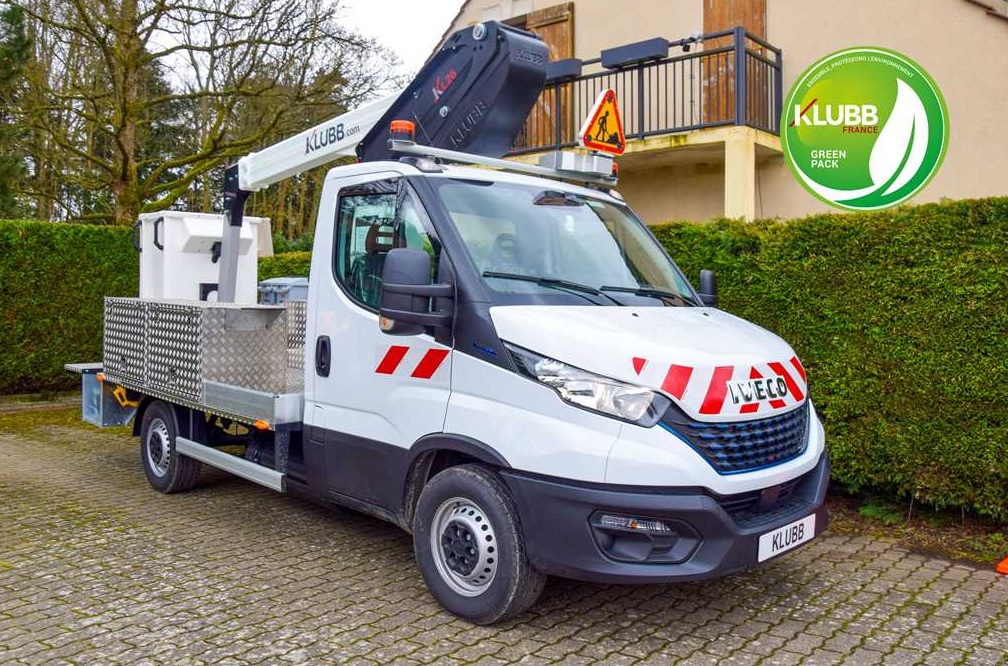

The KL26 model can also be fitted with the “Green Pack” option which allows the aerial work platform to operate with the vehicle’s engine switched off. This allows you to strengthen your fuel savings and further reduce your carbon footprint.

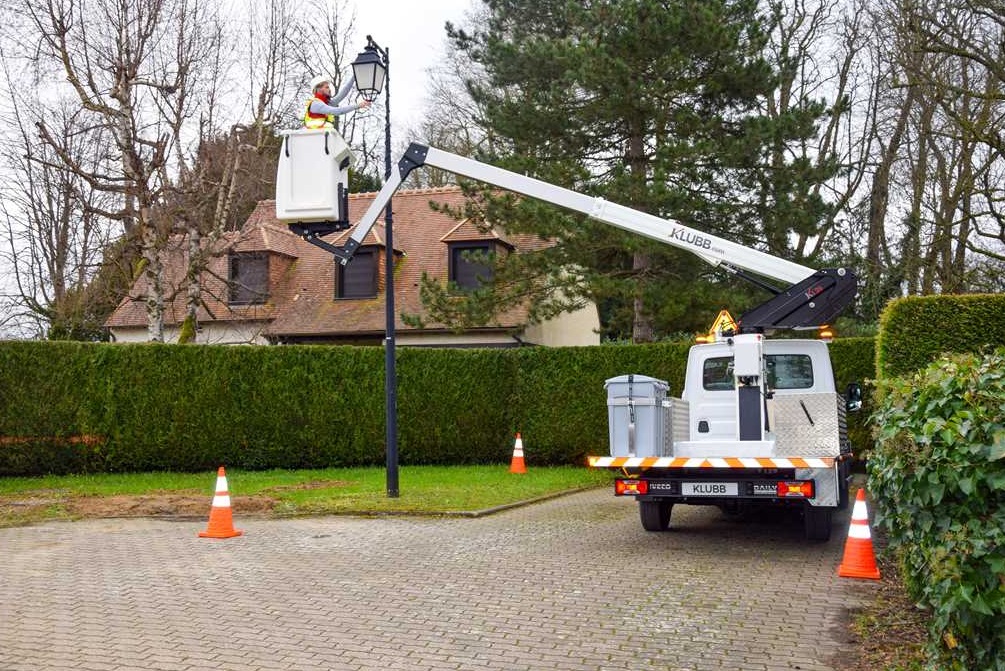

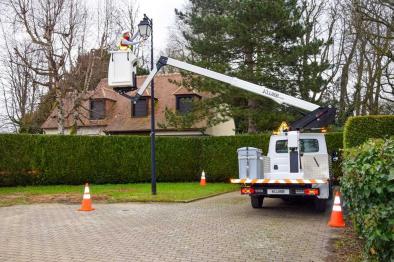

With a working height of 11.80m and an offset of 6.80m, this aerial platform on a 3.5t CNG chassis is a very efficient solution for public lighting maintenance interventions, maintenance of green spaces and CCTV … It is a versatile and compact machine that is very suitable for town halls and local communities.

Are you interested in a lifting platform on CNG carrier but you need more than 11.80 m working height? in this case, see our KL32 model on a natural gas VL chassis.


Engine start and stop from basket
Independent emergency electric pump with all the features in the basket for maximum security
Proportional controls
Secure access to the working platform
Hoses and cables are inside the boom structure for maximum protection
Aluminium boom for optimum stability



For vehicle options, please contact us before ordering

Technical Specifications

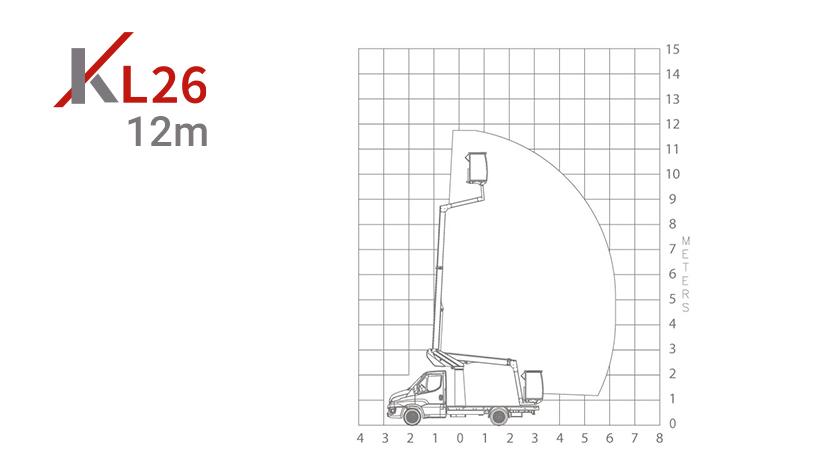

Max. working height : 11.80 m (38'90")
Max. working outreach : 6.80 m (22'40")
Boom rotation : 360°
Max. working load : 120Kg
Max. platform height : 8.30 m (27'30")
Outriggers : no outriggers
Basket size : 86 x 72 x 110 cm
Chassis weight : ≤3.5 T
Arm : Telescopic
Engine : Natural gas
IPAF category: 1b
Lifting mechanism : hydraulic

Recommended products

icon eco friendly

"green pack"

The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
