11.40m Telescopic aerial platform on Peugeot E-Expert

Electric KL21B

icon working height Working Height : 11.40
icon offset Offset : 6.40
icon rotation Rotation : 360

11.40 Meters Van Mounted Boom Lift (39')




KLUBB Model = KL21B
Capacity = 120kg, 1 operator, no outriggers

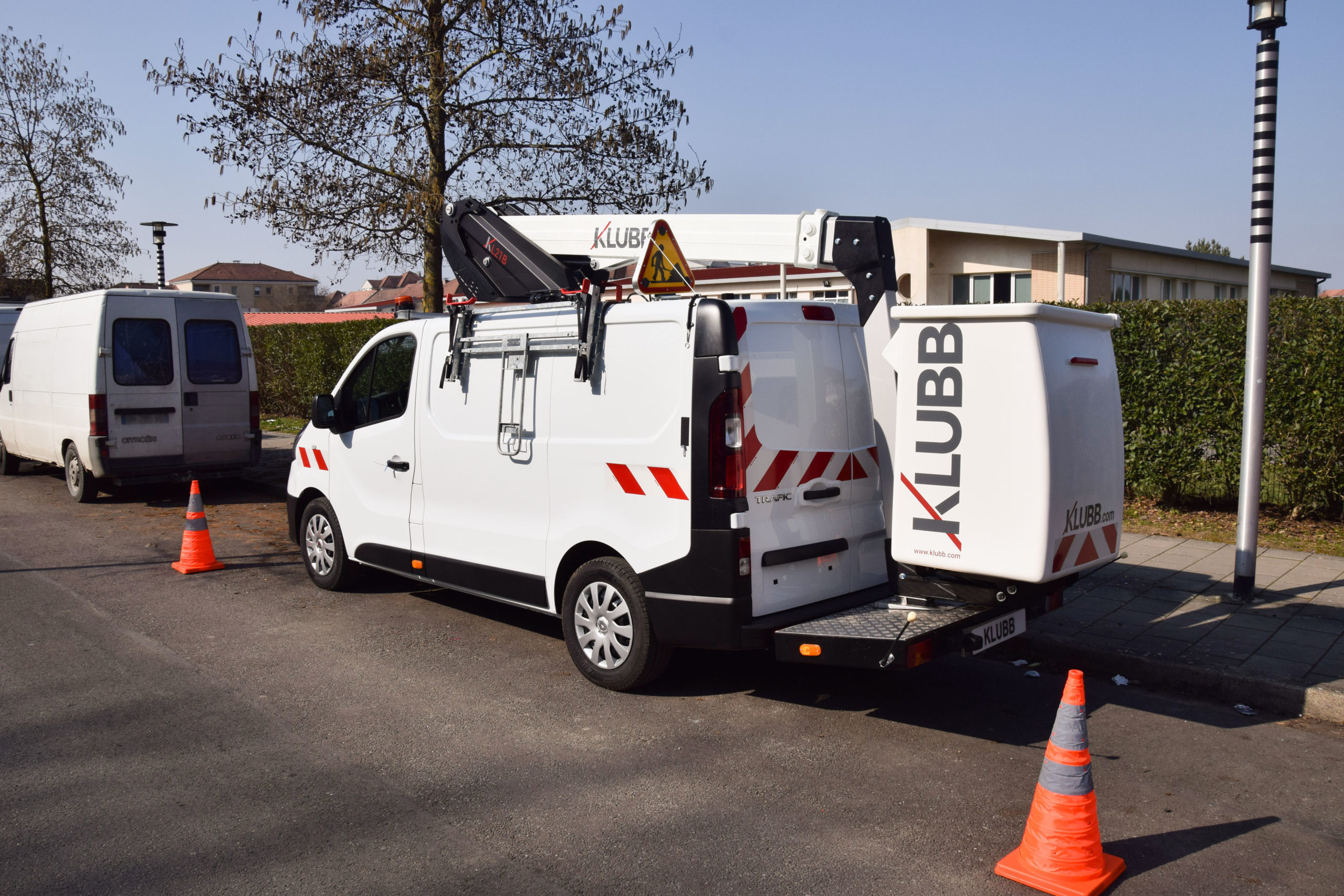

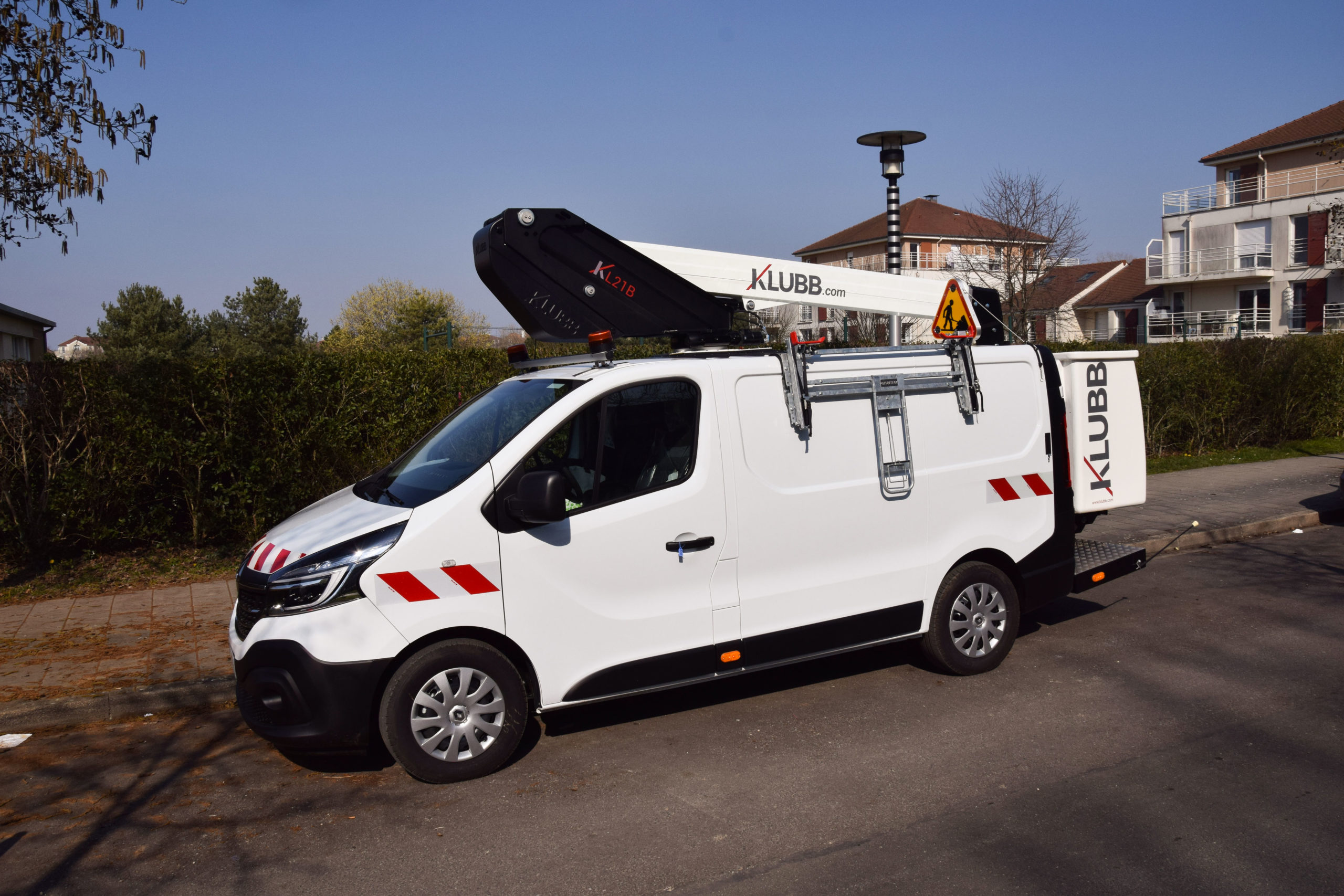

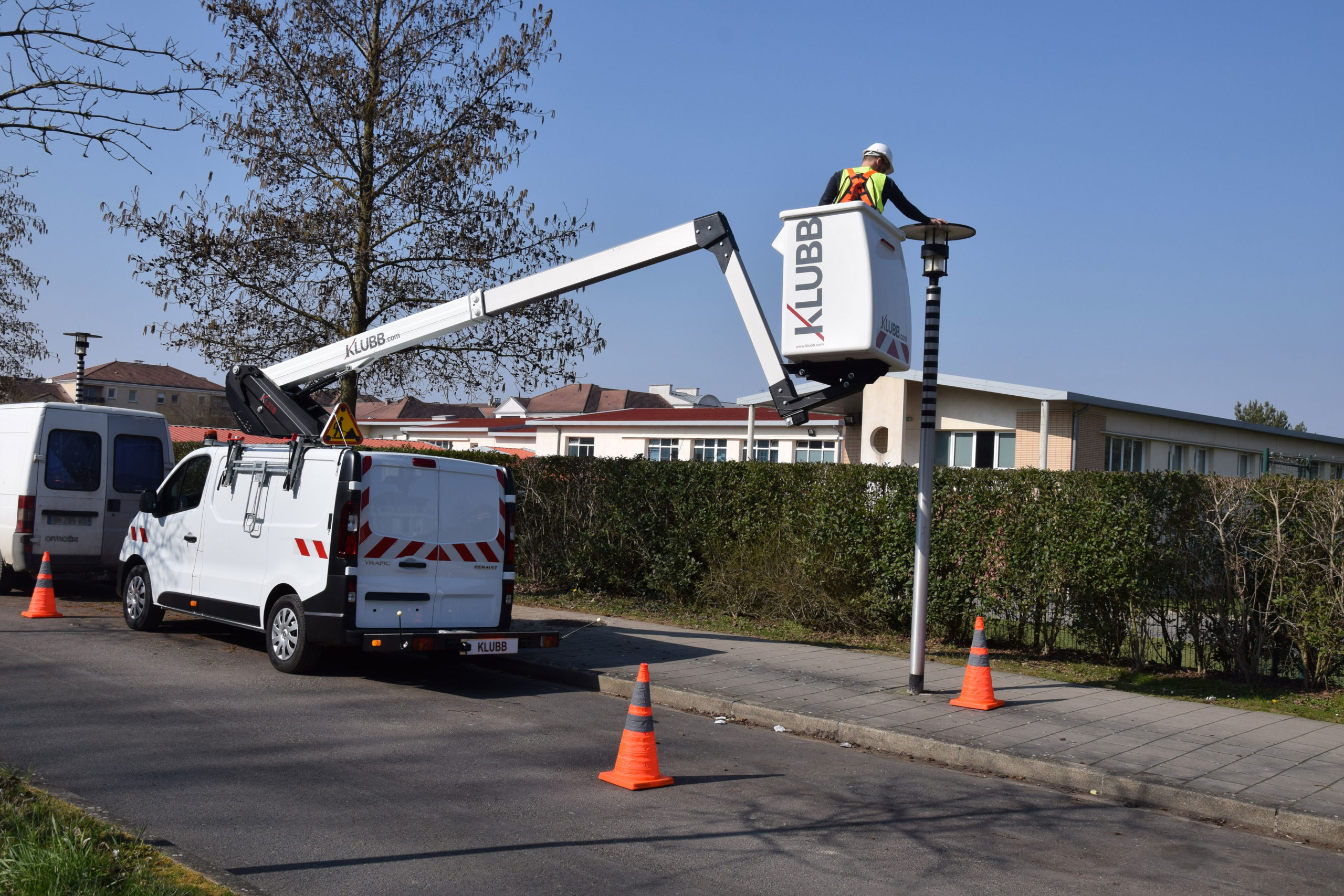

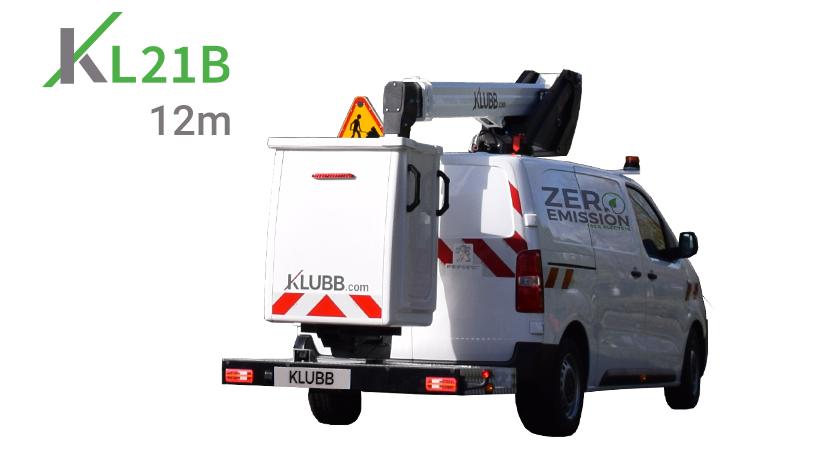

This 100% electric platform van is a very powerful vehicle with its 11.40m working height and offset of 6.40m.

Very compact, it has been designed to operate in tight spaces while maintaining adequate storage capacity and payload to transport tools and equipment. Easy to park and position on the road in order to not obstruct traffic, this electric platform van is a real asset for working in the city. It is also possible to use it for indoor operations since this machine does not emit polluting gases.

Regarding autonomy, it can perform 32 aerial platform cycles and 230km (*) WLTP on the road, which represents an excellent solution for all companies who want to invest in environmentally friendly solutions.

The KL21B electric work platform on an e-Expert is ideal for construction companies, telecommunications, video surveillance or network companies that want to reduce their carbon footprint.

This model is also available in a diesel version with the Green Pack option. This allows the aerial work platform to operate with the engine off.  Discover this model

(*) Data from the manufacturer Stellantis




Options

  • Signalling devices (triflash, 2 flashing lights, reflective strips)

  • 220V electric socket in basket

  • Reinforced suspensions

  • Fully opening insulated basket

  • Low voltage insulated full opening basket

  • Custom fitting out of vehicles

  • Side ladder rack

For more platform options, please contact us before ordering




Standard Specifications

  • Engine start and stop from basket
  • Independent emergency manual pump with all the features in the basket for maximum security
  • Proportional controls
  • Secure access to the working platform
  • Hoses and cables are inside the boom structure for maximum protection
  • Aluminium boom for optimum stability



Technical Specifications

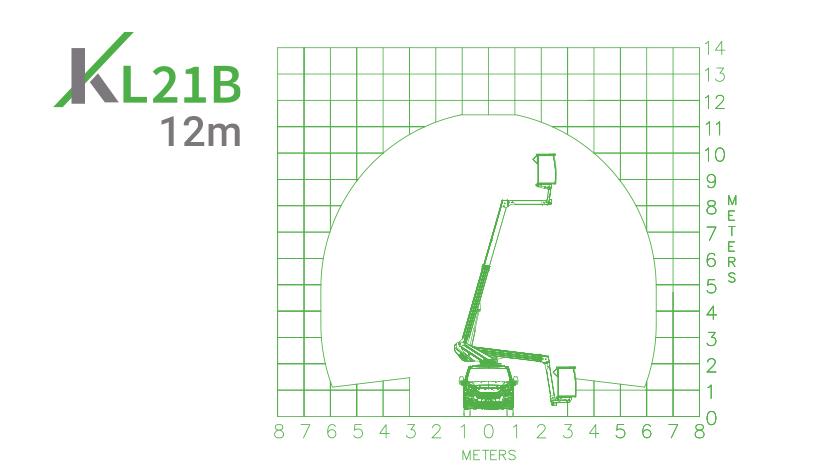

Max. working height : 11.40 m (37'50")
Max. working outreach : 6.50 m (21'40")
Boom rotation : 360°
Max. working load : 120Kg
Max. platform height : 9.40 m (30'10")
Outriggers : no outriggers
Basket size : 86 x 72 x 110 cm
Chassis weight : ≤3.5 T
Arm : Telescopic
Engine : Electric
IPAF category : 1b
Lifting mechanism : hydraulic
