Working Height : 12.50
Offset : 7.50
Rotation : 360
KLUBB Model = E13
Capacity = 200kg

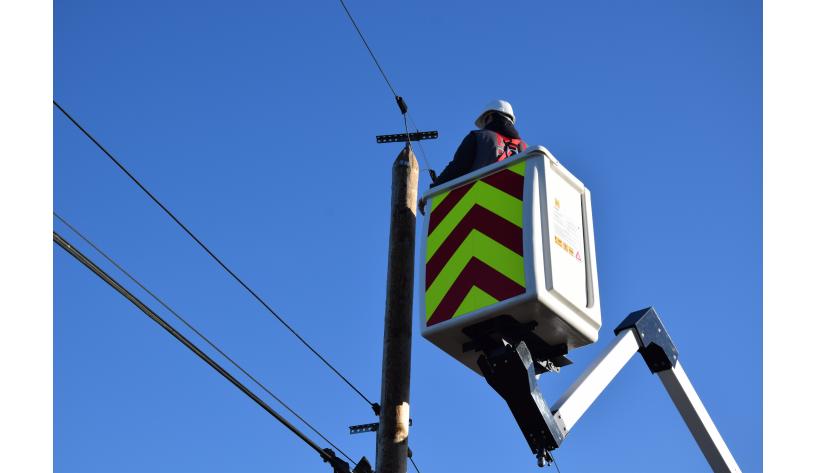

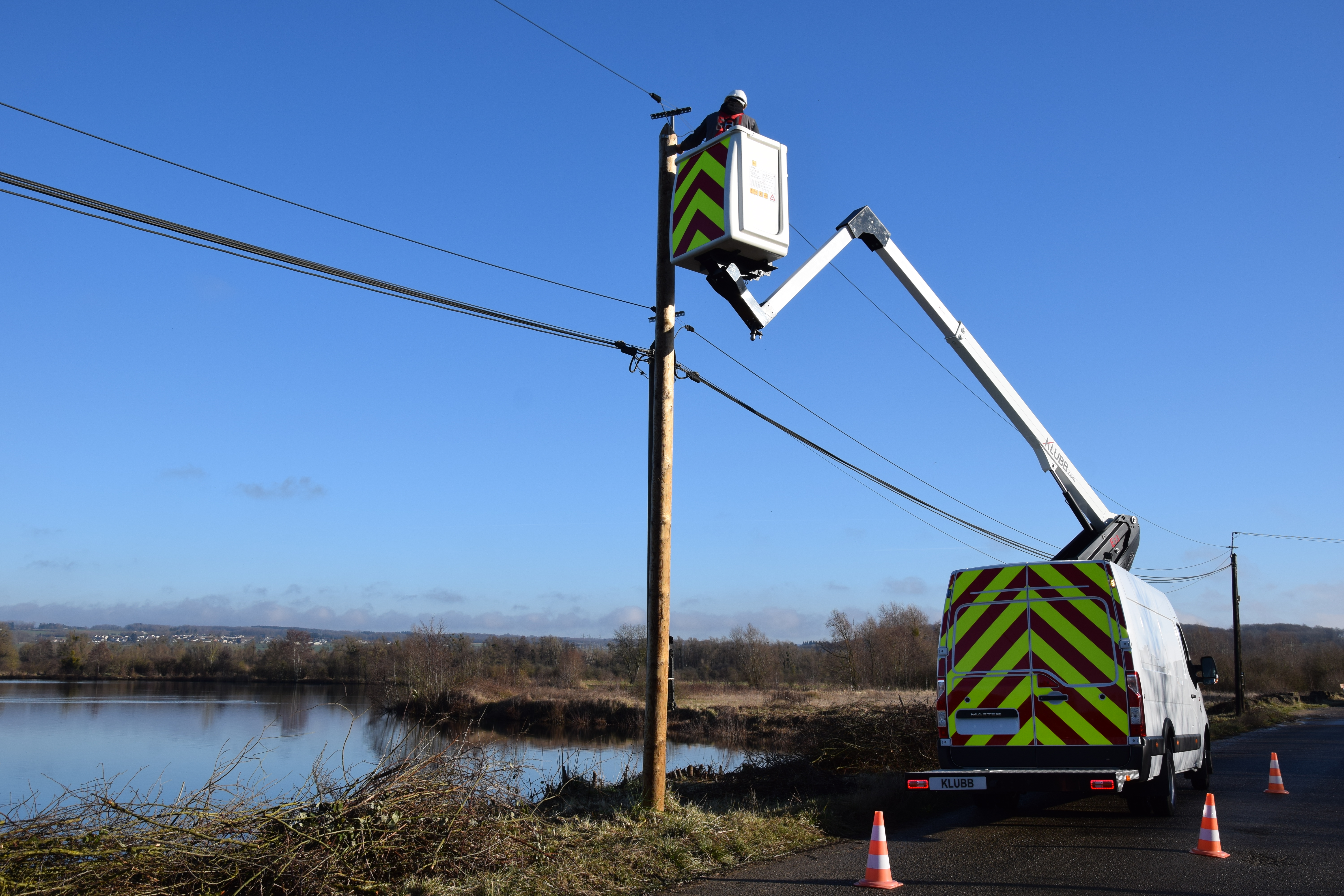

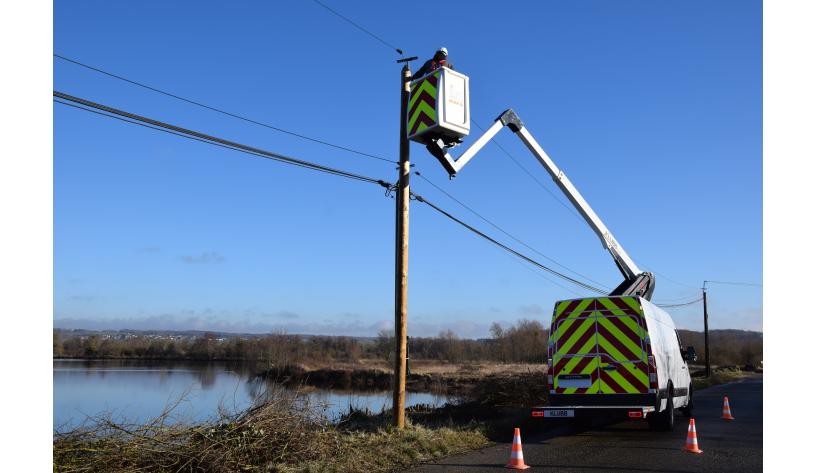

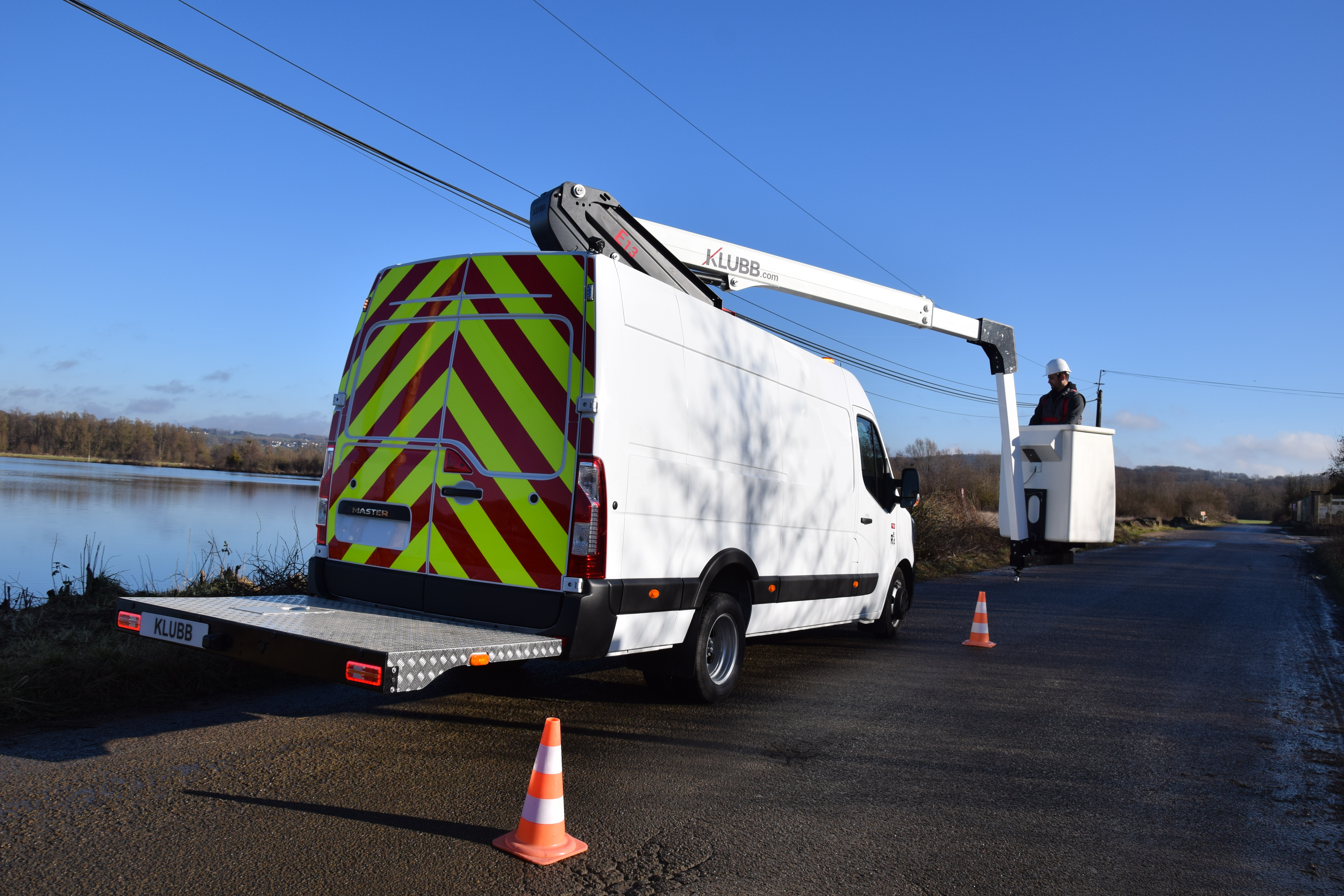

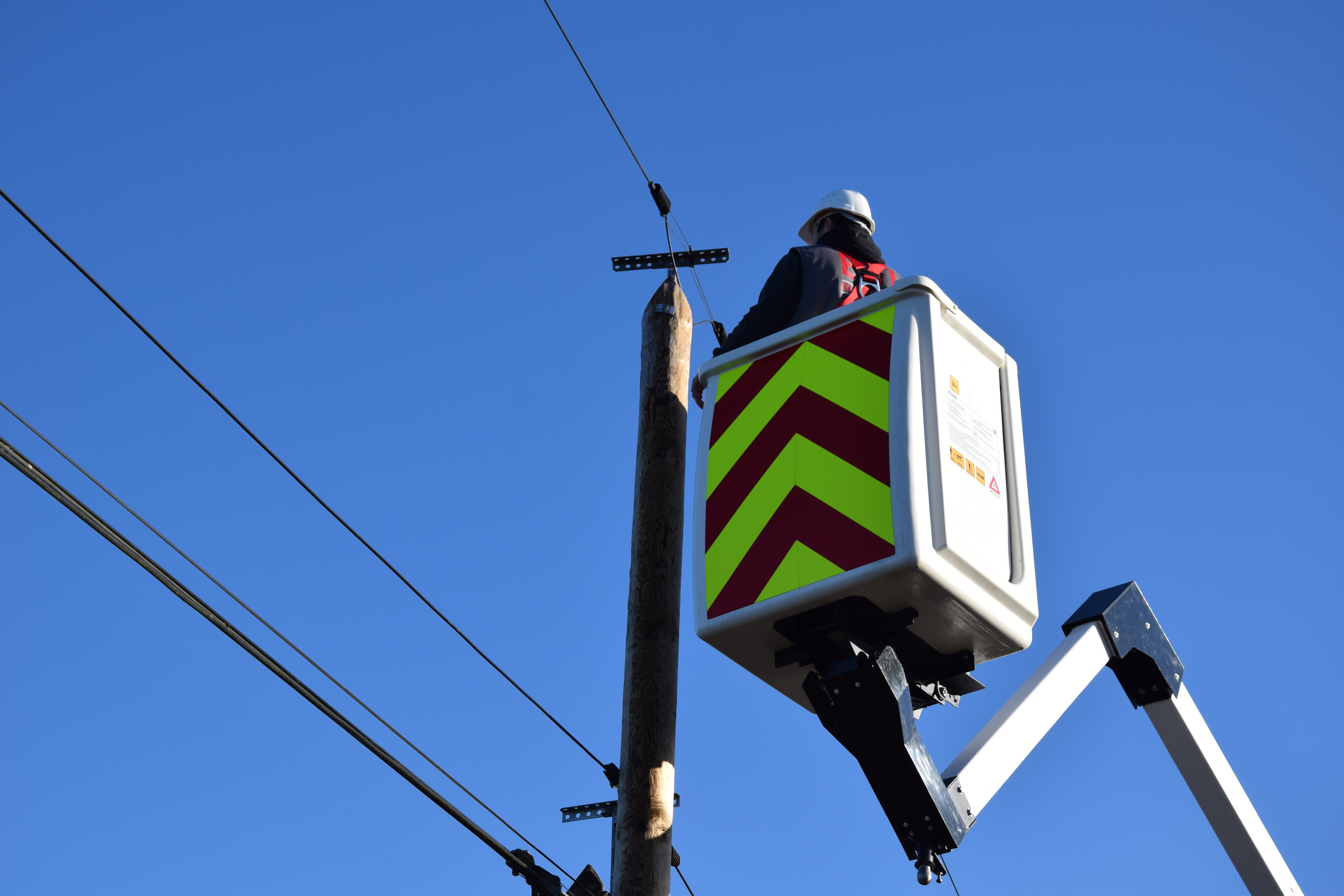

Discover our latest cutting-edge model! Ultra-compact, high-performance, and versatile, this telescopic aerial platform is insulated to work at voltages up to 46 kV (in accordance with ANSI 92.2 standards), allowing you to carry out all types of work safely. With a basket capacity of 200 kg, spacious storage compartments, and a minimal stabilization footprint (less than 30 cm on each side), you won’t find anything comparable on the market!
Technical specifications
- Max. working height : 12.70m
- Max. working outreach : 7.50m
- Boom rotation : 360°
- Max. working load : 200Kg
- Max. platform height : 12m
- Outriggers : 2 A-frame outriggers
- Basket size : 125 x 75 x 110 cm
- Chassis weight : ≤3.5 T
- Arm : Telescopic
- Engine : Diesel
- Licence : 1b
- Rated Voltage of Insulating boom : 46kV
- Rated Voltage of Aerial Device : 46kV
- Wind Speed : 45km/h
- Slope : 15% (8.5°)
- Tilt : 5% (3°)
Standard features
- Engine start and stop from basket
- Independent emergency electric pump with all the features in the basket for maximum security

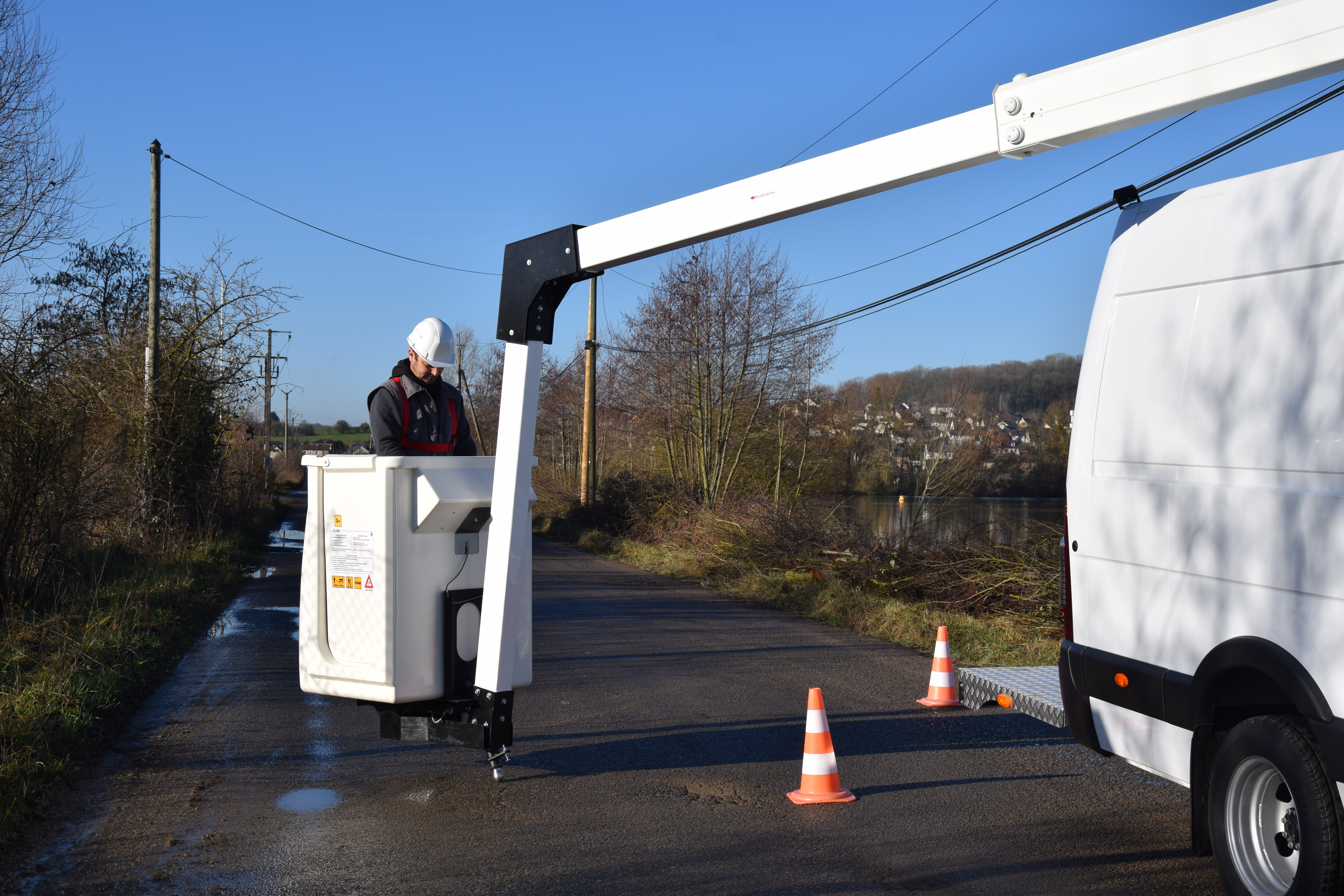

- Secure access to the working platform
- Hoses and cables are inside the boom structure for maximum protection
- Insulated Boom for distance working 46 kV cat.C ANSI 92.2

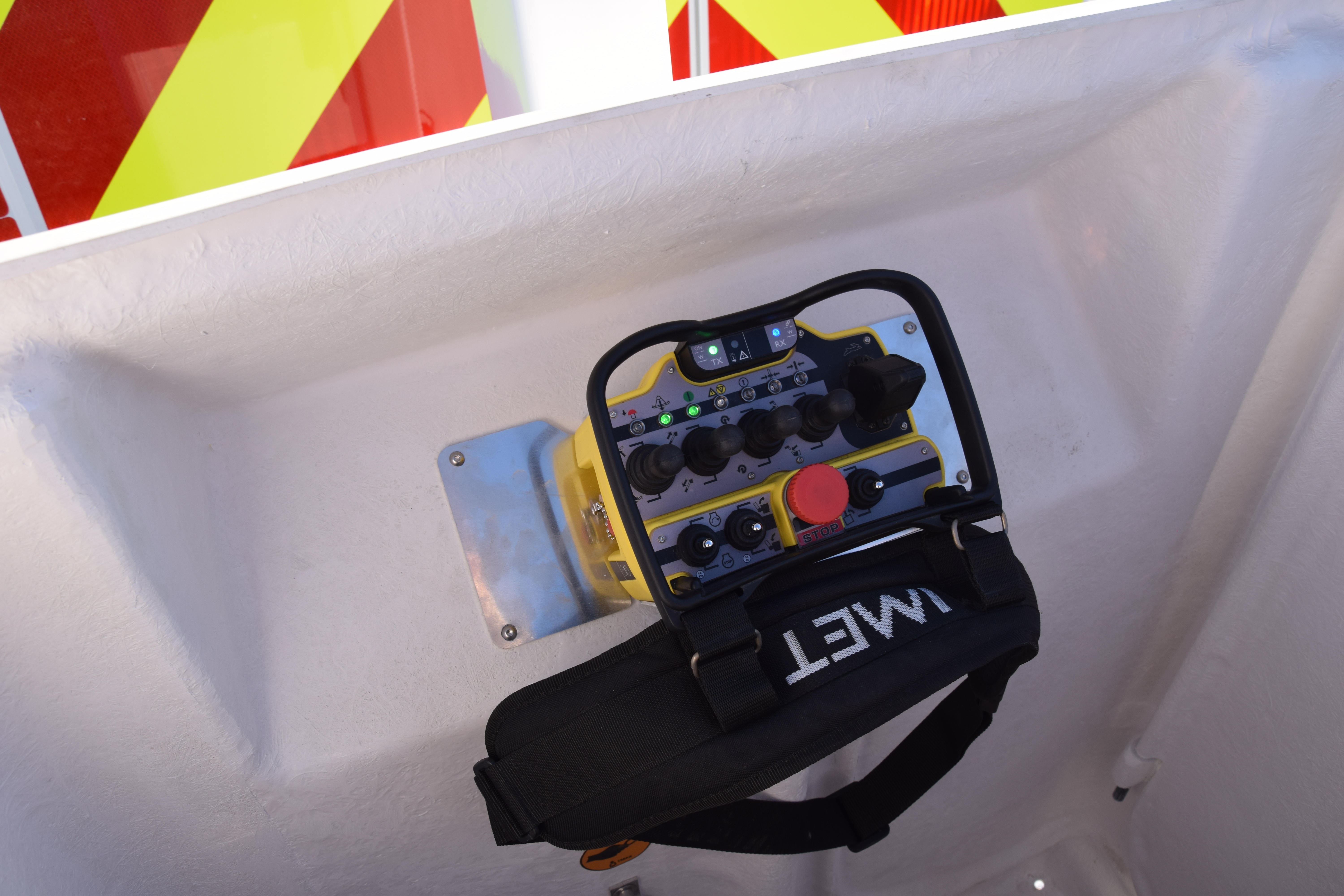

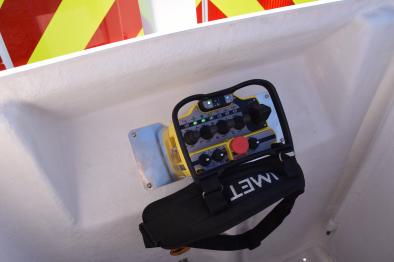

- 2 Control Command Systems: 1 at Basket + 1 remote
Examples of vehicles
- Ford Transit 3,5T L2H2
- Iveco Daily 5T L2H2
"green pack"
The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
