Working Height : 15.00.
Offset : 6.50
Rotation : 360
KLUBB Model = KAT42L
Capacity = 240kg

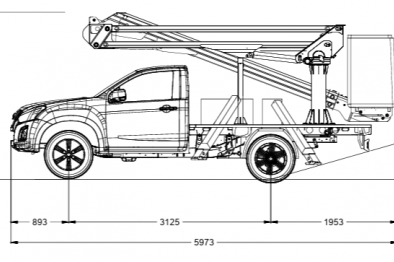

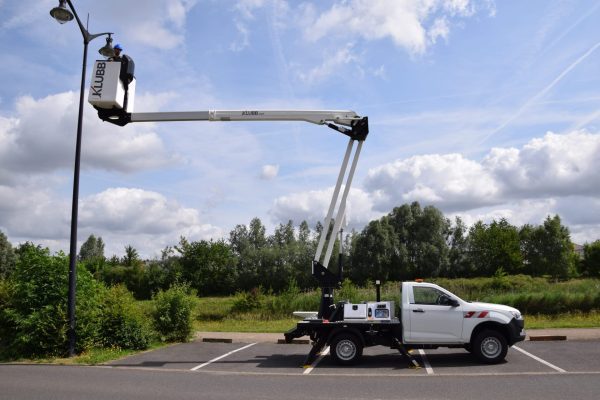

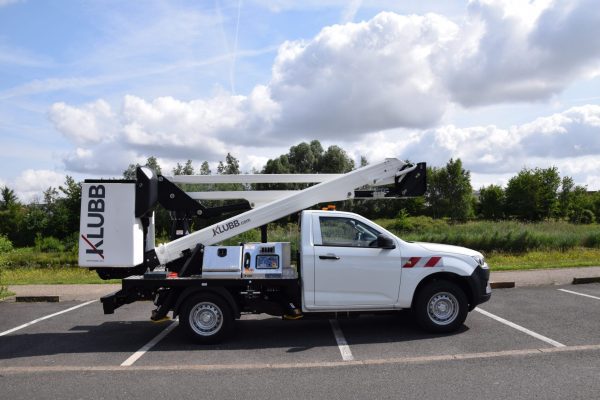

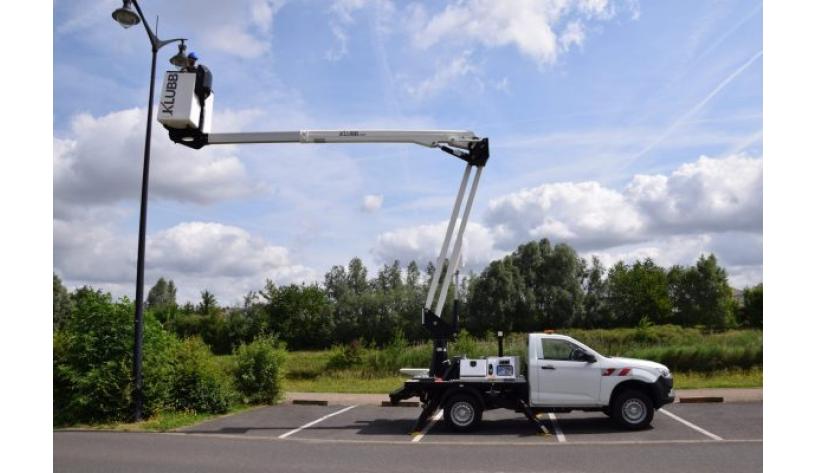

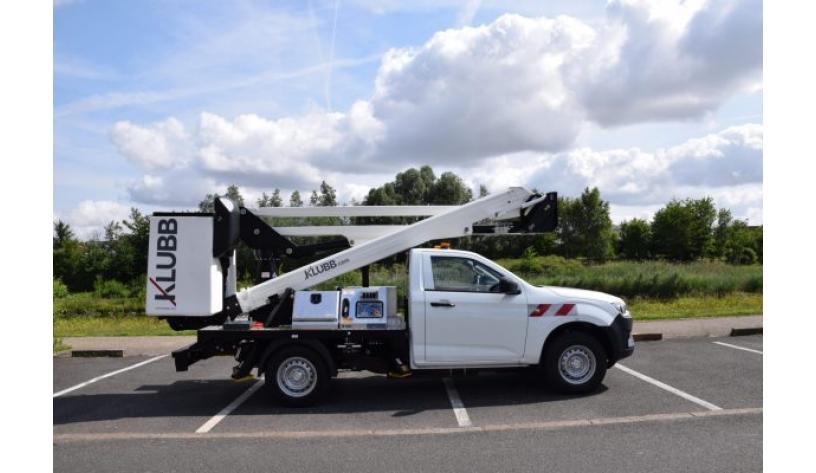

For working at height on rough terrain, we offer the KAT42 L telescopic boom lift mounted on a pickup truck chassis. Highly valued for its mobility and compact size, this pickup truck-mounted platform allows you to reach a working height of 14.50m and a lateral outreach of 6.25m.
This new gondola incorporates an anti-corrosion aluminium arm which makes it very resistant even in the most extreme conditions.

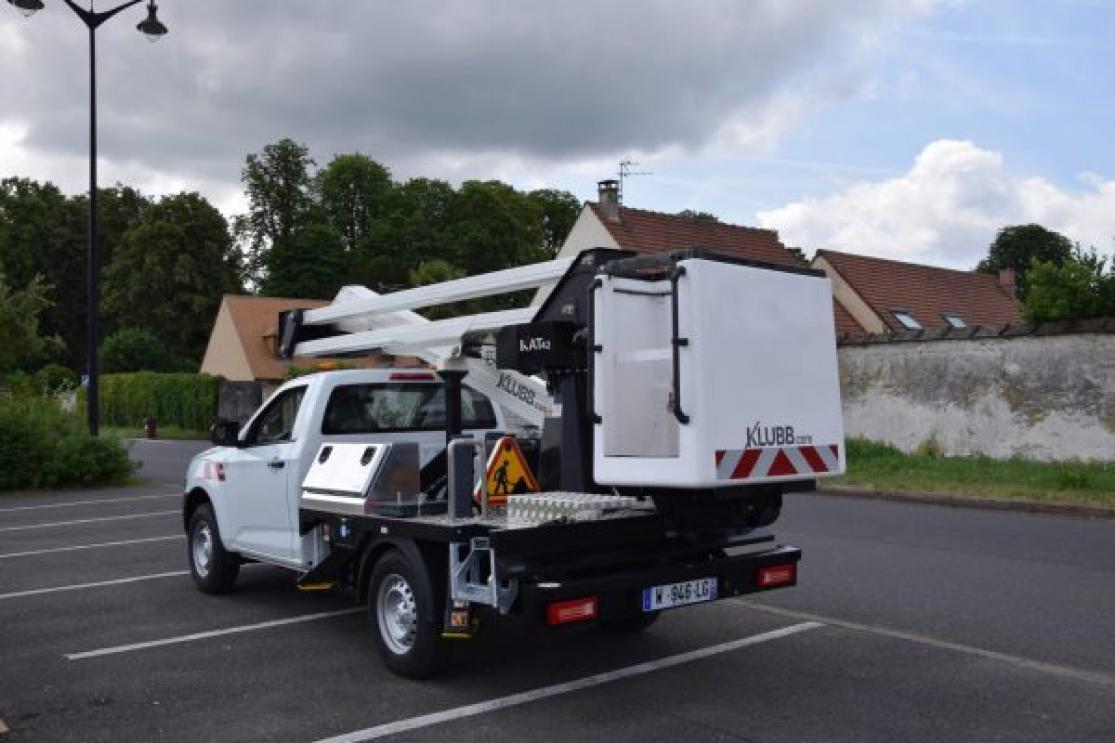

This new pickup truck-mounted aerial work platform, also available on a Toyota chassis , can accommodate one or two operators in its basket. In the single-operator configuration, the platform basket can support a load of up to 120 kg without the need to deploy the stabilizers.
In the second configuration, the basket can accommodate 2 operators and their equipment for a total load of 240 kg. The load in this basket necessitates the use of stabilizers.

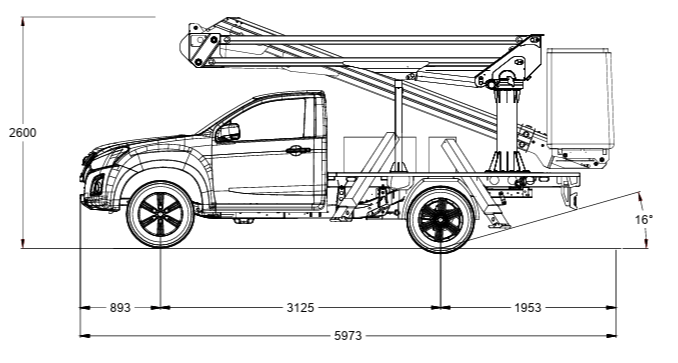

Technical specifications

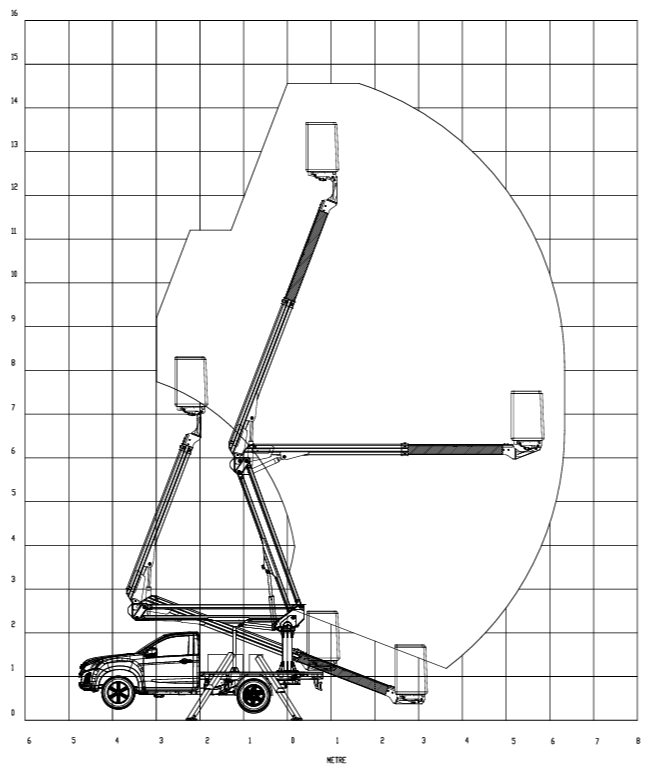

- Max. working height : 14.50m (47'57")
- Max. working outreach : 6.25m (20'50")
- Boom rotation : 360°
- Max. working load : 240Kg
- Max. platform height : 12.50m (41'01")
- Outriggers : 4 A-shaped
- Basket size : 125 x 75 x 110 cm
- Chassis weight : ≤ 3.5 T
- Arm : Telescopic
- Engine : Diesel
- IPAF catgory : 1b
- Lifting mechanism : hydraulic
- Operators : 2
Standard features
- Two-person basket with stabilizers (200kg)
- Engine start/stop in nacelle
- Hour meter
- Backup circuit with independent electric pump and all functions located in the cab for maximum safety
- Latest aluminum mast for optimal stability
- Proportional controls on all movements
- Secure access to the work platform
- Rigid protective cover for the controls in the upper position
Examples of vehicles
- Toyota Hilux 4X4
- Isuzu D-Max 4X4
"green pack"
The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
