Working Height : 18.50
Offset : 12.50
Rotation : 360
KLUBB Model = PT180
Capacity = 300Kg

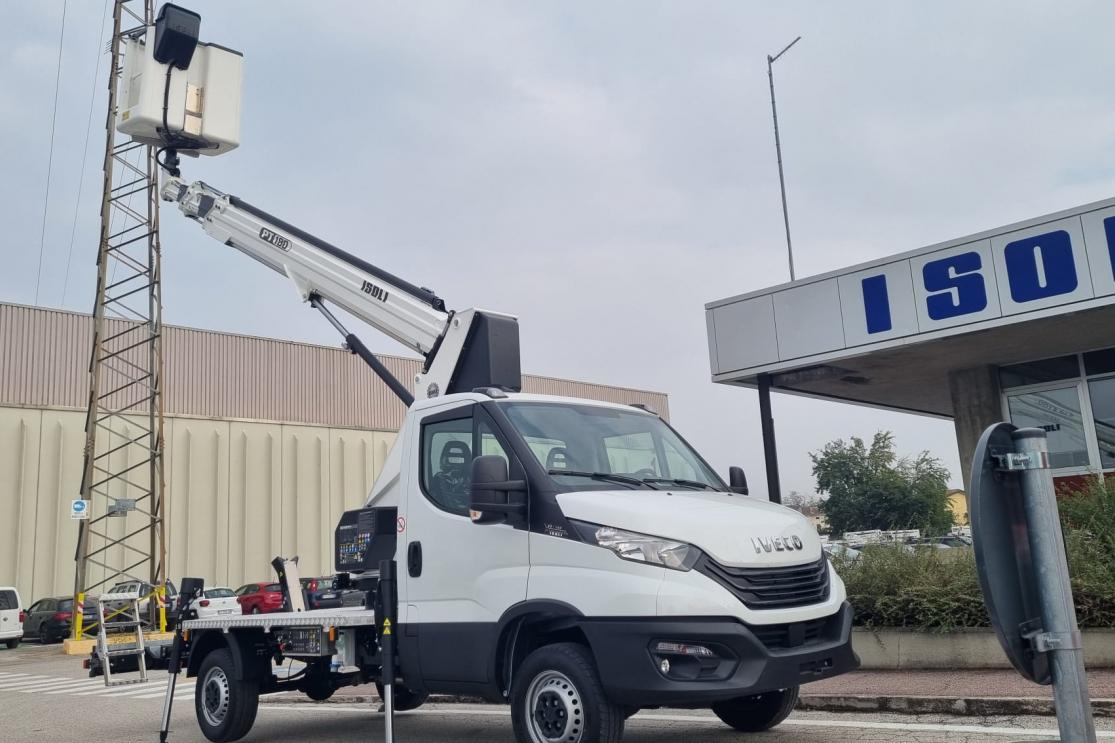

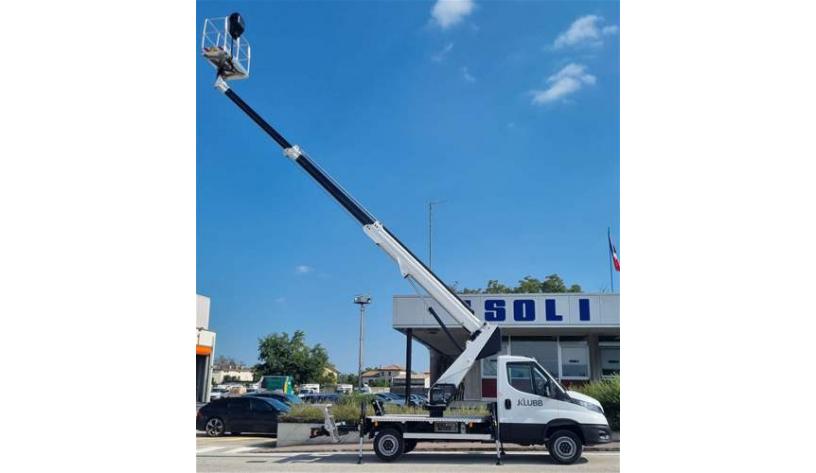

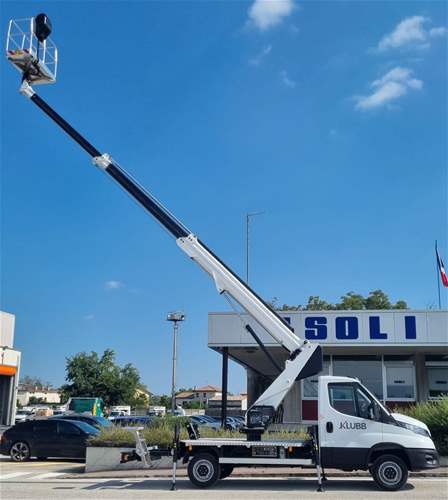

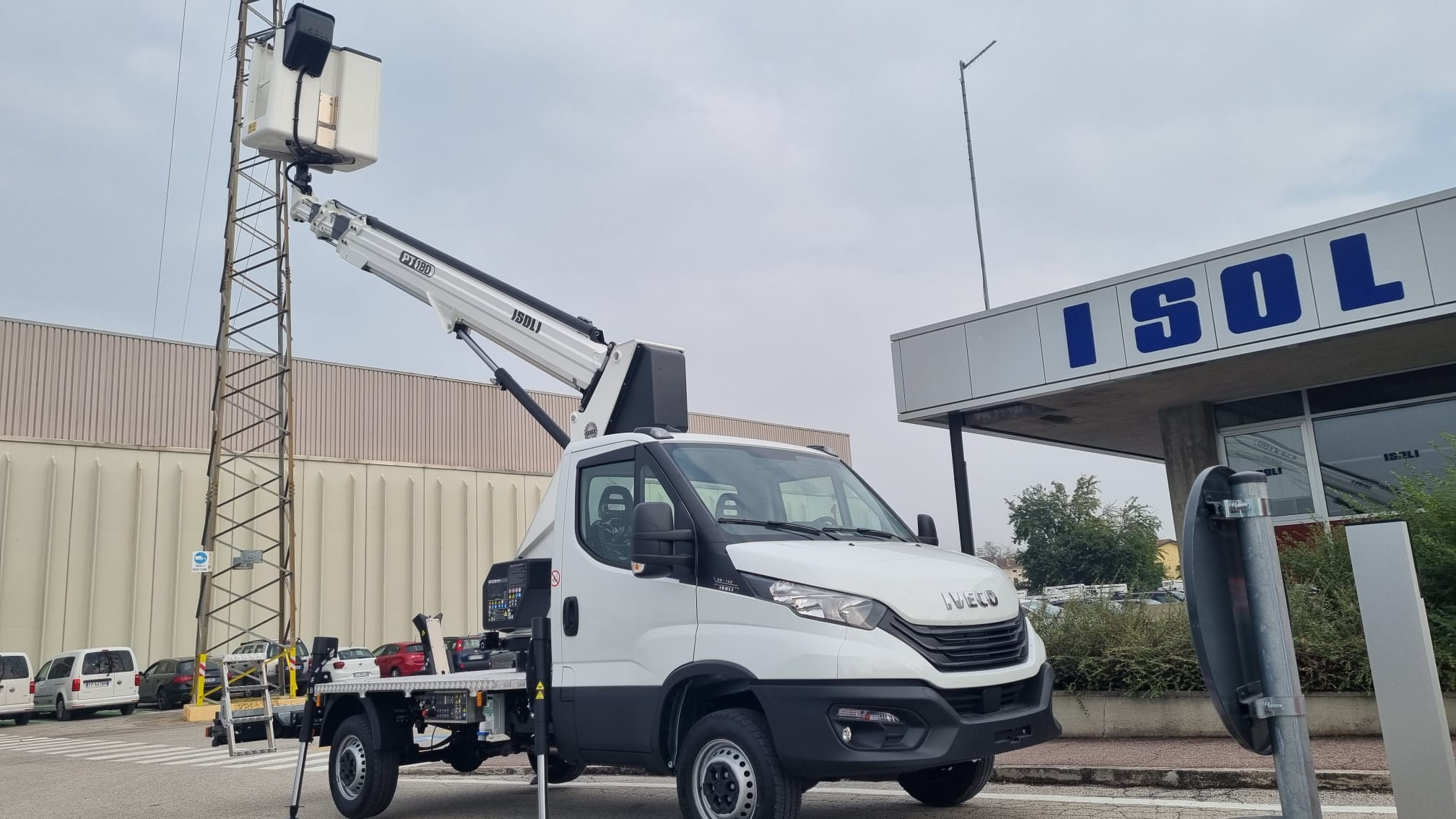

The PT 180E combines power and precision to meet the demands of the most ambitious professionals. With a working height of 18 metres, a reach of 12.5 metres, and a 360° rotation capable of supporting up to 300 kg, this telescopic boom lift on a chassis expands the range of possibilities.
Its four H-H hydraulic stabilisers ensure optimal stability on all types of terrain, while its weight of under 3.5 tonnes guarantees unrestricted mobility. Ideal for tree pruning, urban maintenance, or façade work, it maximises your profitability by diversifying your range of operations. More than just equipment, the PT 180E is a strategic asset that turns every project into a success
Technical specifications
- Max. working height : 18m (39'37")
- Max. working outreach : 12.5m (41'01")
- Boom rotation : 360°
- Max. working load : 300 kg
- Max. platform height : 16m (52'49")
- Outriggers : 4 HE-H outriggers
- Basket size : 125 x 75 x 110 cm
- Chassis weight : ≤ 3.5 T
- Arm : Telescopic
- Engine : Gas
- IPAF category: 1b
- Lifting mechanism : hydraulic
Standard features
- Engine stop/start from the platform
- Assisted turret and basket centering
- Emergency circuit on manual pump
- Proportional controls on all movements
- Secure access to the work platform
- Conveyor chain for hoses inside the mast for optimum protection
- Rigid PVC protection of upper position controls
- Four stabilisers including two extendable at the front
- 220 V circuit in the platform
Examples of vehicles
- Iveco Daily
- Isuzu M21
"green pack"
The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
