Working Height : 20
Offset : 12.50
Rotation : 360
KLUBB Model = PT 200 HE-H
Capacity = 300kg

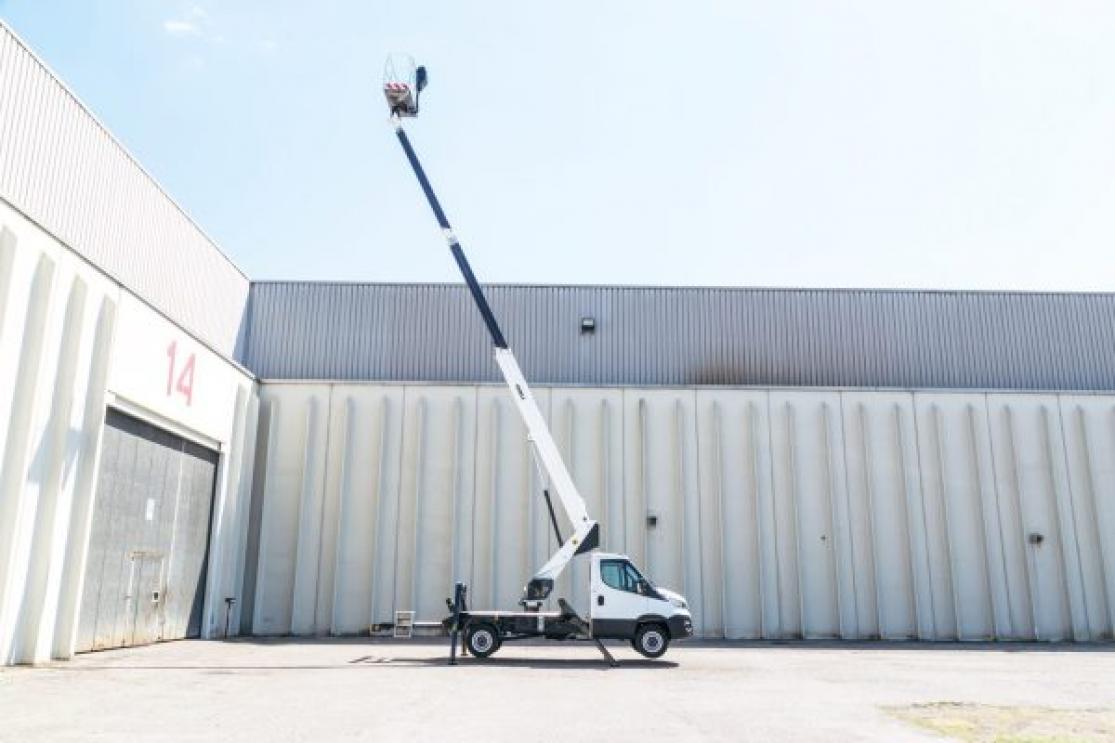

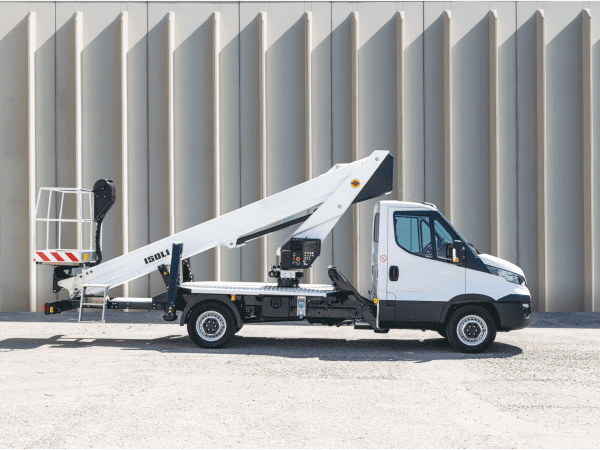

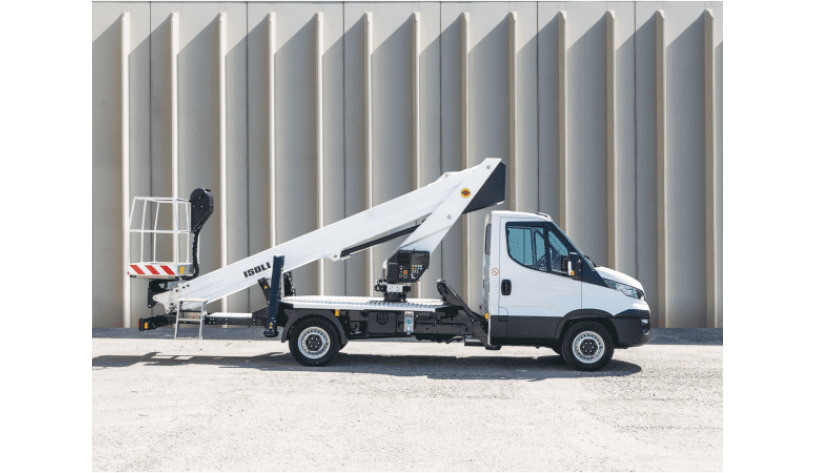

The PT 200E is a telescopic boom lift designed to reach a working height of 20 metres, while ensuring optimal accessibility to the most challenging areas thanks to its double telescope. Its HE-H multimode stabilisation system allows the front stabilisers to be adjusted to either side, providing a choice between compactness and performance to adapt to terrain constraints.
This f lexibility ensures optimal working conditions for operators, even in the presence of obstacles. With a reach of up to 13 metres, it meets a variety of operational needs, including rental, public lighting maintenance, Christmas light installations, and tree pruning. Its 360° rotating basket, capable of supporting up to 300 kg, makes it easy to transport equipment and tools, making the PT 200E a powerful and versatile solution for all height-related tasks.
Technical specifications
- Max. working height : 20m (65'61")
- Max. working outreach : 13m (42'65")
- Boom rotation : 360°
- Max. working load : 300 kg
- Max. platform height : 18m (59'05")

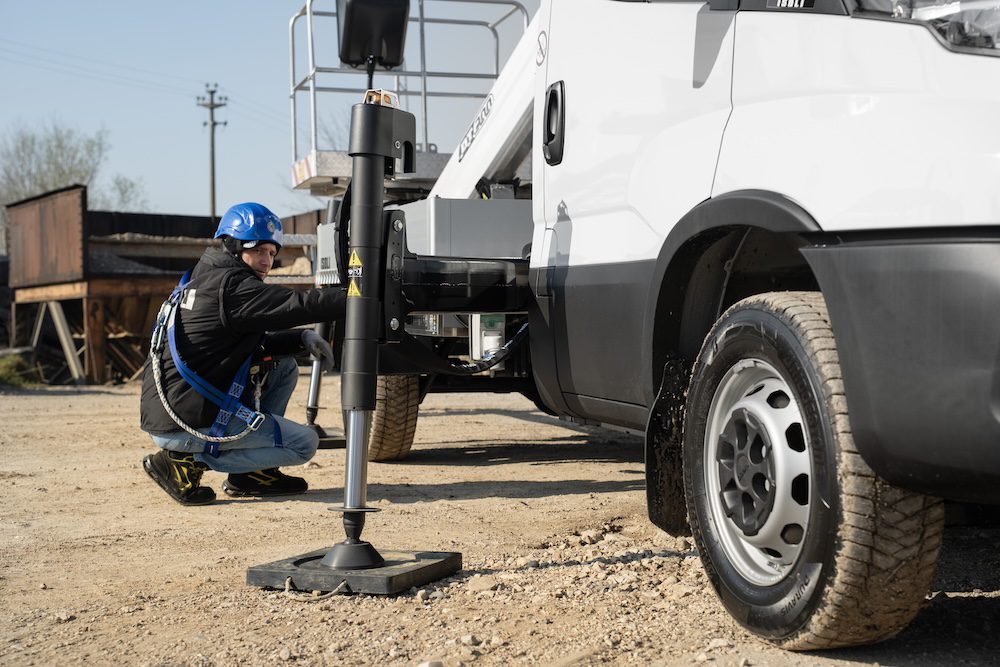

- Outriggers : Four HE-H outriggers
- Basket size : 125 x 75 x 110 cm
- Chassis weight : ≤ 3.5 T
- Arm : telescopic
- Engine : Gas
- IPAF category: 1b
- Lifting mechanism : hydraulic
Standard features
- Engine stop and start in basket
- Hour counter
- Emergency circuit on manual pump
- Proportional controls on all movements
- Secure access to the work platform
- Conveyor chain for hoses inside the mast of the mast for optimum proctection
- Rigid PVC protection of the controls at the top station
- 220 V circuit
Examples of vehicles
- Iveco Daily 35S
- Isuzu M21
"green pack"
The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
