Working Height : 29
Offset : 17
Rotation : 400
KLUBB Model = PT280
Capacity = 250kg
The PNT280 is designed for professionals who need to work up to 28 m as close as possible to their work area. It is suitable for tree care, roofing, painting, façade cleaning, outdoor maintenance, and rental companies. Its 250 kg basket capacity allows two operators to work with their tools.
Technical specifications
- Max. working height : 28m
- Max. working outreach : 17.50m
- Boom rotation : 400°
- Max. working load : 250Kg
- Max. platform height : 26m
- Outriggers : 4 H-HE outriggers
- Basket size : 140 x 71 x 111,50cm
- Chassis weight : ≤3.5 T
- Arm : Telescopic
- Engine : Diesel
- Licence : 1b
Standard features
- Start and Stop from basket
- Home function
- Emergency circuit on manual pump

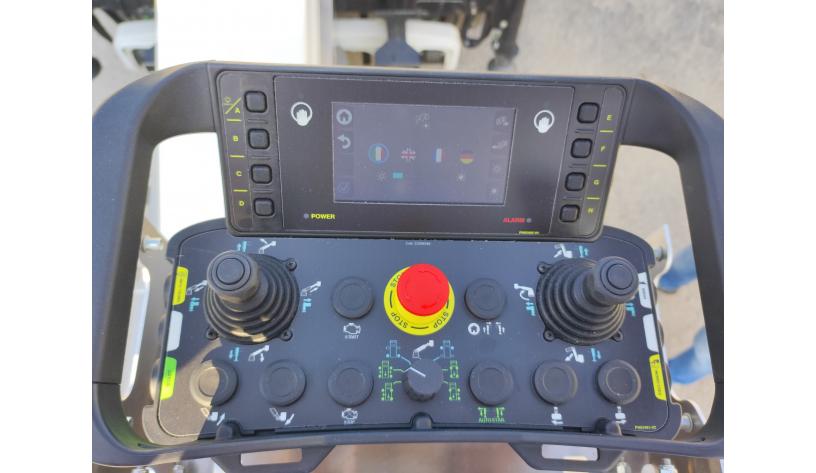

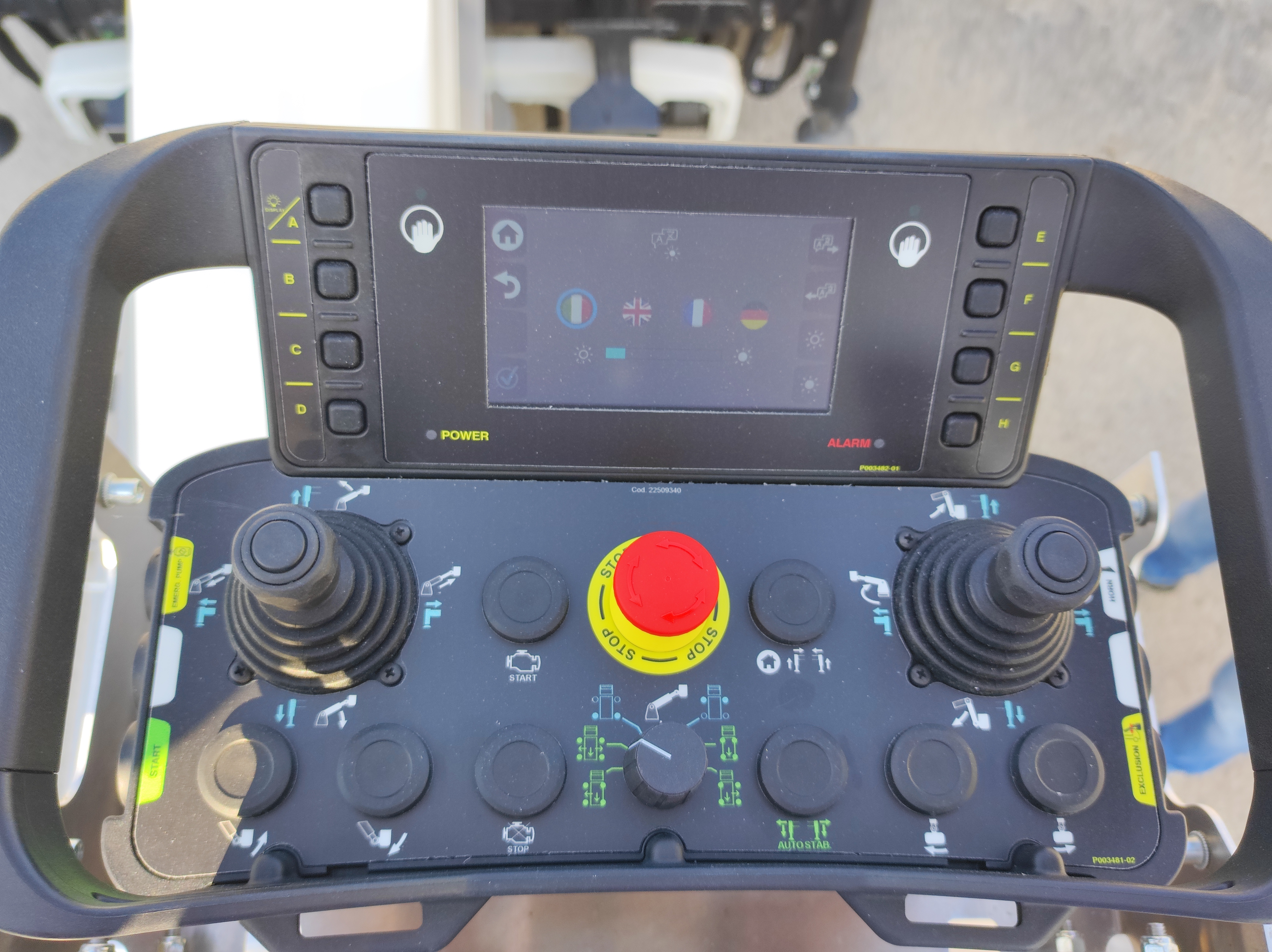

- Proportional controls on all movements
- Secure access to work platform
- Conveyor chain for hoses inside the mast for optimum protection
- Rigid PVC protection for overhead controls
- 220V in basket
Options
- Flashing lights
- 1-person low-voltage insulated basket or tubular aluminium, fully opening, with safety-closure gate
- Lockers
- Aluminium side panels
- Tool holder in basket
- Extended warranty
- Maintenance pack
"green pack"
The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
