Working Height : 22
Offset : 11.20
Rotation : 360

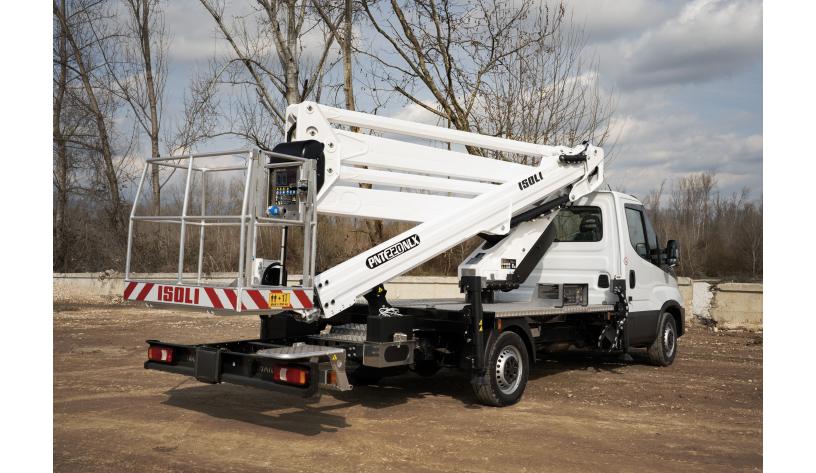

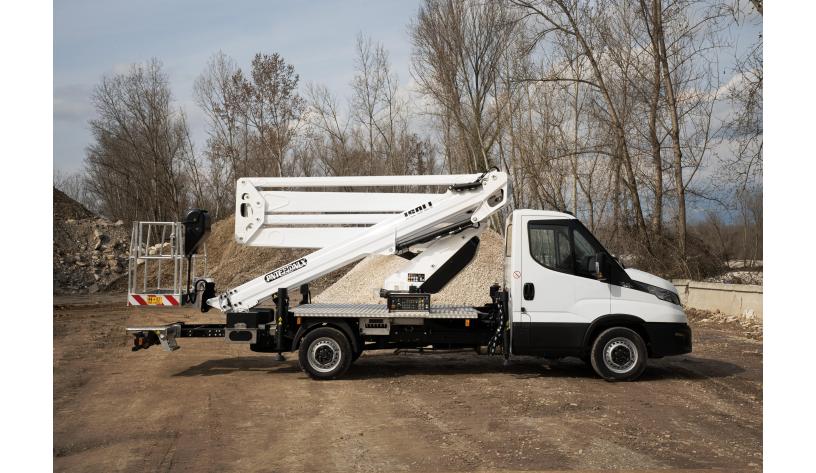

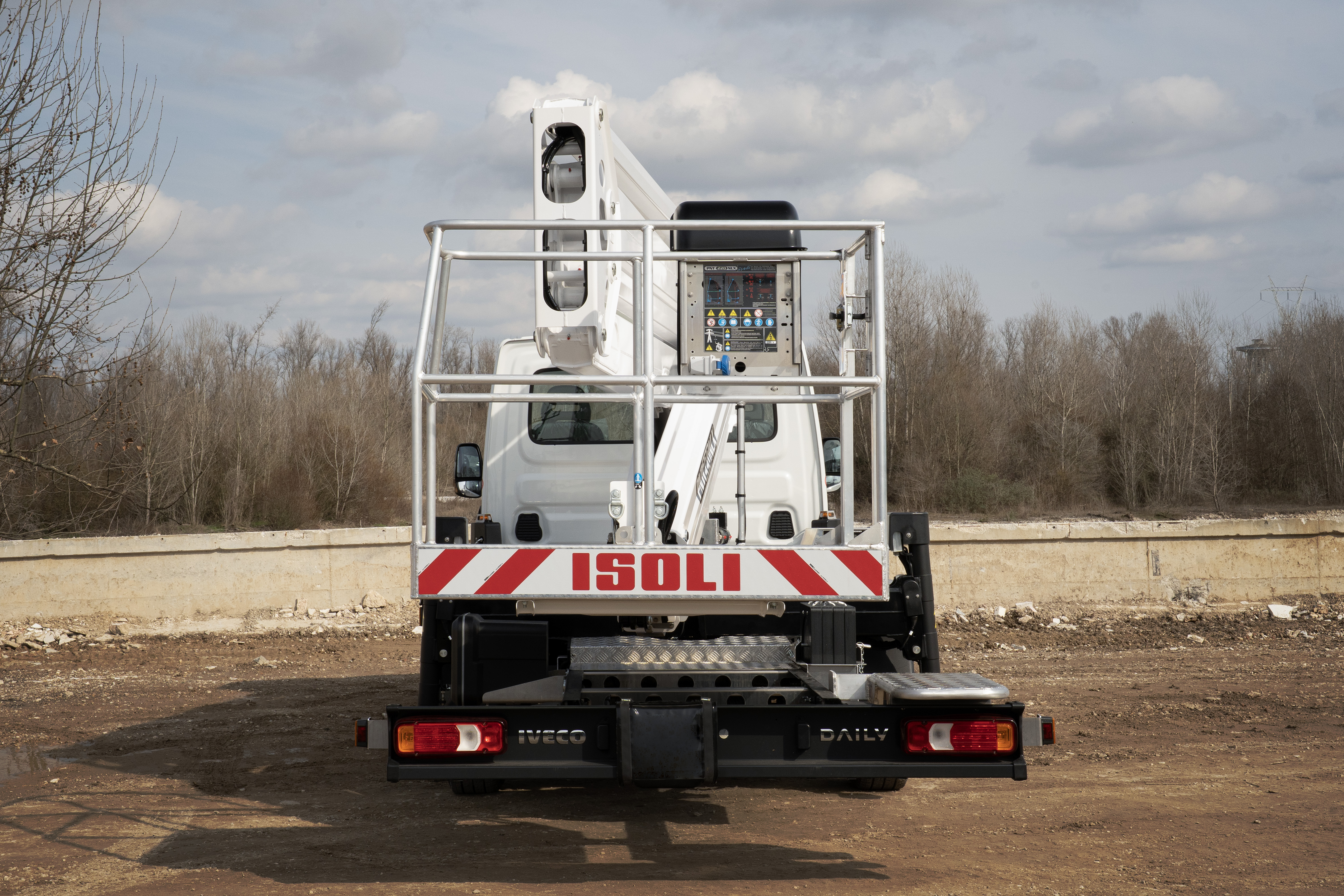

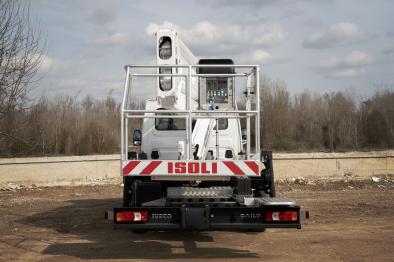

22 Meters Van Mounted Boom Lift (77’17”)
KLUBB Model = PNT 220 NLXCapacity = 250
The PNT 220 NLX 22m articulated boom lift is a multi-purpose truck-mounted platform that is ideal for painting, tree pruning, roofing, carpentry and façade cleaning. Its simplified control panel makes it very easy to use.

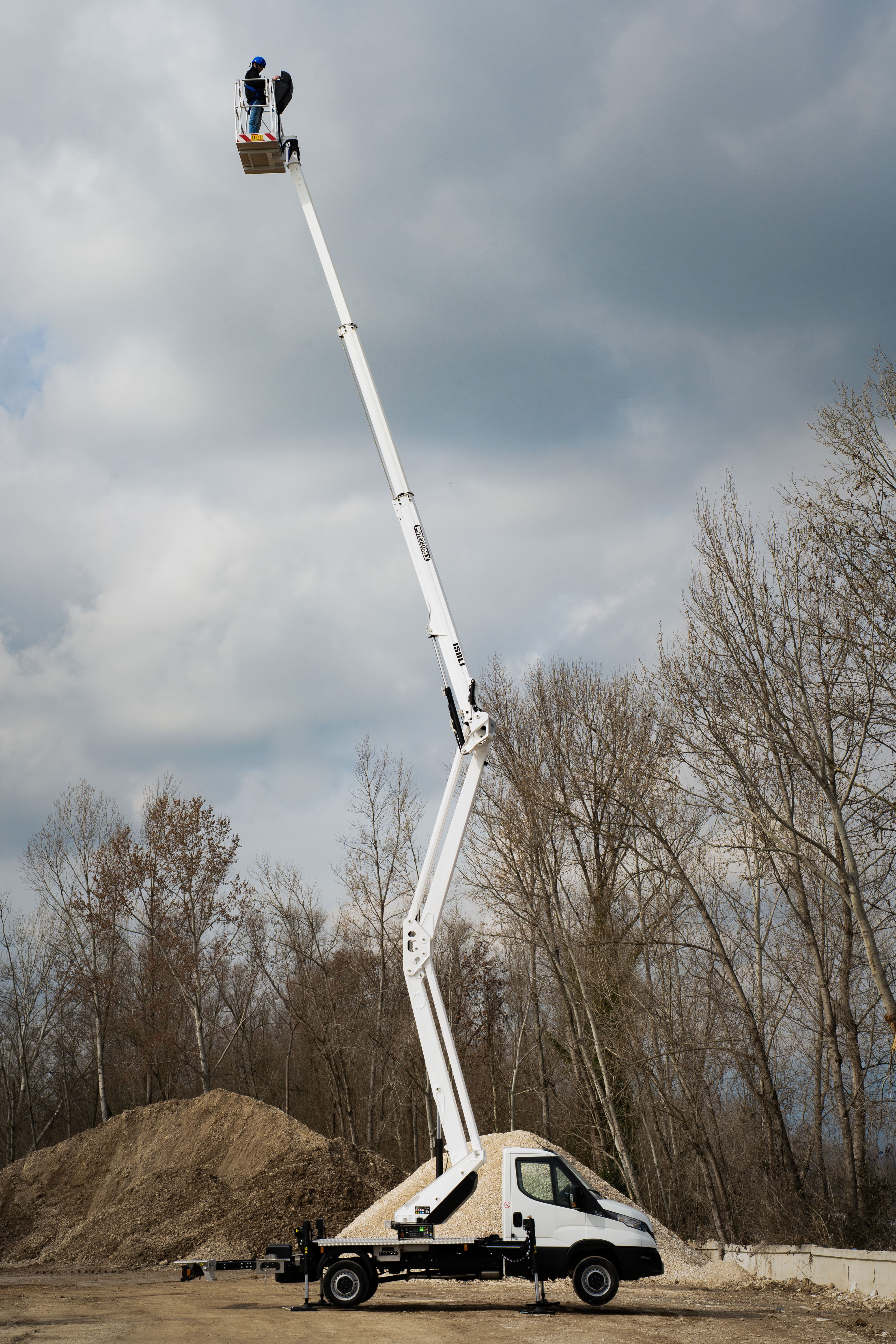

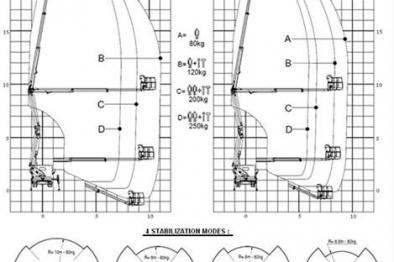

It has H-shaped stabilisers that can be extended at the front to reduce the footprint on the road. It is designed for work at heights of up to 21.8 m with a working reach of 11.2 m. Ideal for pruning, painting and façade cleaning, its versatility and simplified control panel also make it an excellent solution for aerial platform rental.
The PNT 220 NLX articulated boom lift has a maximum load capacity of 250 kg in the basket, allowing equipment and tools to be transported during work at height.

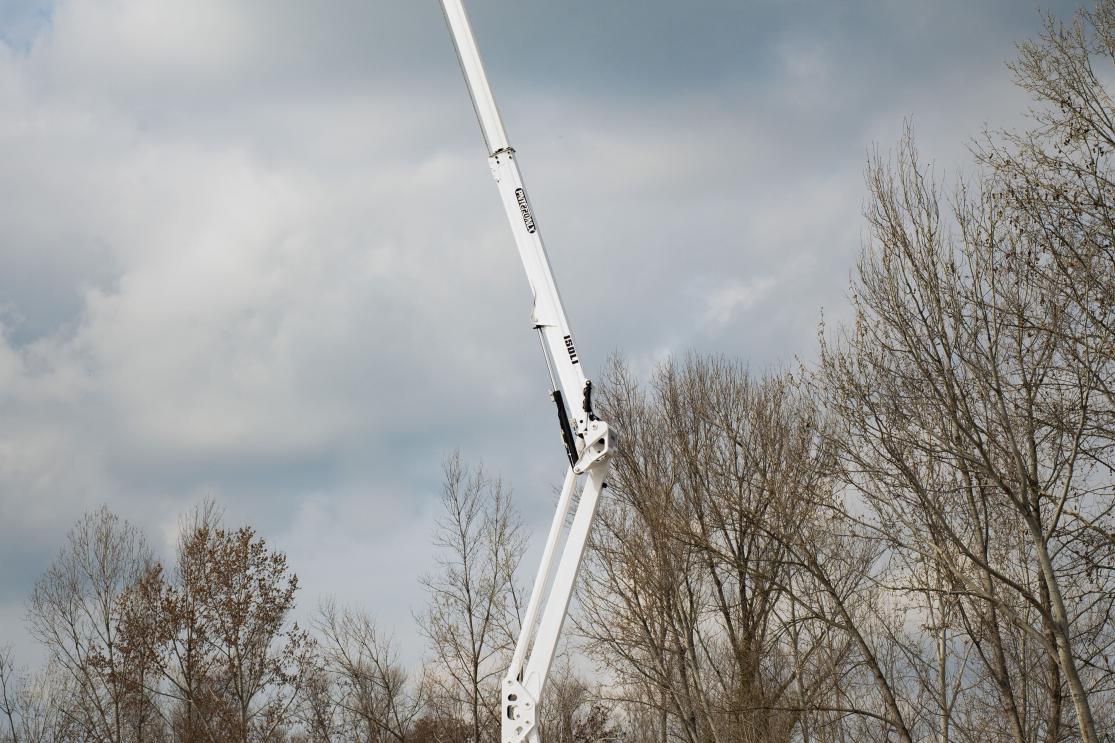

This articulated boom lift allows you to overlook roofs and work in areas cluttered with obstacles such as tree branches.
From our entire range of boom lifts on chassis, you can customise the PNT 220 NLX with additional options such as a storage box, side panels, tool holders, signalling, etc. Contact us for more information.
STANDARD FEATURES

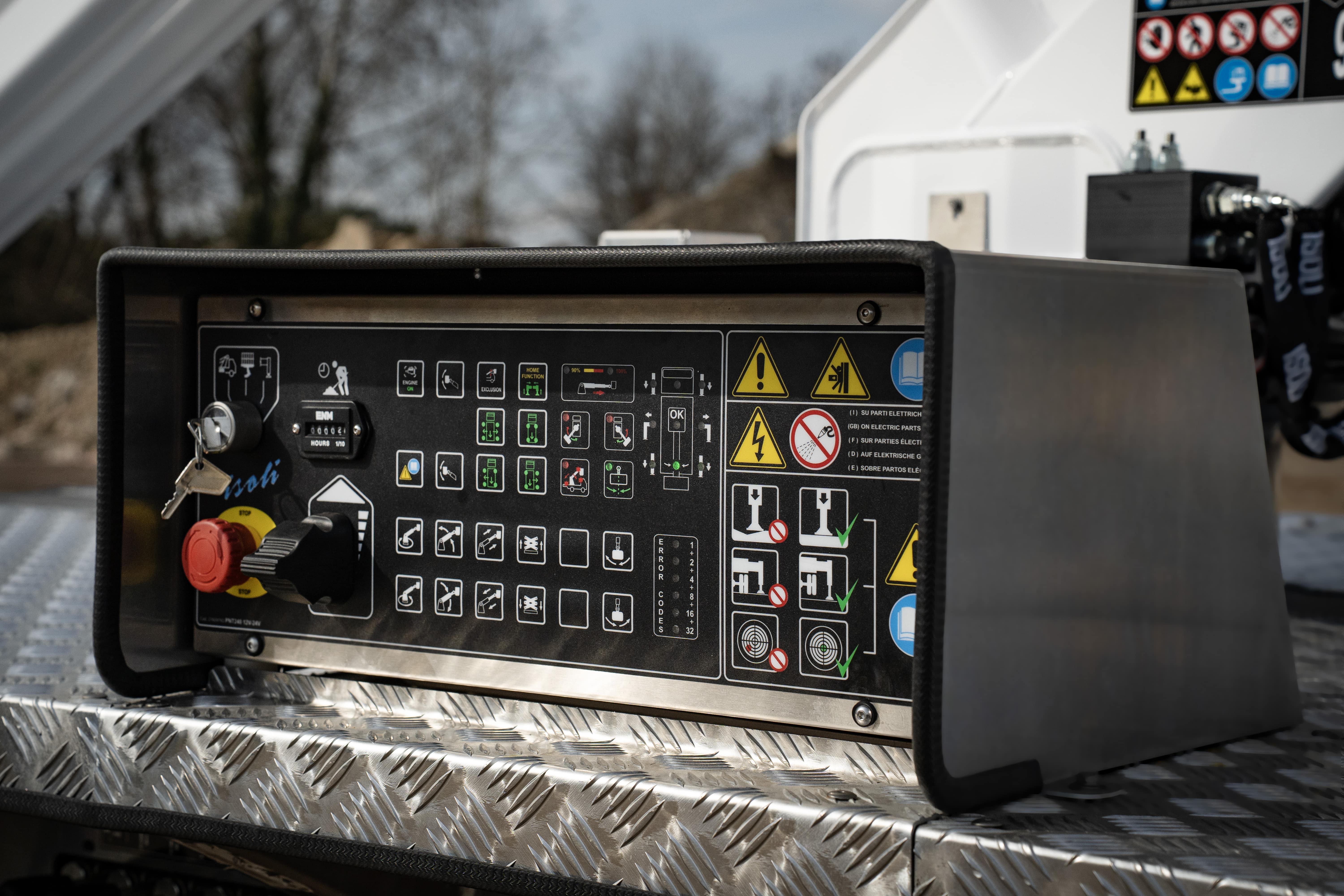

- New simplified control panel
- Engine stop/start in the basket

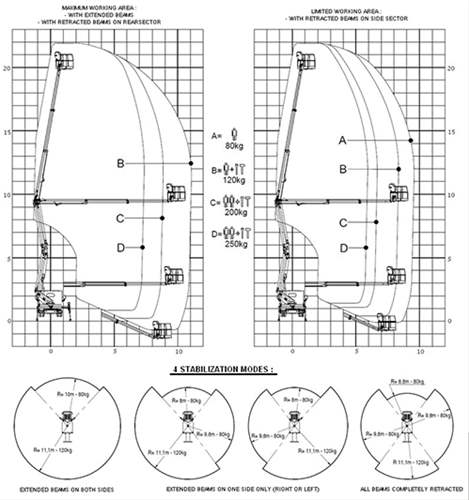

- 4 stabilisation modes
- Assisted turret and basket centring
- Hour meter
- Emergency circuit on manual pump
- Proportional controls on all movements
- Secure access to the work platform
- Hose conveyor chain inside the mast for optimum protection
- Double stabilisation: stabilisers within the footprint / extendable stabilisers at the front right and/or left side
- Rigid PVC protection for controls in the upper position
OPTIONS
- Signalling (tri-flash, 2 flashing lights, strips)
- Insulated low-voltage basket or tubular aluminium
- 220 V circuit in basket
- Storage boxes
- Aluminium side rails
- Tool holder in basket
- Extended warranty
- Maintenance pack
EXAMPLES OF VEHICLES
- Iveco Daily (Wb. 3750)
- Isuzu M21 (Wb. 2760)
Recommended products

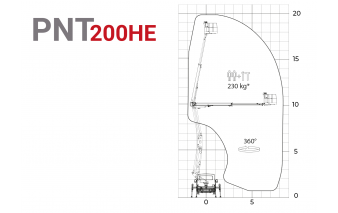

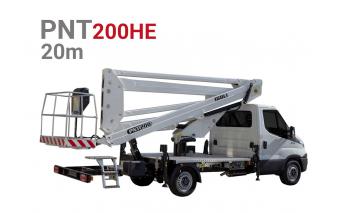

20m Articluated aerial platform on Iveo Daily PNT200 HE
20 Meters Bucket Truck Chassis (65'6")
21m Electric aerial platform on Renault Trucks D18 Wide Z.E Xtenso 4® (Workshop version)
21 Meters Aerial Platform Truck (68’90”)
21m Telescopic aerial platform on Man TGM Xtenso 4® (Workshop version)
21 Meters Truck Aerial Platform (68’90”)

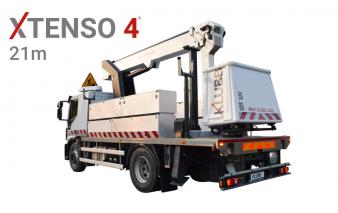

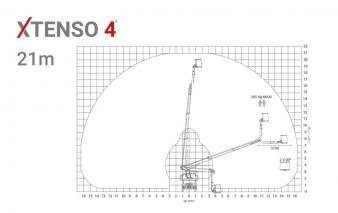

21m Telescopic aerial platform on Man TGM Xtenso 4® (Chassis version)
21 Meters Aerial Bucket Truck (68’90”)

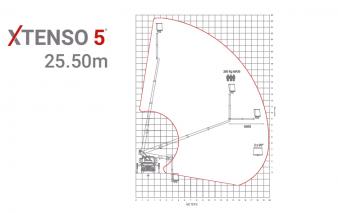

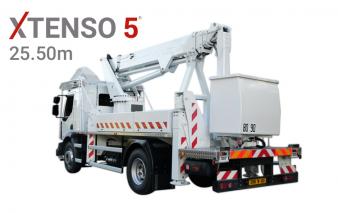

25.50m Telescopic aerial platform on Man TGM Xtenso 5®
