Working Height : 10.00
Offset : 5.00
Rotation : 360
KLUBB Model = PNT 210 JD4
Capacity = 230Kg

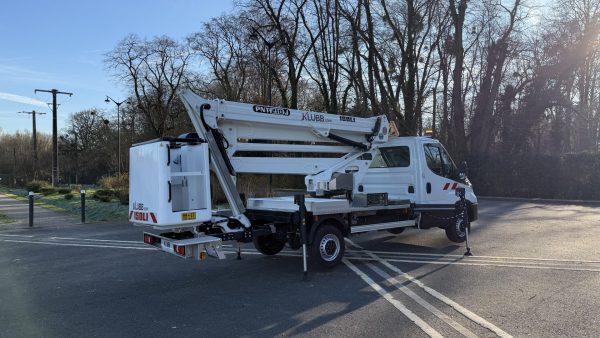

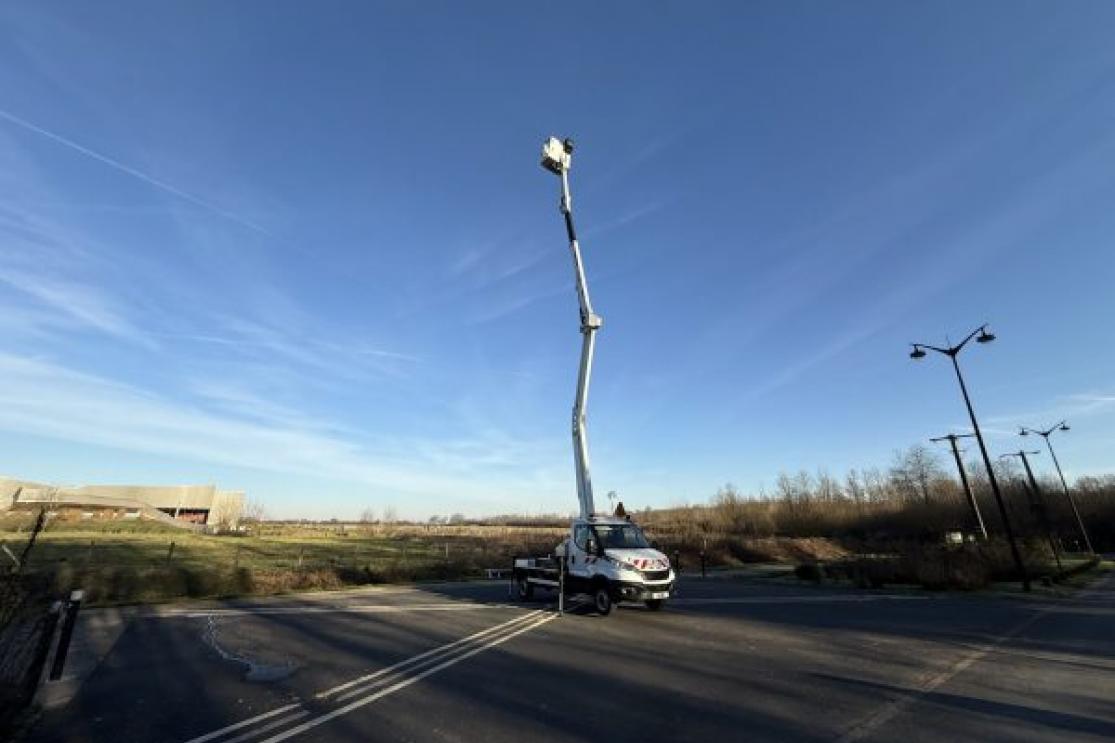

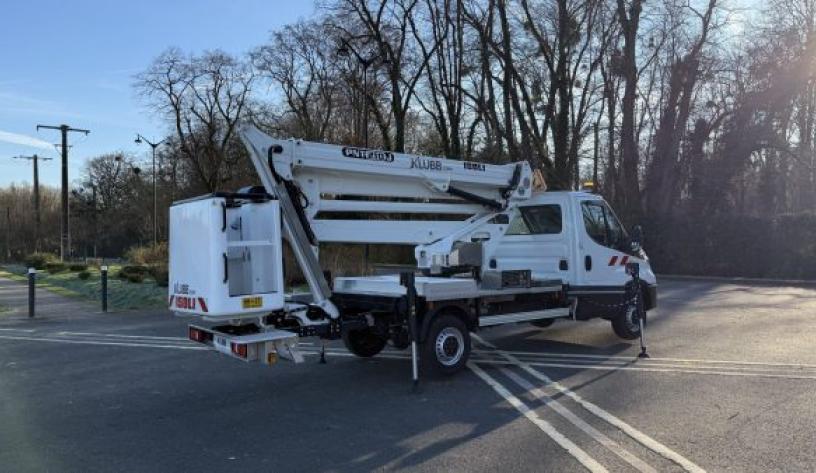

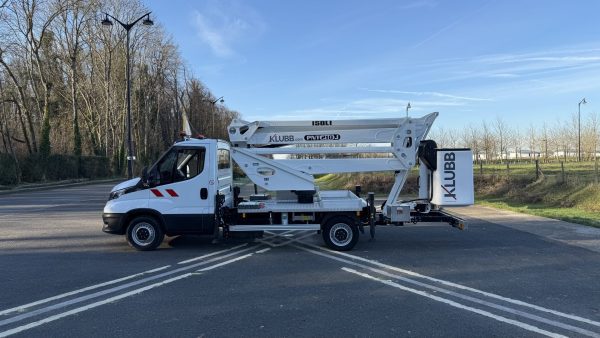

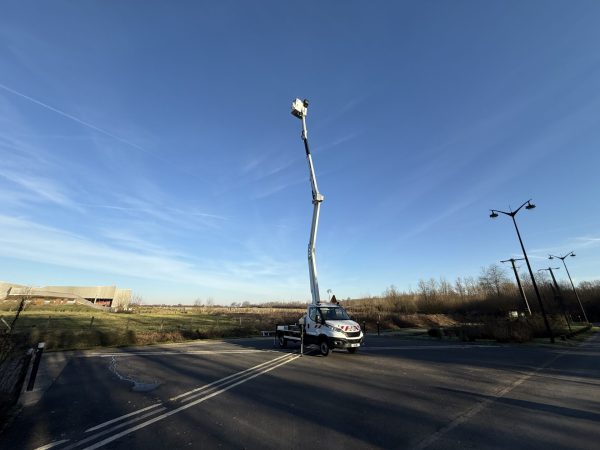

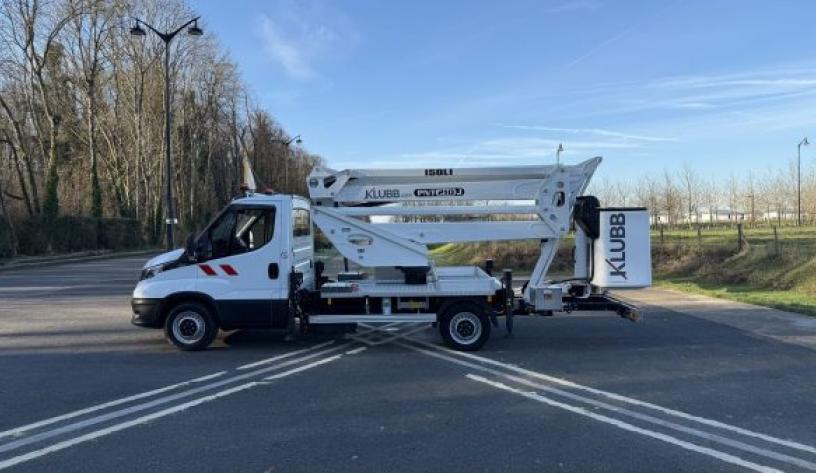

The PNT 210JD4 is an articulated aerial platform mounted on an Iveco Daily 3.5-ton chassis cab with a 3750 mm wheelbase. Built for maintenance, construction, and industrial work, it offers safe and reliable access for tasks at height. With a working height of 20.50 metres and a platform floor height of 18.50 metres, it helps operators work with precision and confidence.

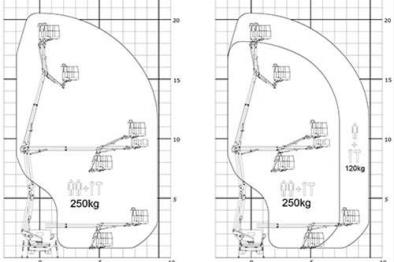

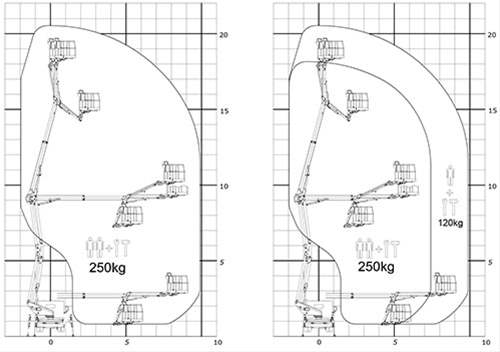

With up to 9.60 metres of outreach, it is well suited to jobs that require flexibility around obstacles, façades, or parapets, thanks to its end jib. The platform can carry up to 250 kg, while a reduced load applies at maximum outreach to ensure safe operation.
Its 360° turret rotation and +/- 90° basket rotation provide excellent manoeuvrability on site. Combined with electro-hydraulic controls and the HE+HE stabilisation system, the PNT 210JD4 delivers smooth movement, strong stability, and efficient performance in a wide range of working environments.
Technical specifications
- Max. working height : 20,50m (67'25")
- Max. working outreach : 10m (32'80")
- Boom rotation : 360°
- Max. working load : 230Kg
- Max. platform height : 18,50m (60'69")
- Outriggers : 4 HE-H shaped
- Basket size : 125 x 75 x 110 cm
- Chassis weight : ≤ 3.5 T
- Arm : Articulated
- Engine : Diesel
- IPAF catgory : 1b
- Lifting mechanism : hydraulic
- Operators : 2
Standard features
- Engine start/stop in nacelle
- Hour meter
- Emergency circuit on manual pump
- Proportional controls on all movements
- Secure access to the work platform
- 220V circuit in a gondola
- Rotating basket 2 x 90°
- Pendulum arm: 120°
- Conveyor chain for hoses inside the mast for optimum protection
- Dual stabilization: stabilizers within the vehicle's footprint for a reduced wheelbase on the road and extendable stabilizers at the front for maximum offset
- Rigid PVC protection for controls in the upper control area
- Pendulum arm
- Hydraulically extendable stabilizers, adjustable to suit the desired dimensions and offset.
Examples of vehicles
- Nissan Cabstar (Wheelbase 3400mm)
- Renault Maxity (Wheelbase 3400mm)
"green pack"
The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
