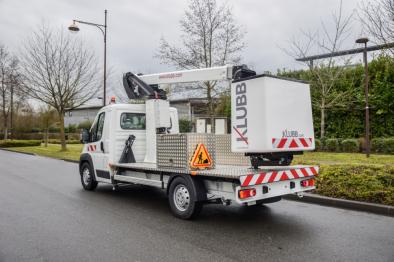

13m Telescopic aerial platform on Renault Maxity

K32

icon working height Working Height : 12.50
icon offset Offset : 7.30
icon rotation Rotation : 360

13 Meters Bucket Truck Chassis (42’65”)

KLUBB Model = K32
Capacity = 120kg, 1 operator, no outriggers 2 men basket with outriggers (option)

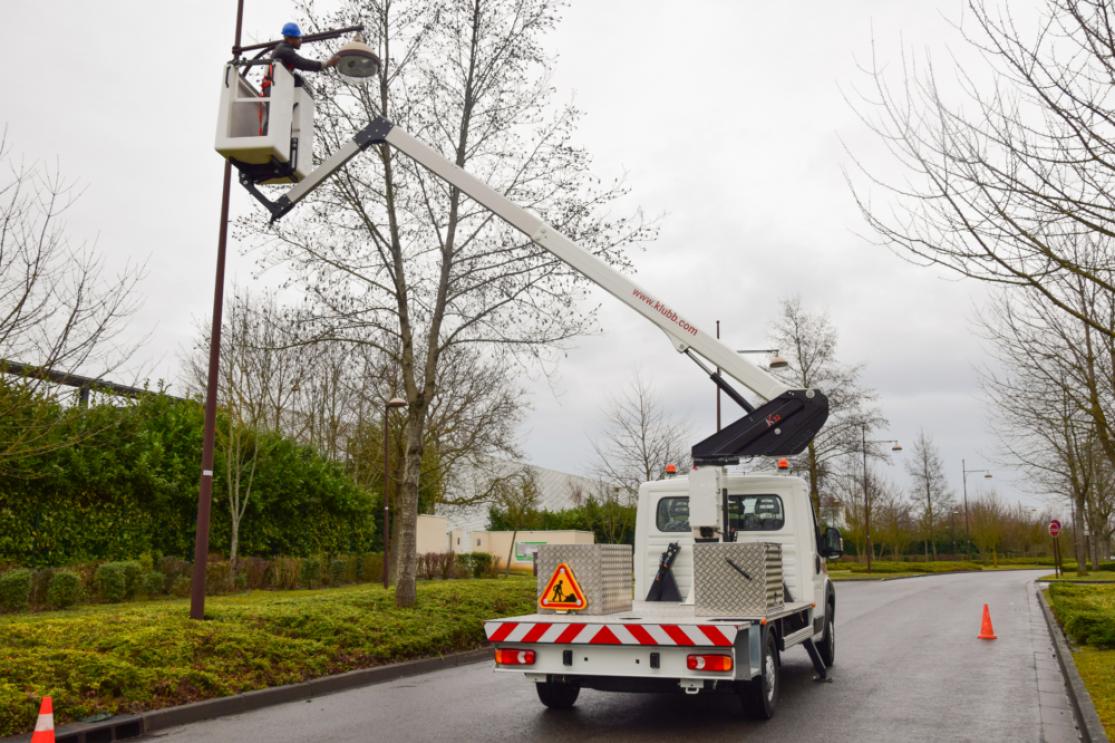

Designed for work at height such as the maintenance of public lighting, the K32 lightweight van can also be adapted to the maintenance of telecom networks.

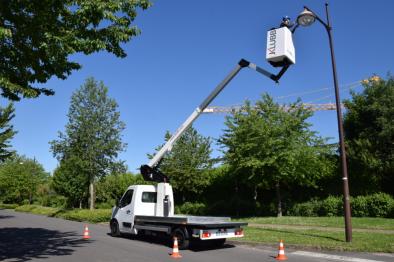

This aerial lift has a telescopic arm which reaches a working height of 12.50m and a horizontal offset of 7.30m without stabilizers. Which gives this platform truck the best performance on the market.

Do you do work at height for the maintenance of telecom networks or for the maintenance of public lighting and you want to buy a new bucket van but you do not know which model to choose? We strongly recommend the new K32 aerial platform.

All the hydraulic cables are integrated inside the aluminum mast. The telescopic boom of the basket is thus devoid of any external component that can be torn off or damaged by tree branches, for example, during operation. If you need more information before buying this van with aerial platform, do not hesitate to contact us.

STANDARD FEATURES

Engine start and stop from basket
Independent emergency electric pump with all the features in the basket for maximum security
Proportional controls
Secure access to the working platform
Hoses and cables are inside the boom structure for maximum protection
Aluminium boom for optimum stability

EXAMPLES OF VEHICLES

RENAULT MAXITY
RENAULT MASTER
NISSAN CABSTAR
IVECO DAILY 35S
MERCEDES SPRINTER
VOLKSWAGEN CRAFTER
FORD TRANSIT
FIAT DUCATO

Technical Specifications

Max. working height : 12.50 m (41'00")
Max. working outreach : 7.30 m (23'11")
Boom rotation : 360°
Max. working load : 120Kg
Max. platform height : 10.50 m (34'50")
Outriggers : no outriggers
Basket size : 86 x 72 x 110 cm
Chassis weight : ≤3.5 T
Arm : Telescopic
Engine : Gas
IPAF category: 1b
Lifting mechanism : hydraulic

icon eco friendly

"green pack"

The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
