Working Height : 18.50
Offset : 11.50
Rotation : 360

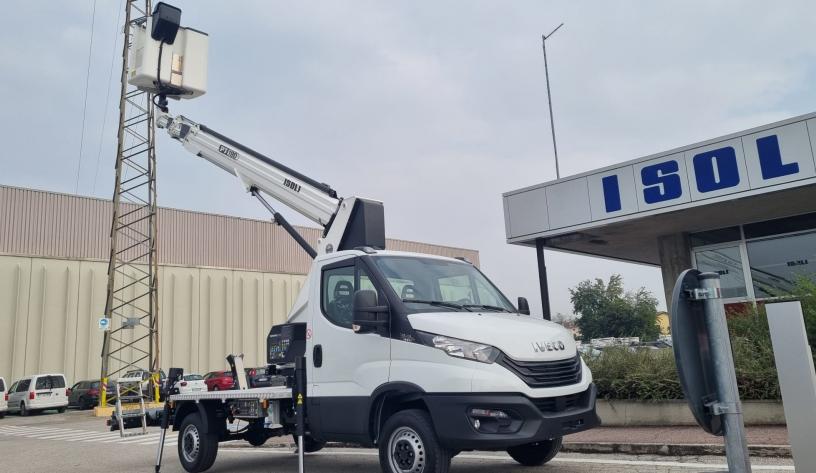

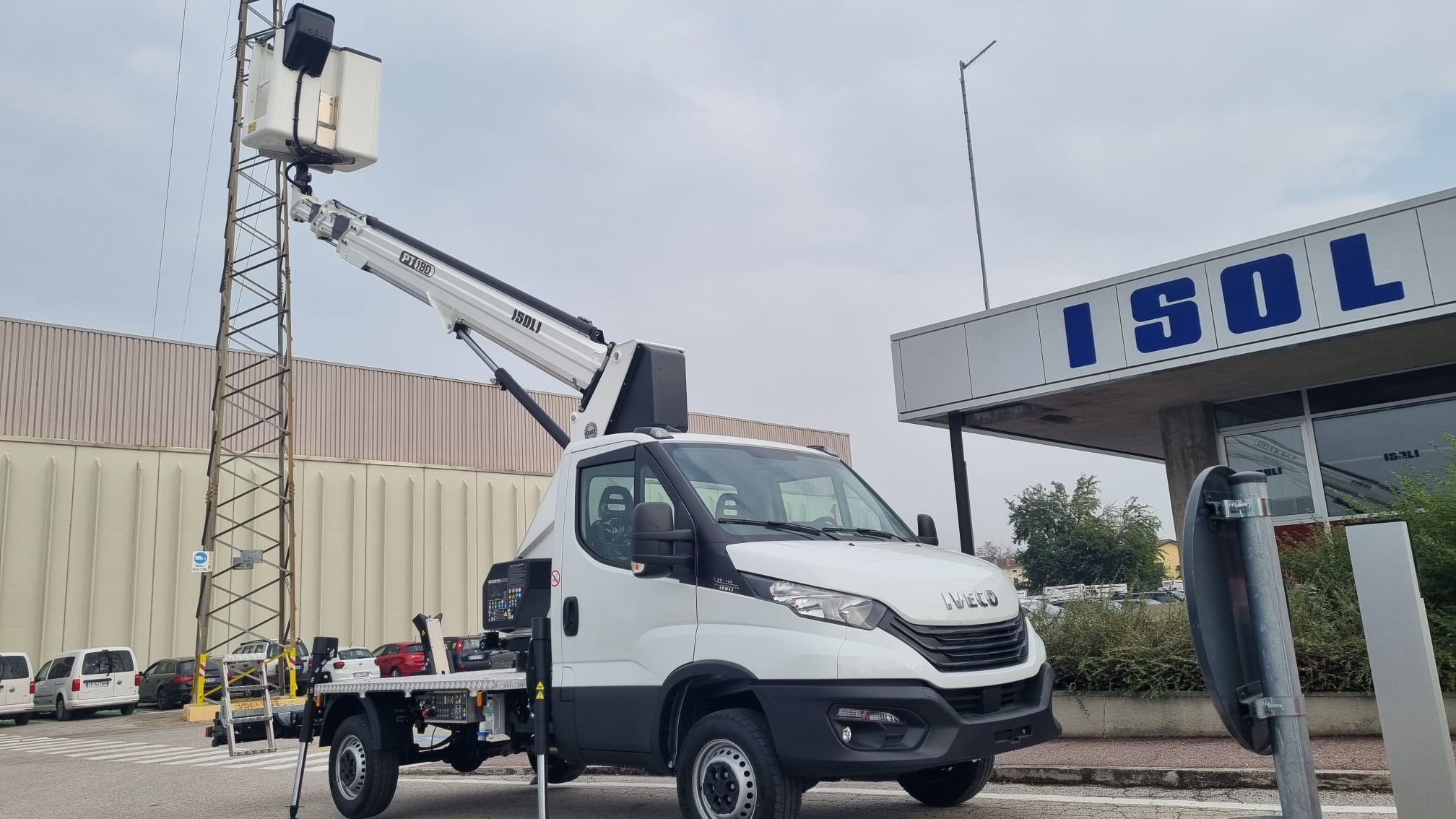

18 Meters Chassis-Mounted Boom Lift
KLUBB Model = PT180Capacity = 300kg

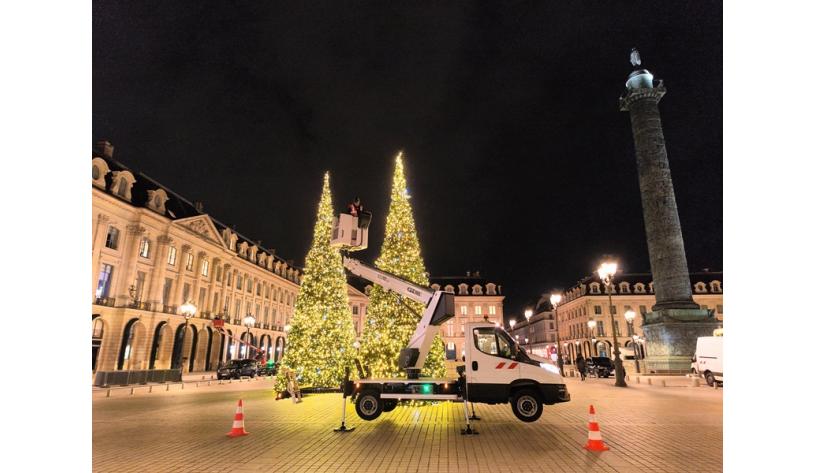

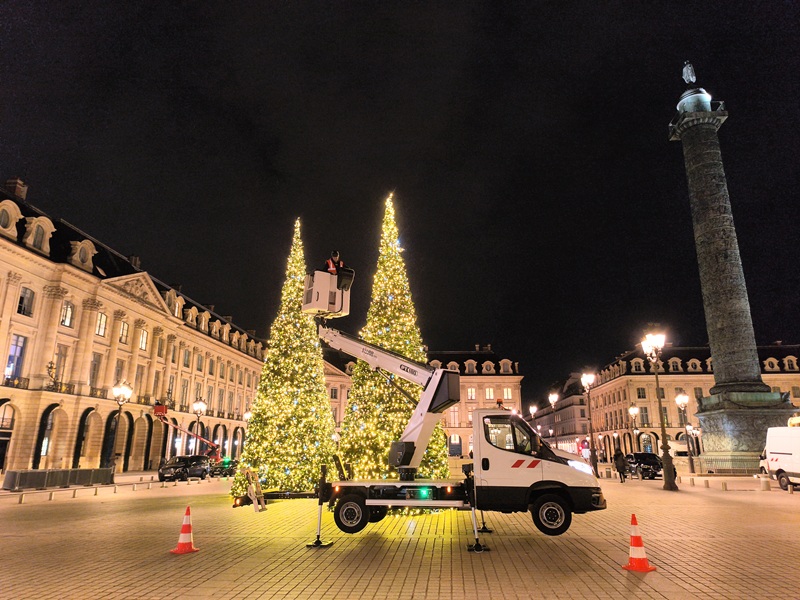

Its four H-H hydraulic stabilisers ensure optimal stability on all types of terrain, while its weight of under 3.5 tonnes guarantees unrestricted mobility. Ideal for tree pruning, urban maintenance, or façade work, it maximises your profitability by diversifying your
range of operations. More than just equipment, the PT 180E is a strategic asset that turns every project into a success.
STANDARD FEATURES
- Engine stop/start from the platform
- Assisted turret and basket centering
- Emergency circuit on manual pump
- Proportional controls on all movements
- Secure access to the work platform
- Conveyor chain for hoses inside the mast for optimum protection
- Rigid PVC protection of upper position controls
- Four stabilisers including two extendable at the front
- 220 V circuit in the platform
TECHNICAL SPECIFICATIONS
Max. working height: 18m (59'05")
Max. working outreach: 11.5m (37'72")
Boom rotation: 360°
Max.working load: 300kg
Max. platform height: 16m (52'49")
Outriggers : 4
Basket size : 125 x 75 x 110cm
Chassis weight : ≤ 3,5 T
Arm : Telescopic
Engine : Diesel
IPAF Licence : 1b
EXAMPLE OF VEHICLES
- IVECO DAILY
- ISUZU M21
"green pack"
The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
