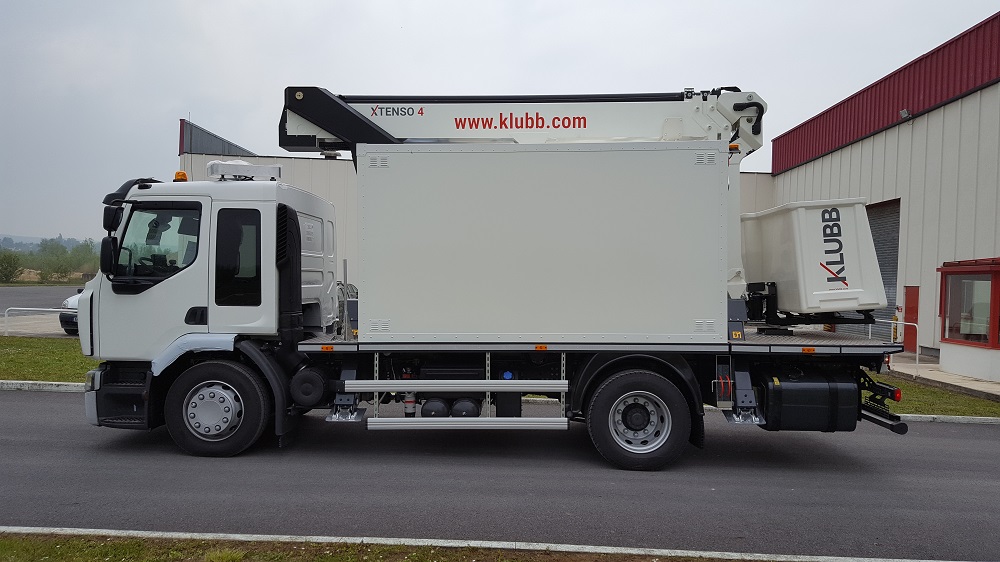

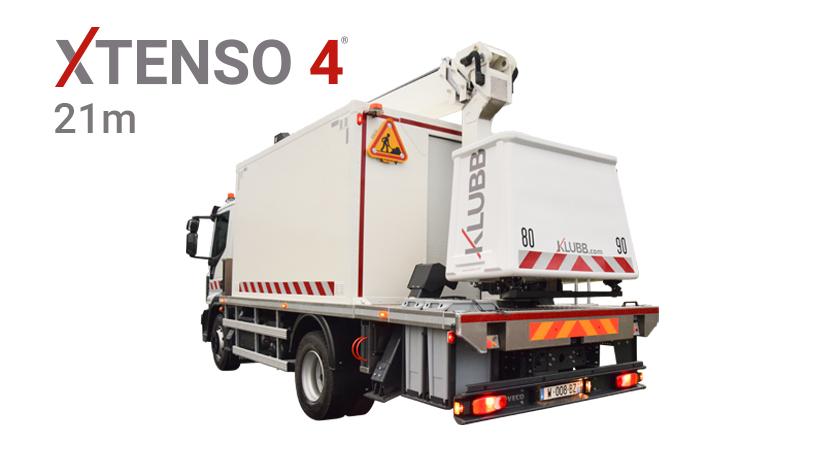

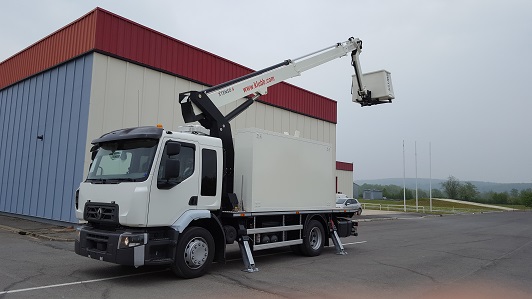

21m Telescopic aerial platform on Man TGM

Xtenso 4® (Workshop version)

icon working height Working Height : 21.00
icon offset Offset : 16.40
icon rotation Rotation : 420

21 Meters Truck Aerial Platform (68’90”)

KLUBB Model = Xtenso 4
Capacity = 265kg, 2 operators With outriggers

The Xtenso 4 Access Platform mounted on a heavy truck reaches a working height of 21 m with lateral outreach of 16.40 m mounted on a heavy truck from 16T.

Infrastructure professionals often work with heavy loads in the basket due to the need to lift tools and materials to high work zones. The Xtenso 4 by KLUBB is designed for outstanding lateral outreach of up to 16.40m with a constant capacity of up to 265 kg, including during use of the telescopic function of the articulated jib.

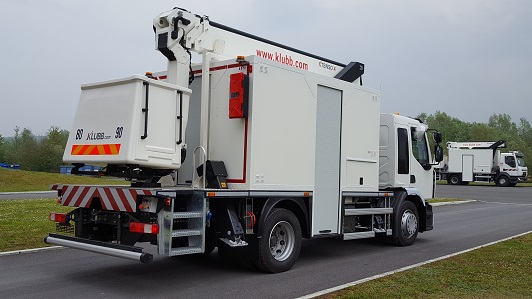

This Access Platform mounted on a heavy truck is equipped with a large workshop where you can store all your tools and material. This workshop can be fitted with tailored racking and shelving that are perfectly adapted to your requirements.

The Xtenso range of truck-mounted platforms comes with articulated telescopic jibs capable of overcoming all types of obstacle (tree branches, roofs, balconies, electric cables, etc.) and which get you as close as possible to your work zone.



Engine start and stop from basket
Stabilization with independent controls in the basket and from the ground
Independant emergency manual pump
Proportional controls on all movements
Secure acess to the working platform
Hoses and cables are inside the boom structure for maximum protection
Automatic centering of the platform and the turret
Lifting arm consisting of a double telescope and a telescopic jib with 180° orientation
Telescopic jib for an overhang of more than 5.10m and allowing 360° access to the ground
Hydraulic rotation of the basket in all positions

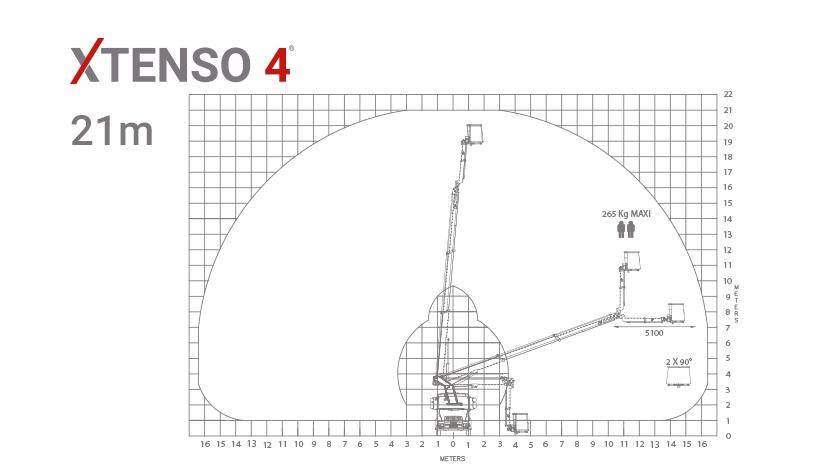

Technical Specifications

Max. working height : 21 m (68'11")
Max. working outreach : 16.40 m (53'10")
Boom rotation : 420°
Max. working load : 265Kg
Max. platform height : 19 m (62'40")
Outriggers : H-Shaped outriggers
Basket size : 89 x 115 x 156 cm
Chassis weight : + 3.5T
Arm : Telescopic
Engine : Gas
IPAF category: 1b
Lifting mechanism : hydraulic

icon eco friendly

"green pack"

The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
