18.50m Telescopic aerial platform on Man TGL

Xtenso 3® (Workshop version)

icon working height Working Height : 18.50
icon offset Offset : 13.90
icon rotation Rotation : 420

18.5 Meters Truck Mounted Platform (60’70”)

KLUBB Model = Xtenso 3
Capacity = 265kg, 2 operators With outriggers

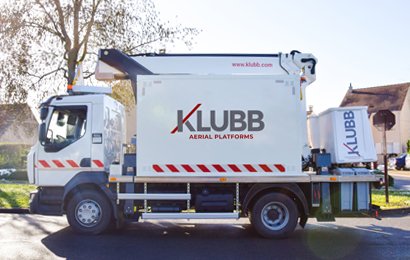

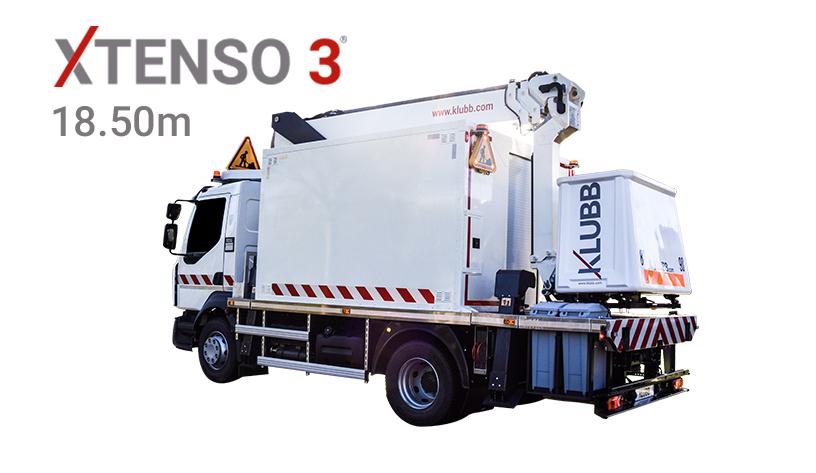

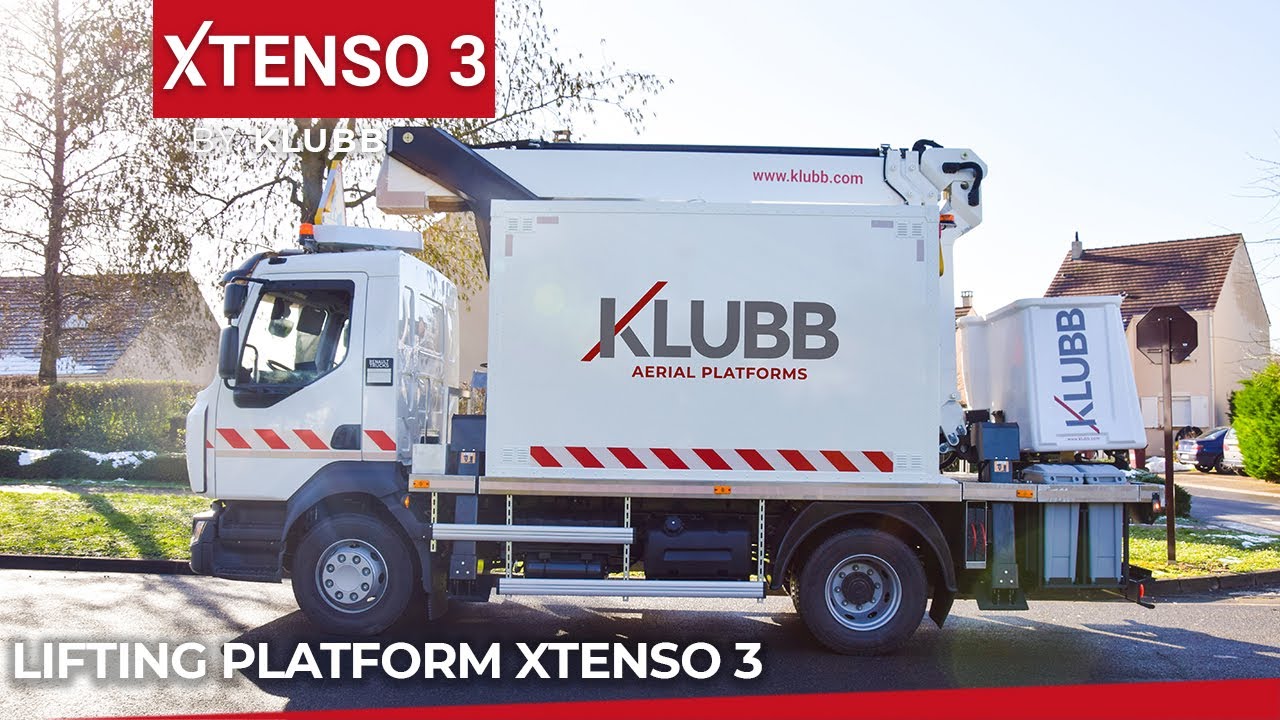

The XTENSO 3 on a heavy truck has a telescopic jib that allows you to reach a working height of 18.50m. It also has an exceptional lateral outreach of 13.90m with 265kg in the basket.

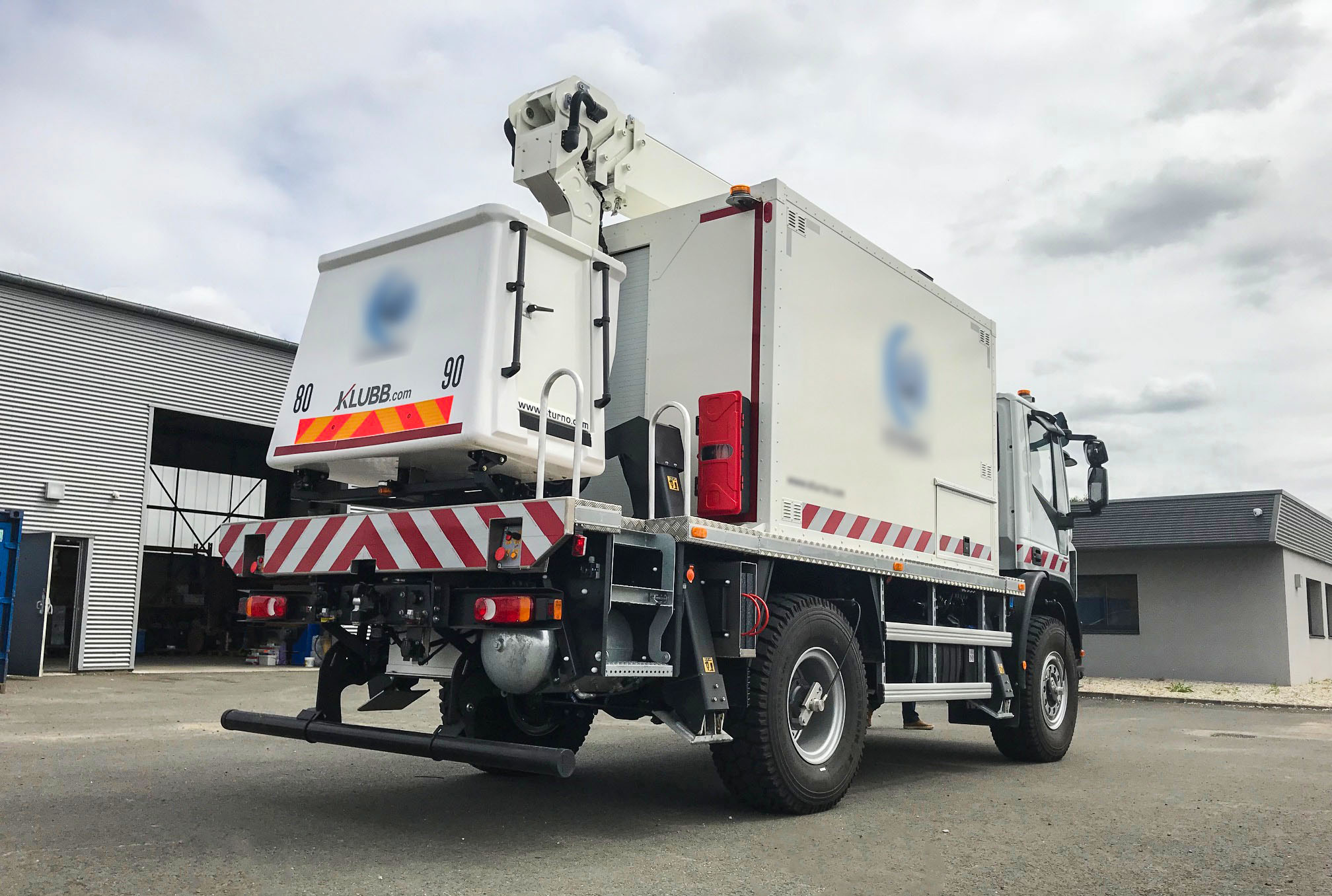

Specially designed for network interventions, this truck mount meets the requirements of street lighting or telecom maintenance companies etc … This aerial lift is all the more interesting as it has been fitted with a large workshop.

This workshop will allow you to load all your tools, work equipment and materials. It’s a real workspace where you can install storage space like wardrobes or shelves. This space is very convenient for securely transporting everything you need during your work at height.

If this model of lift does not suit you, know that the XTENSO 3 exists also in a chassis version without workshop.



Engine start and stop from basket
Stabilization with independent controls in the basket and from the ground
Independant emergency manual pump
Proportional controls on all movements
Secure acess to the working platform
Hoses and cables are inside the boom structure for maximum protection
Automatic centering of the platform and the turret
Lifting arm consisting of a double telescope and a telescopic jib with 180° orientation
Telescopic jib for an overhang of more than 5.10m and allowing 360° access to the ground
Hydraulic rotation of the basket in all positions



Technical Specifications

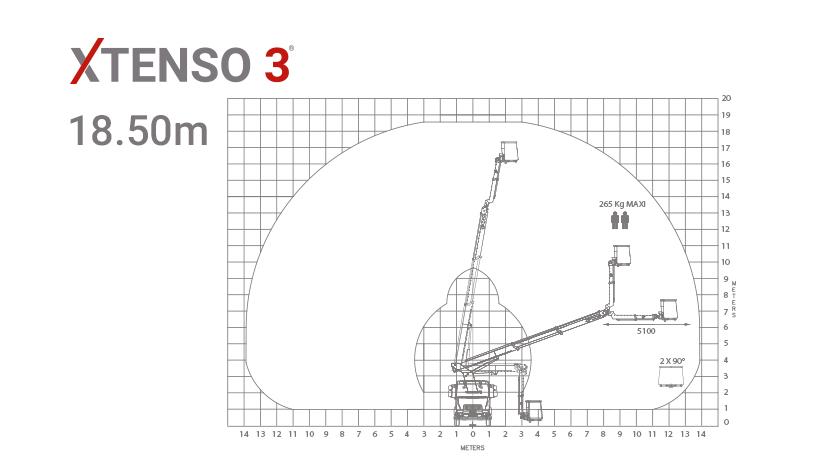

Max. working height : 18.50 m (60'80")
Max. working outreach : 13.90 m (45'70")
Boom rotation : 420°
Max. working load : 265Kg
Max. platform height : 16.50 m (54'20")
Outriggers : H-Shaped outriggers
Basket size : 89 x 115 x 156 cm
Chassis weight : + 3.5T
Arm : Telescopic
Engine : Gas
IPAF category : 1b
Lifting mechanism : hydraulic

icon eco friendly

"green pack"

The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
