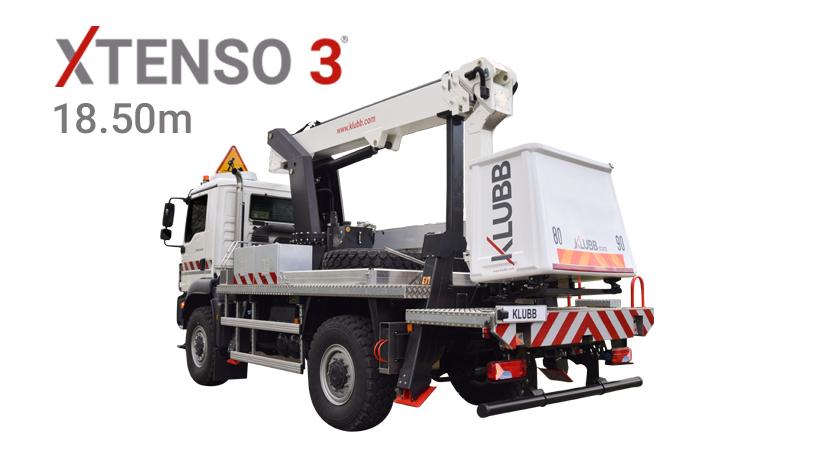

18.50m Telescopic aerial platform on Man TGL

Xtenso 3® (Chassis version)

icon working height Working Height : 18.50
icon offset Offset : 13.90
icon rotation Rotation : 420

18.5 Meters Truck Aerial Platform (60’70”)

KLUBB Model = Xtenso 3
Capacity = 265kg, 2 operators With outriggers

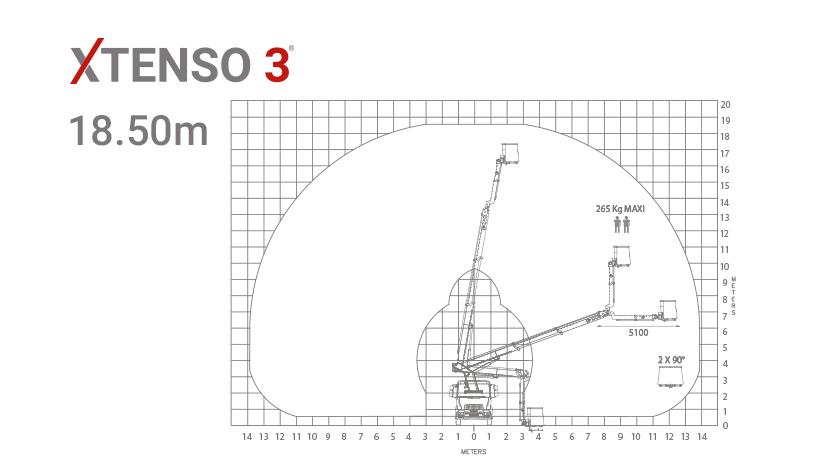

The Xtenso 3 model is an 18.5m telescopic platform with lateral outreach of 13.90 m, designed to be mounted on a heavy truck from 14T using the chassis.

This telescopic platform comes with unrestricted lateral outreach, three-operator and 265 kg basket capacity and a 180° articulated telescopic jib with an up and over height of 5.10m, allowing 360° ground access.

This jib is capable of overcoming all types of obstacle (tree branches, roofs, balconies, electric cables, etc.) and gets you as close as possible to your work zone. Operators can then work comfortably and in complete safety while keeping excellent flexibility of movement.

Don’t forget, even this telescopic platform on truck can be fitted with the Green Pack option: battery operated platform, engine turned off in order to save fuel and respect the environment.



STANDARD FEATURES

Engine start and stop from basket
Stabilization with independent controls in the basket and from the ground
Independant emergency manual pump
Proportional controls on all movements
Secure acess to the working platform
Hoses and cables are inside the boom structure for maximum protection
Automatic centering of the platform and the turret
Lifting arm consisting of a double telescope and a telescopic jib with 180° orientation
Telescopic jib for an overhang of more than 5.10m and allowing 360° access to the ground
Hydraulic rotation of the basket in all positions

EXAMPLES OF VEHICLES

MAN TGL
MAN TGM
IVECO EUROCARGO
RENAULT D
MERCEDES ATEGO
MERCEDES UNIMOG

Technical Specifications

Max. working height : 18.50 m (60'80")
Max. working outreach : 13.90 m (45'70")
Boom rotation : 420°
Max. working load : 265Kg
Max. platform height : 16.50 m (54'20")
Outriggers : H-Shaped outriggers
Basket size : 89 x 115 x 156 cm
Chassis weight : + 3.5T
Arm : Telescopic
Engine : Gas
IPAF category : 1b
Lifting mechanism : hydraulic

icon eco friendly

"green pack"

The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
