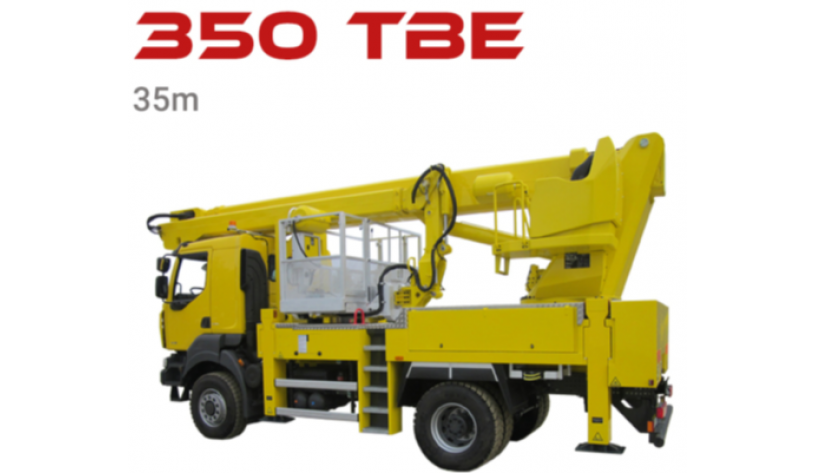

35m Telescopic aerial platform on 19t truck

350 TBE

icon working height Working Height : 35.00
icon offset Offset : 23.50
icon rotation Rotation : 420

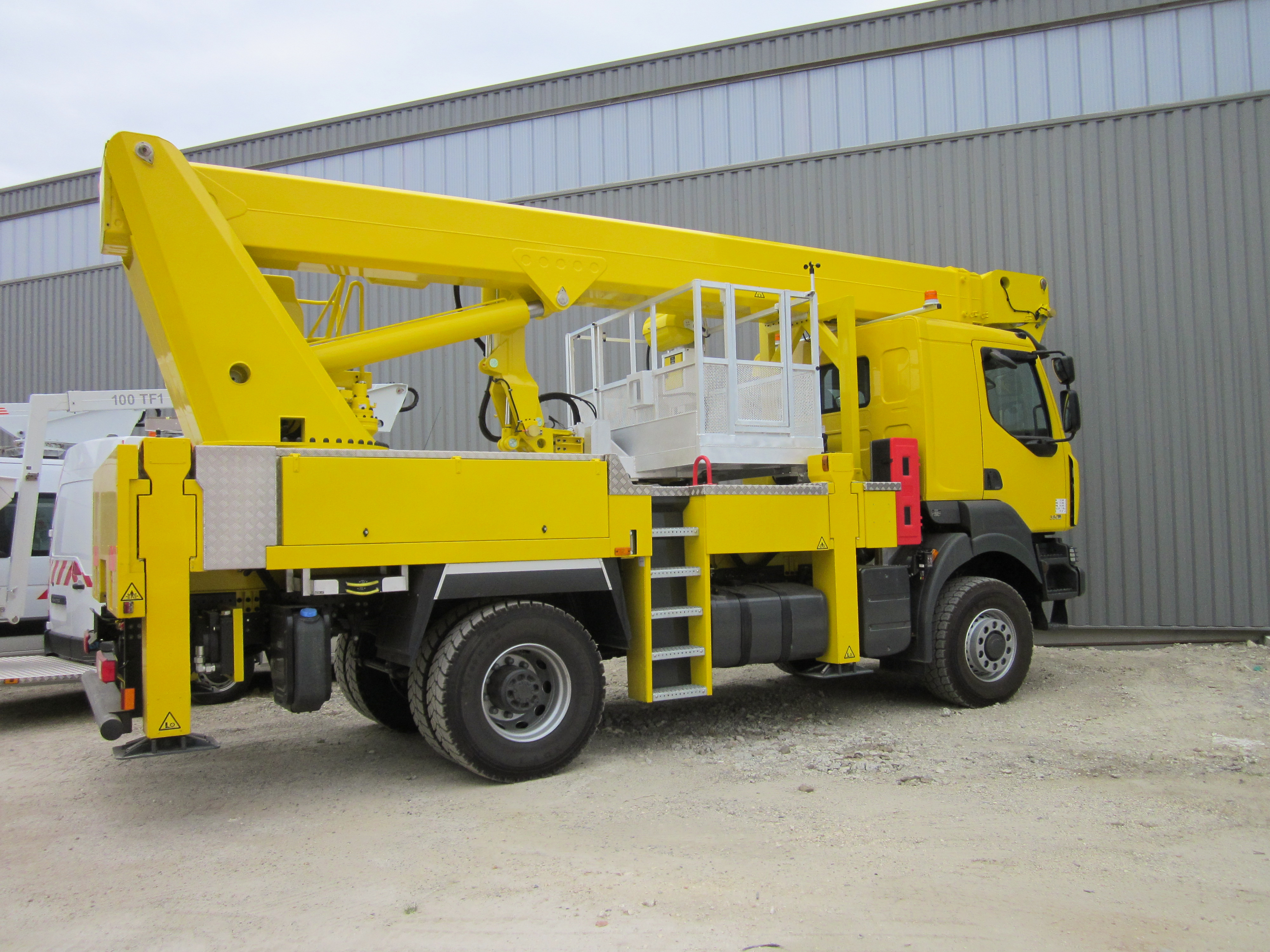

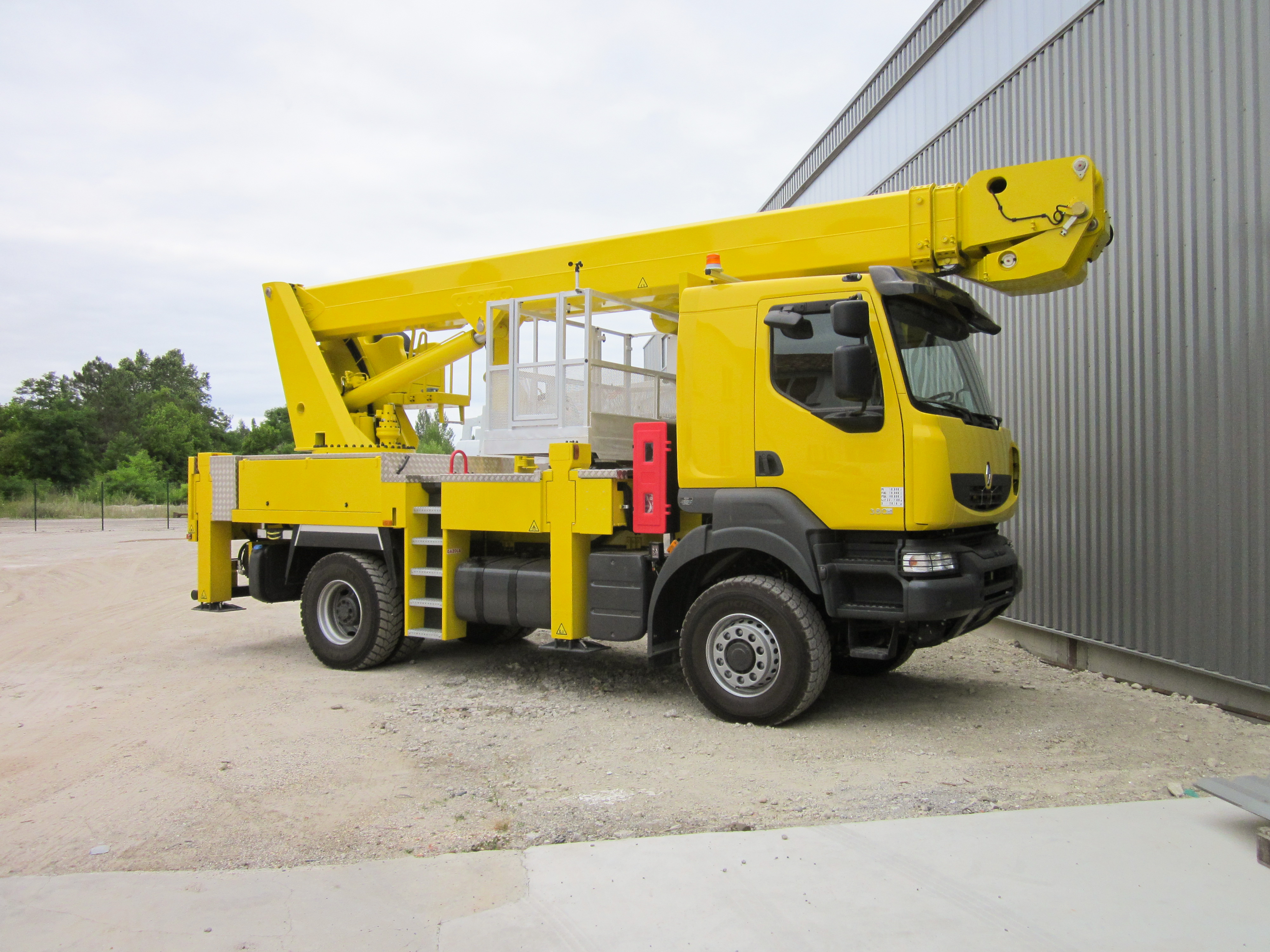

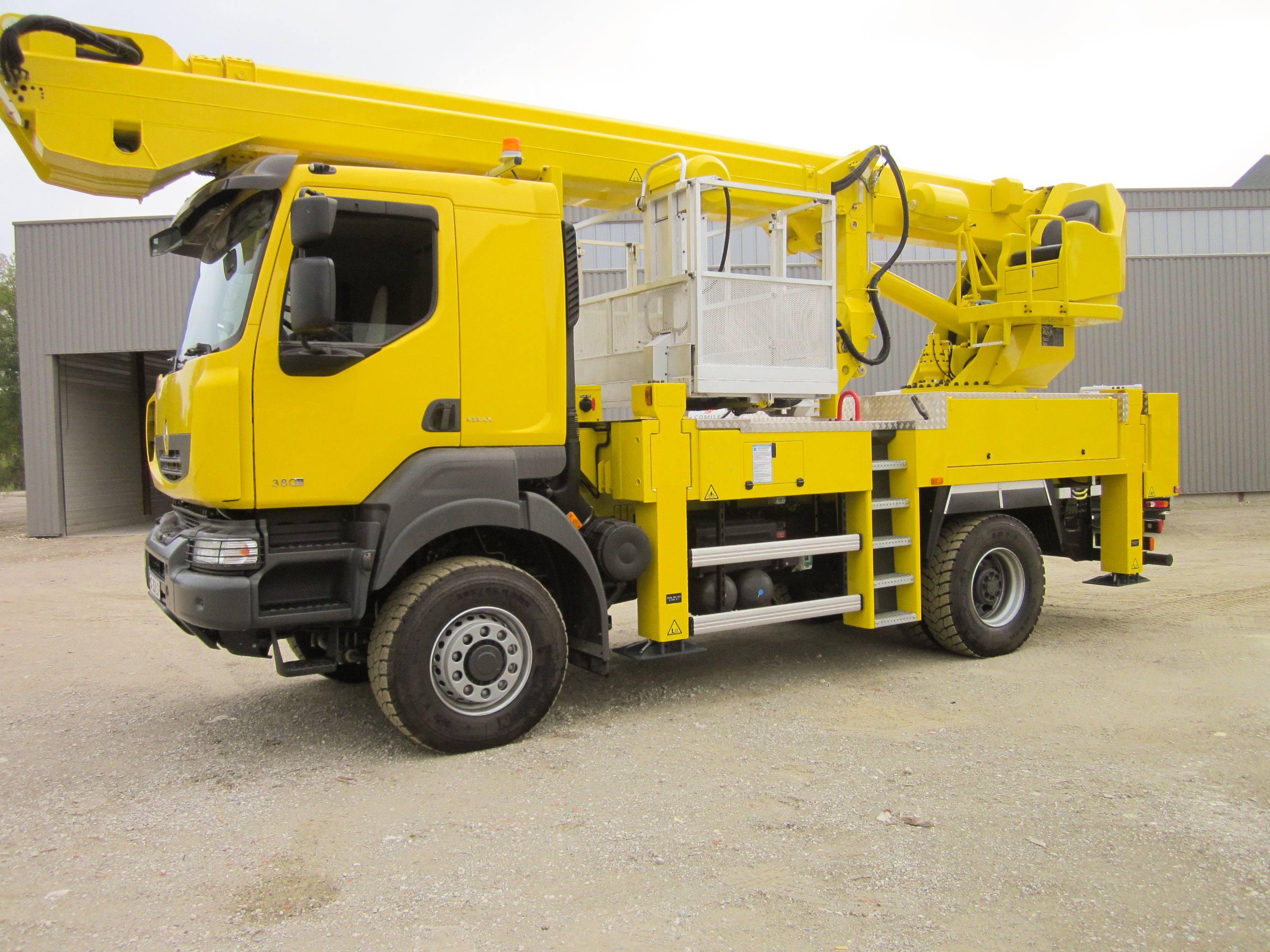

35 Meters Aerial Bucket Truck (114’29”)

KLUBB Model = 350 TBE
Capacity = 500kg, 5 operators With outriggers

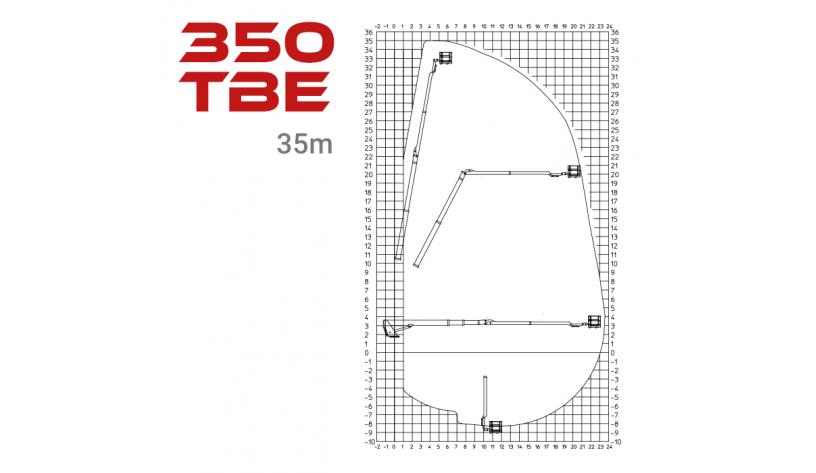

With a working height of 35 m and an outreach of 25.60 m, the truck mounted lift 350 TBE is a particularly versatile machine and designed to carry out many works at high heights in complete safety.

Its arm composed of 4 sections including 3 telescopes and which ends in a pendulum arm with Jib, allows to avoid all types of obstacles and to position itself as close to the work area without having to move the vehicle.

Its basket can accommodate up to 500kg, which allows you to work in a team and bring the equipment necessary for interventions. You can also carry out overhanging work (11.30m) to intervene under bridges for example.

Pruning, maintenance of historic buildings (churches), works of networks, maintenance of wind turbines, … whatever your activity, this truck mounted lift will meet your needs to intervene at great height.



Engine start and stop from basket
Stabilization with independent controls from the ground
Independant emergency electrical pump
Proportional controls on all movements
Secure acess to the working platform
Hoses and cables are inside the boom structure for maximum protection
Automatic centering of the platform and the turret
Lifting arm consisting of a triple telescope and a telescopic pendulum arm with 180° orientation+ jib
Telescopic jib for an overhang of 11,30m
Hydraulic rotation of the basket in all positions


 All kind of trucks from 19t

For vehicle options, please contact us before ordering Installation on lower tonnages, please contact us;

icon eco friendly

"green pack"

The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
