Working Height : 29
Offset : 17
Rotation : 400
KLUBB Model = PNT 290 H
Capacity = 250kg

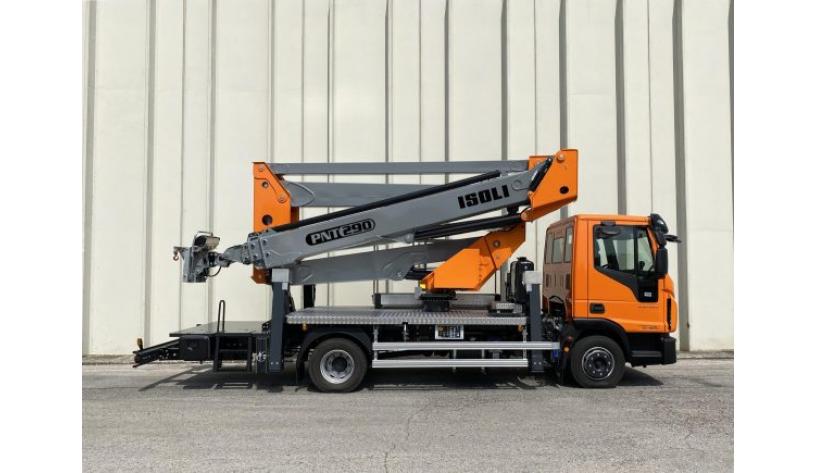

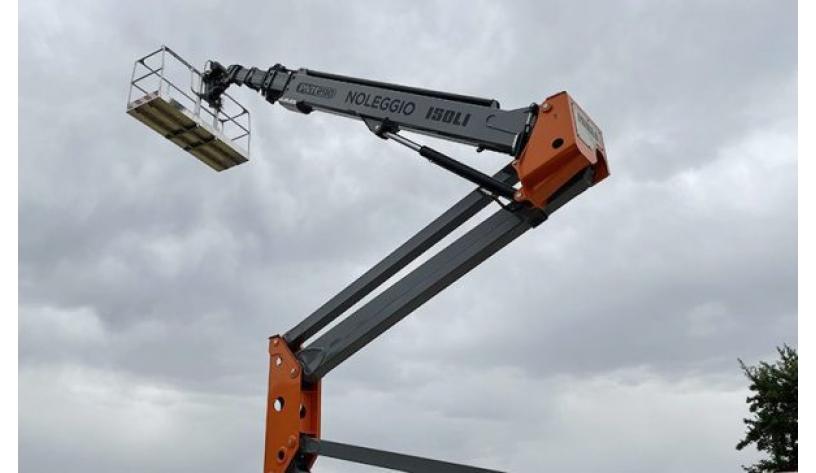

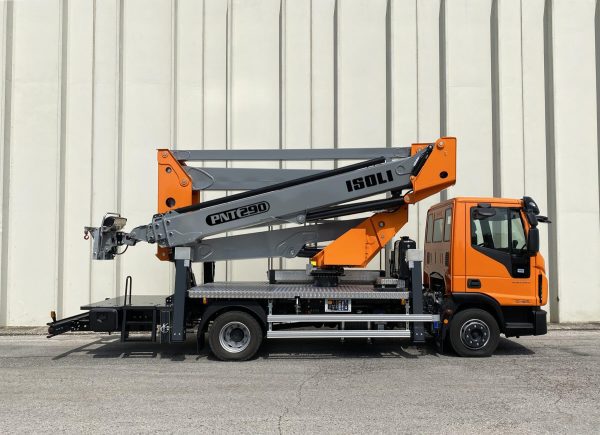

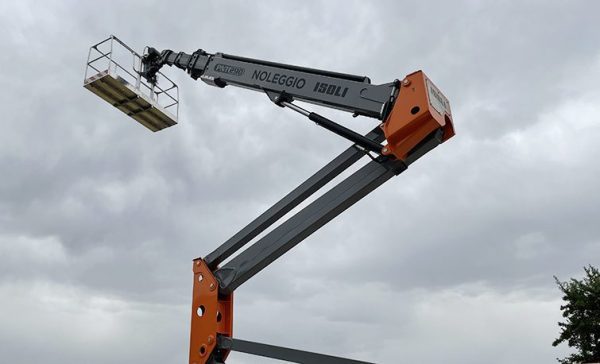

The PNT 290 is an articulated aerial platform designed for working at height. With a working height of 29 metres and exceptional horizontal outreach, it is ideal for a wide range of tasks such as maintenance, construction, and industrial operations.
Compact and high-performing, this truck-mounted aerial platform supports a 250 kg load, delivering both safety and efficiency. Its unique outriggers and intuitive controls ensure optimal working conditions, even for non-expert users. In addition, its removable basket can be replaced with a hook, allowing it to be used as a crane with ground remote control.

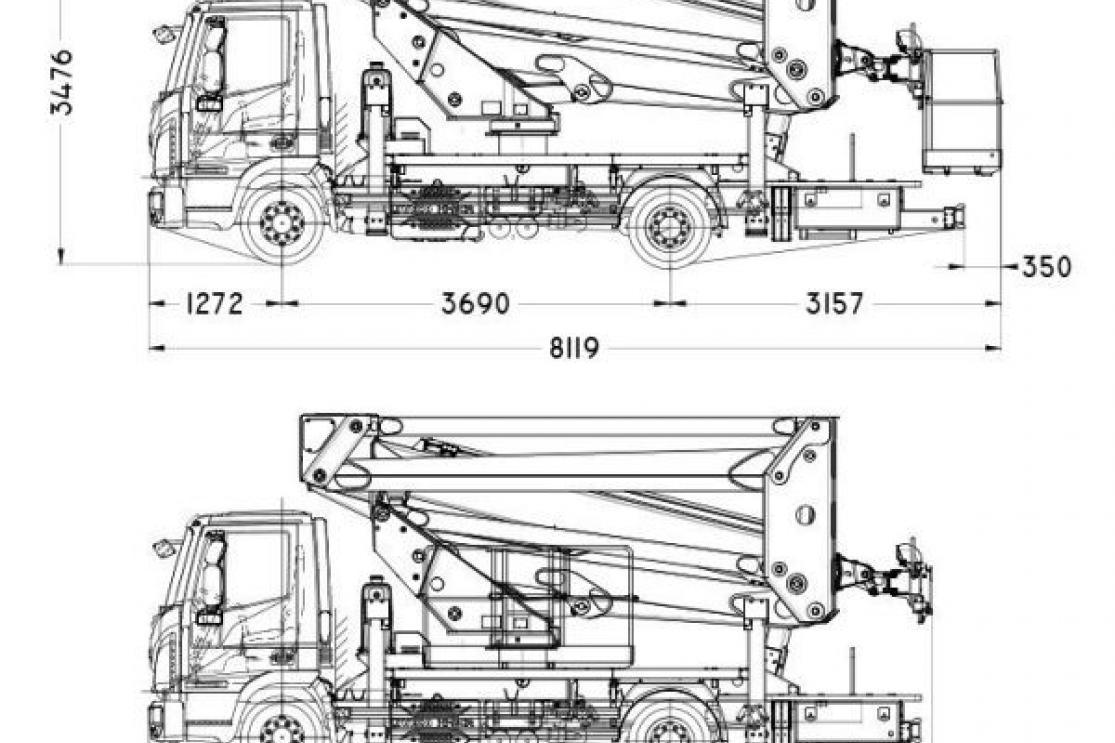

Technical specifications

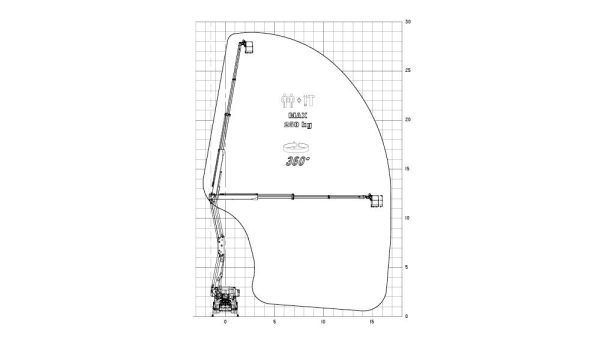

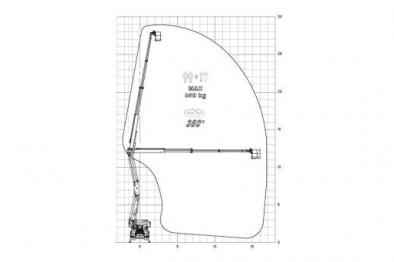

- Max. working height : 29 m
- Max. working outreach : 17 m
- Boom rotation : 400°
- Max. working load : 250 Kg
- Max. platform height : 27 m
- Outriggers : 4 H-shaped
- Basket size : 220 x 75 x 110 cm
- Chassis weight : 11 T
- Arm : Articulated
- Engine : Diesel
- IPAF catgory : 1b
- Lifting mechanism : hydraulic
- Operators : 2
Examples of vehicles
- Iveco Eurocargo
- Renault D16
Standard features
- New simplified control station
- Engine start/stop in nacelle
- 2 stabilization modes
- Assisted centering, turret and basket
- Emergency circuit on manual pump
- Proportional controls on all movements
- Secure access to the work platform
- Rigid PVC protection for controls in the upper control area
"green pack"
The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
