Working Height : 14.00
Offset : 9.50
Rotation : 360
KLUBB Model = E15P2
Capacity = 240kg

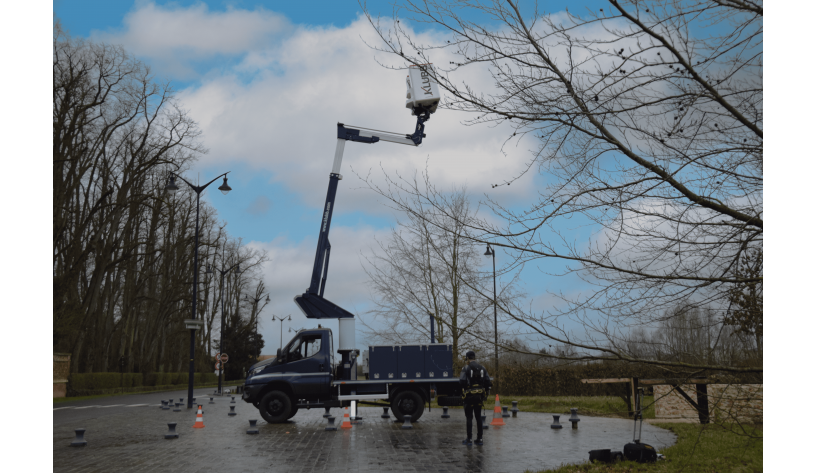

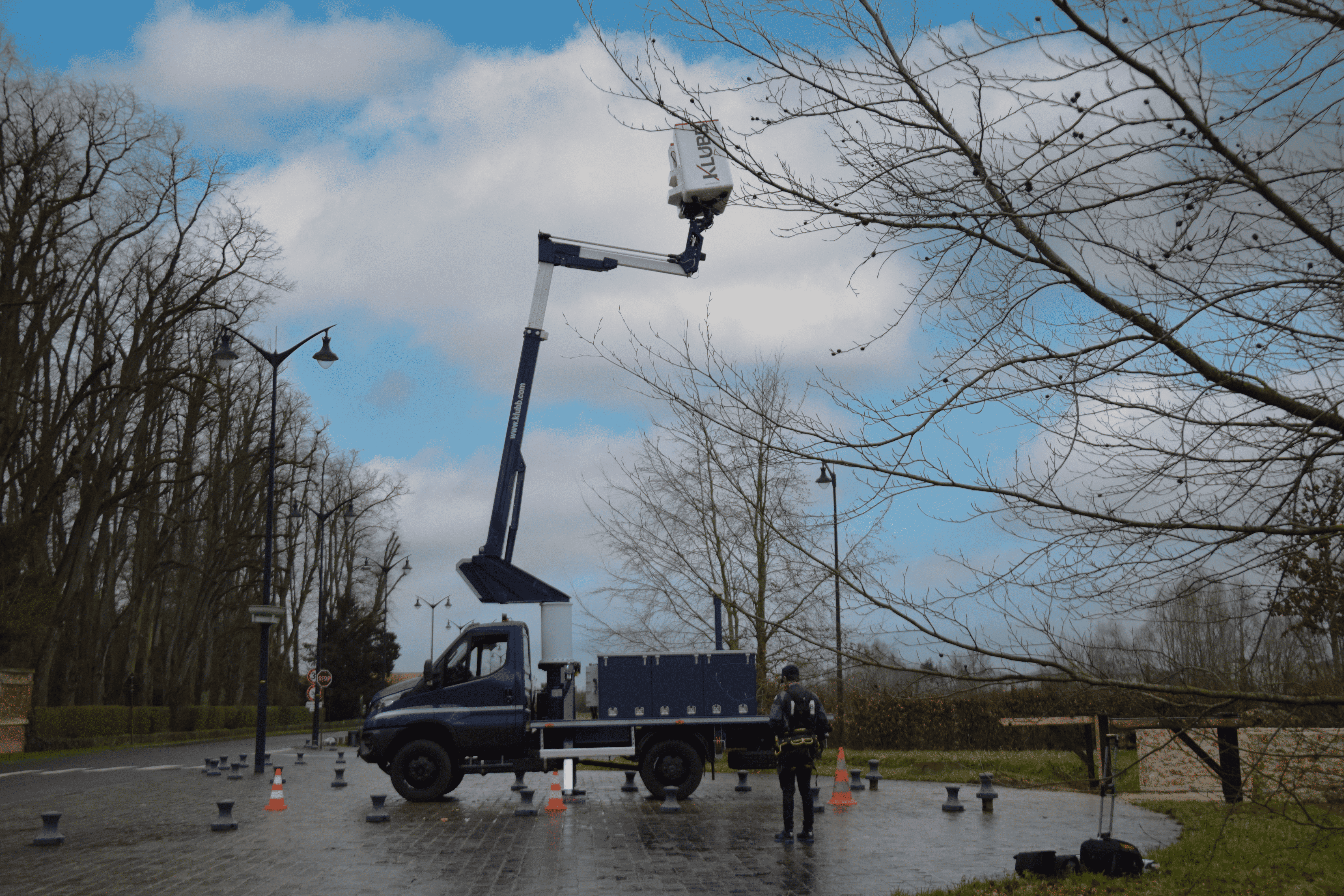

Discover our cutting-edge elevating platform! Ultra-efficient and compact, this insulated telescopic aerial work platform withstands voltages up to 46 kV (compliant with ANSI 92.2 standard), ensuring optimal protection for all your specialised operations. Offering a 200 kg payload capacity, ample storage compartments and minimal footprint during stabilisation (with merely 30 cm of lateral deployment), it represents an unparalleled technical solution in its category!
Technical specifications
- Max. working height : 14.50m (60'60")
- Max. working outreach : 9.10m
- Boom rotation : 360°
- Max. working load : 240Kg
- Max. platform height : 12.50m
- Outriggers : 2 A-framed
- Basket size : 125 x 75 x 110 cm
- Chassis weight : > 3.5T
- Arm : Telescopic
- Engine : Diesel
- IPAF catgory : 1b
- Lifting mechanism : hydraulic
- Rated Voltage of Insulating boom : 46kV
- Rated Voltage of Aerial Device : 46kV
- Wind Speed : 45km/h
- Slope : 15% (8.5°)
- Tilt : 8.75% (5°)
Standard features
- Basket rotation 2x80°
- Compliant with ANSI 92.2 standard
- Independent emergency pump
- Wireless upper controls
- Stabiliser extension within chassis width
- Insulated fibreglass boom
Examples of vehicles
- Ford Transit 3.5T L2H2
- Iveco Daily 5T L2H2
"green pack"
The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
