Working Height : 11.30
Offset : 5.00
Rotation : 360
11 Meters Bucket Truck Chassis (36’09”)
KLUBB Model = K26 HiLuxCapacity = 120kg, 1 operator, no outriggers

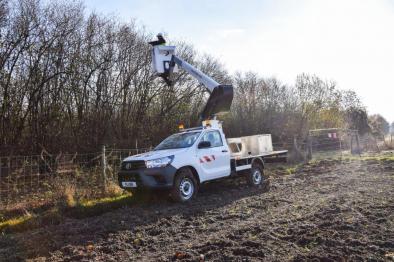

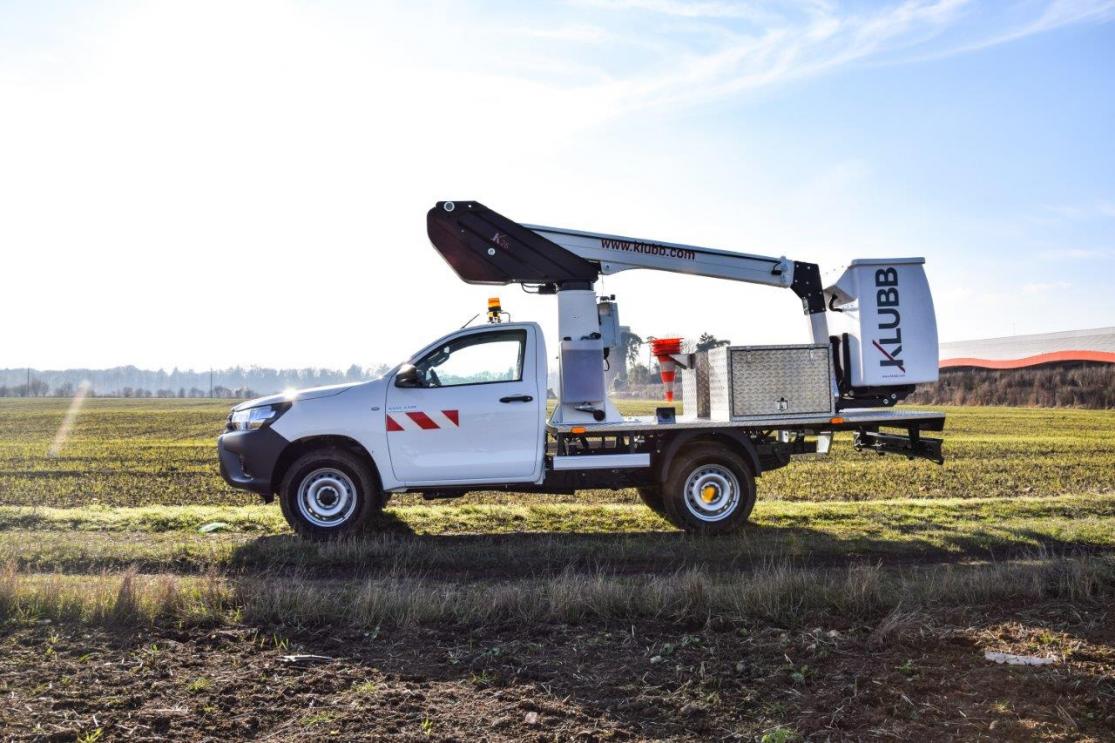

The K26 telescopic aerial platform mounted on a Toyota HiLux pick-up is designed to work on difficult surfaces. This telescopic boom lift mounted on a pick-up can work up to 11.30m high with an offset of 5m.
Thanks to its performance and robustness, this pick-up platform Toyota HiLux is particularly suitable for rough terrain. With its anti-corrosion aluminum boom, this model will also be perfectly suited to the most extreme weather conditions.
EXAMPLES OF VEHICLES
TOYOTA HiLux
TOYOTA HZJ79L
For vehicle options, please contact us before ordering
STANDARD FEATURES
* 1 man basket (120kg) without outriggers
* 2 man basket (200kg) with outriggers
Engine stop / start in basket
Hour counter
Alternate circuit on independent electric pump with all the functions in the basket for maximum safety.
Lastest innovation, an aluminum boom for optimal stability
Proportional controls on all movements
Secure access to the work platform
Rigid protective cover for controls in high position
Technical Specifications
Max. working height : 11.30 m (36'10")
Max. working outreach : 5.20 m (16'40")
Boom rotation : 360°
Max. working load : 120Kg
Max. platform height : 9.30 m (29'50")
Outriggers : no outriggers
Basket size : 72 x 86 x 110 cm
Chassis weight : ≤3.5 T
Recommended products
"green pack"
The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
