Working Height : 10.50
Offset : 4.80
Rotation : 360
KLUBB Model = K20L 100% electric
Capacity = 120kg, 1 operator, no outriggers
XL battery pack equipped (75kwh), this 100% electric aerial work platform on an Peugeot e-Expert van will surprise you with its 330km WLTP (*) autonomy on the road, but also during intervention with its 32 work cycles in electric mode.

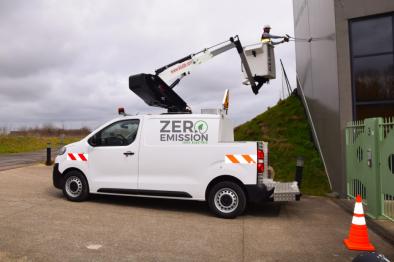

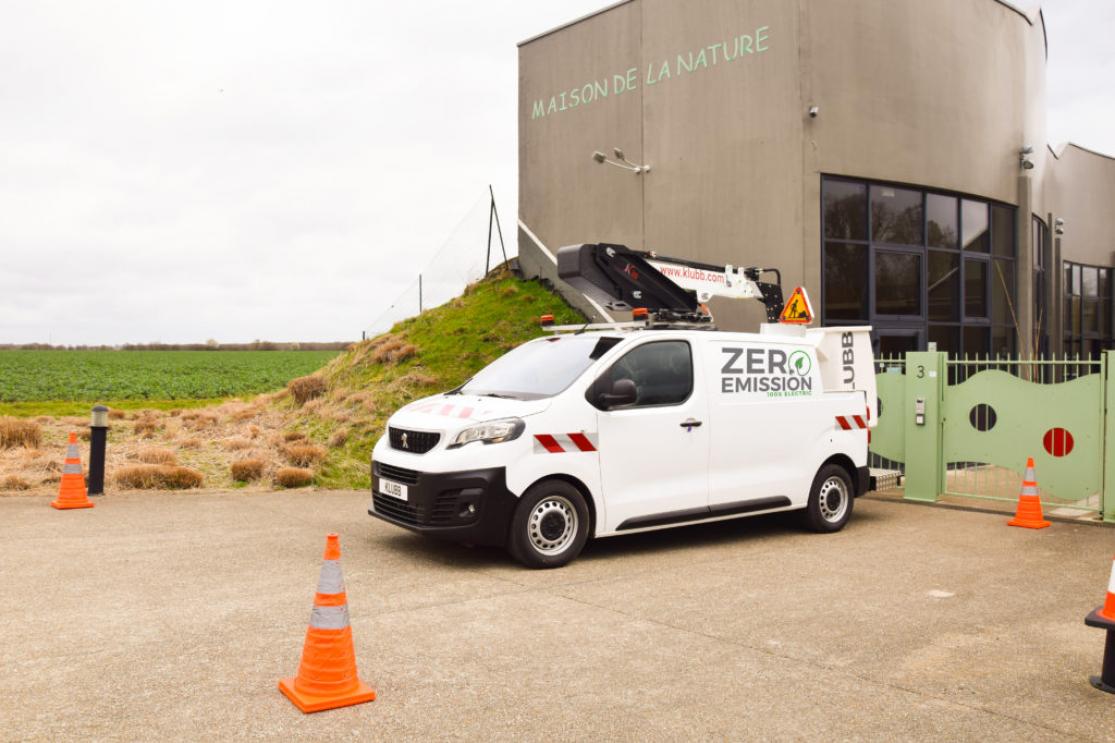

The very compact Klubb K20L design (5.5m in length) on a cutaway e-Expert can be used in the most confined areas indoors or outdoors: underground car parks, pedestrian streets etc. It is a real asset for companies installing and maintaining video surveillance, local authorities etc.
This small aerial platform vehicle, without outriggers, excels by its working height of 10.20m and its offset of 4.80m.
If you want to work at height without emitting pollutants and without noise (to the great satisfaction of local residents) then this model is for you. Please contact us.
Technical specifications
- Max. working height : 10.20m (33’46”)
- Max. working outreach : 4.80m (15’74”)
- Boom rotation : 360°
- Max. working load : 120Kg
- Max. platform height : 8.50m (27'88")
- Outriggers : no outriggers
- Basket size : 80 x 75 x 110 cm
- Chassis weight : ≤3.5 T
- Arm : Telescopic
- Engine : Electric
- IPAF category : 1b
Standard features
- Proportional controls on all movements
- Conveyor chain for hoses inside the mast for optimum protection
- Aluminium top mast for maximum stability
- Green Pack VL
Examples of vehicles
- Peugeot e-Expert L2H1 TRQ (Battery Pack « XL » : 270 MJ - range : 205 miles WLPT)
