Working Height : 11.30
Offset : 5.00
Rotation : 360
KLUBB Model = K26 Hilux
Capacity = 120kg, 1 operator, no outriggers

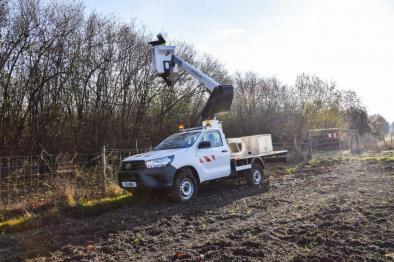

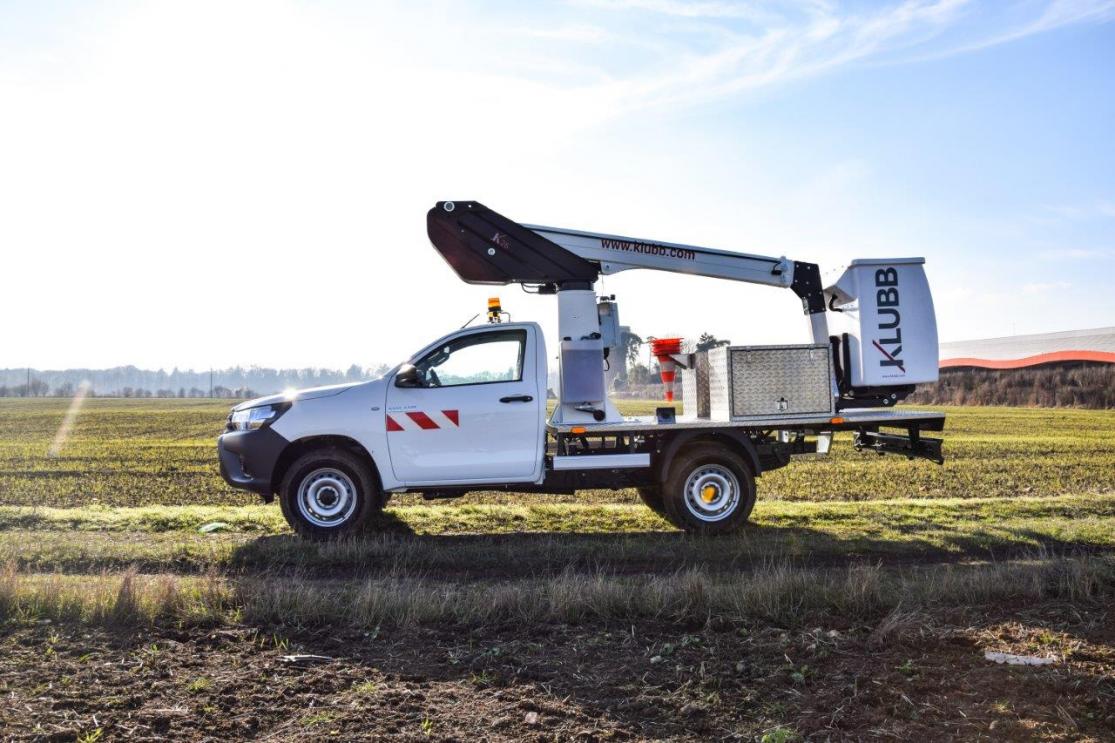

The K26 telescopic aerial platform mounted on a Toyota HiLux pick-up is designed to work on difficult surfaces. This telescopic boom lift mounted on a pick-up can work up to 11.30m high with an offset of 5.20m.
Thanks to its performance and robustness, this pick-up platform Toyota HiLux is particularly suitable for rough terrain. With its anti-corrosion aluminum boom, this model will also be perfectly suited to the most extreme weather conditions.
Technical specifications
- Max. working height : 11.30m (37’07”)
- Max. working outreach : 5.20m (17’06”)
- Boom rotation : 360°
- Max. working load : 120Kg
- Max. platform height : 9.50m (31'16")
- Outriggers : no outriggers or 2 A-framed
- Basket size : 72 x 86 x 110 cm
- Chassis weight : ≤3.5 T
- Arm : Telescopic
- Engine : Gas
- IPAF category: 1b
- Lifting mechanism : hydraulic
Standard features
- * 1 man basket (120kg) without outriggers
- * 2 man basket (200kg) with outriggers
- Engine stop / start in basket
- Hour counter
- Alternate circuit on independent electric pump with all the functions in the basket for maximum safety.
- Lastest innovation, an aluminum boom for optimal stability
- Proportional controls on all movements
- Secure access to the work platform
- Rigid protective cover for controls in high position
Options
- Signalling equipment (tri-flash, 2 flashing lights, strips)
- 220 V circuit in the aerial platform
- Reinforced suspensions
- Low voltage insulated basket with full opening
- Interior fittings
- Ladder rack
- Rotating basket
- Green pack: operation of the aerial platform on battery, with engine off
"green pack"
The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
