Arbeitshöhe : 16.80
Reichweite : 12.50
Rotation : 420
16,80 Meter Bucket-Truck-Fahrgestell (55’1″)
KLUBB-Modell = KT17Kapazität = 300 kg, 3 Bediener, mit 4 Stützauslegern

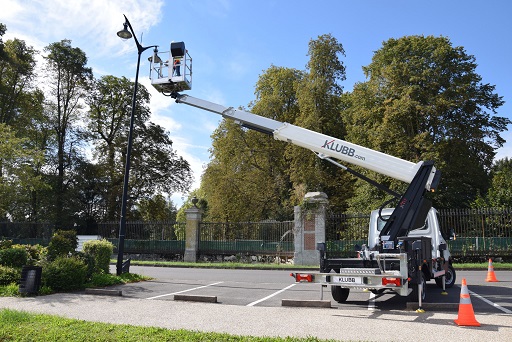

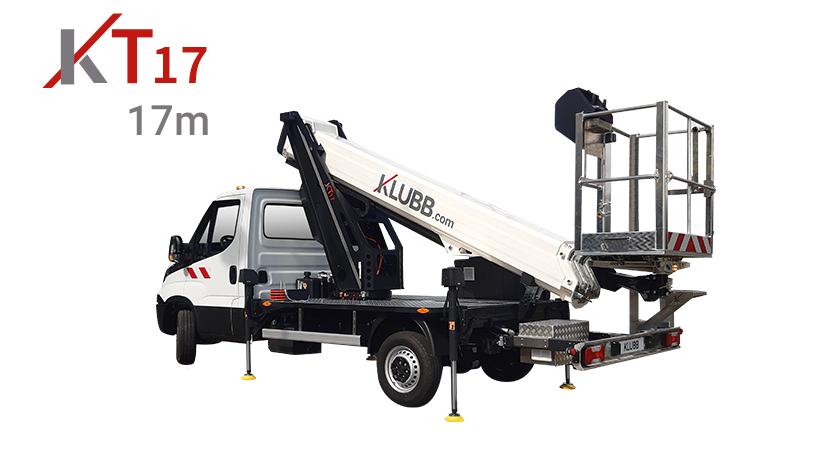

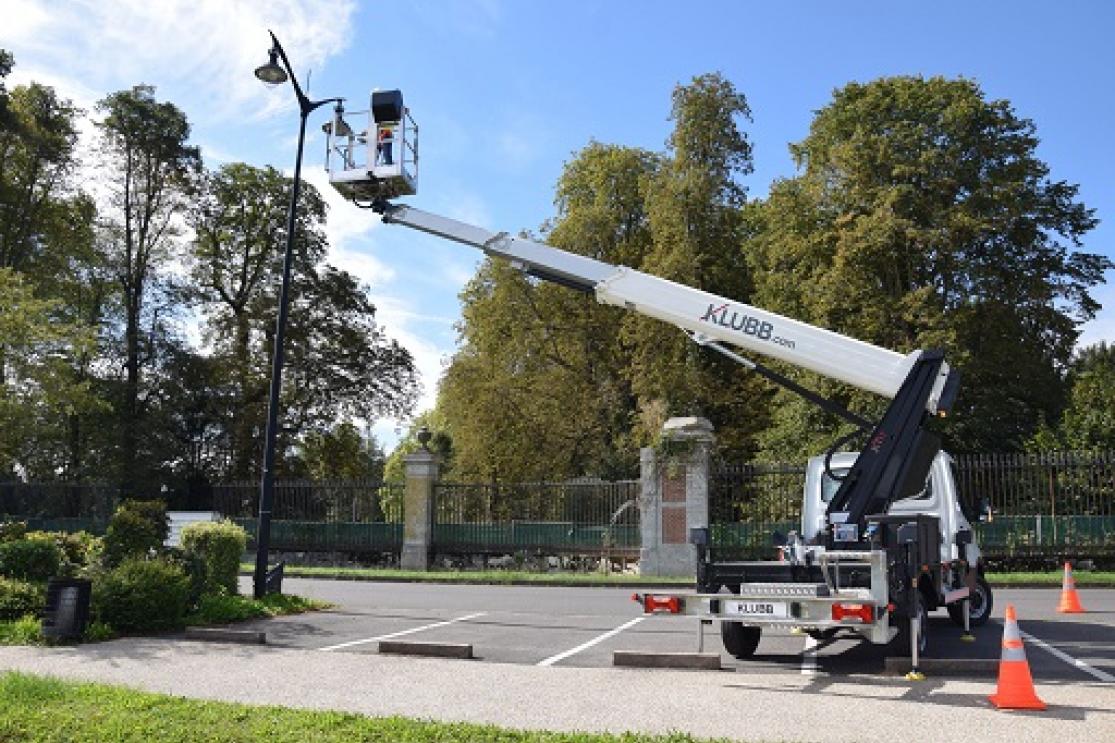

The KT17 stands out for its exceptional features: a working height of 16.80m and an offset of 11.50m. KLUBB’s new range of aerial platforms on chassis are designed for the users right down to the smallest technical detail. We are able to offer customers high performance, cost-efficient aerial platforms that deliver new advances in performance, safety and total cost of ownership.

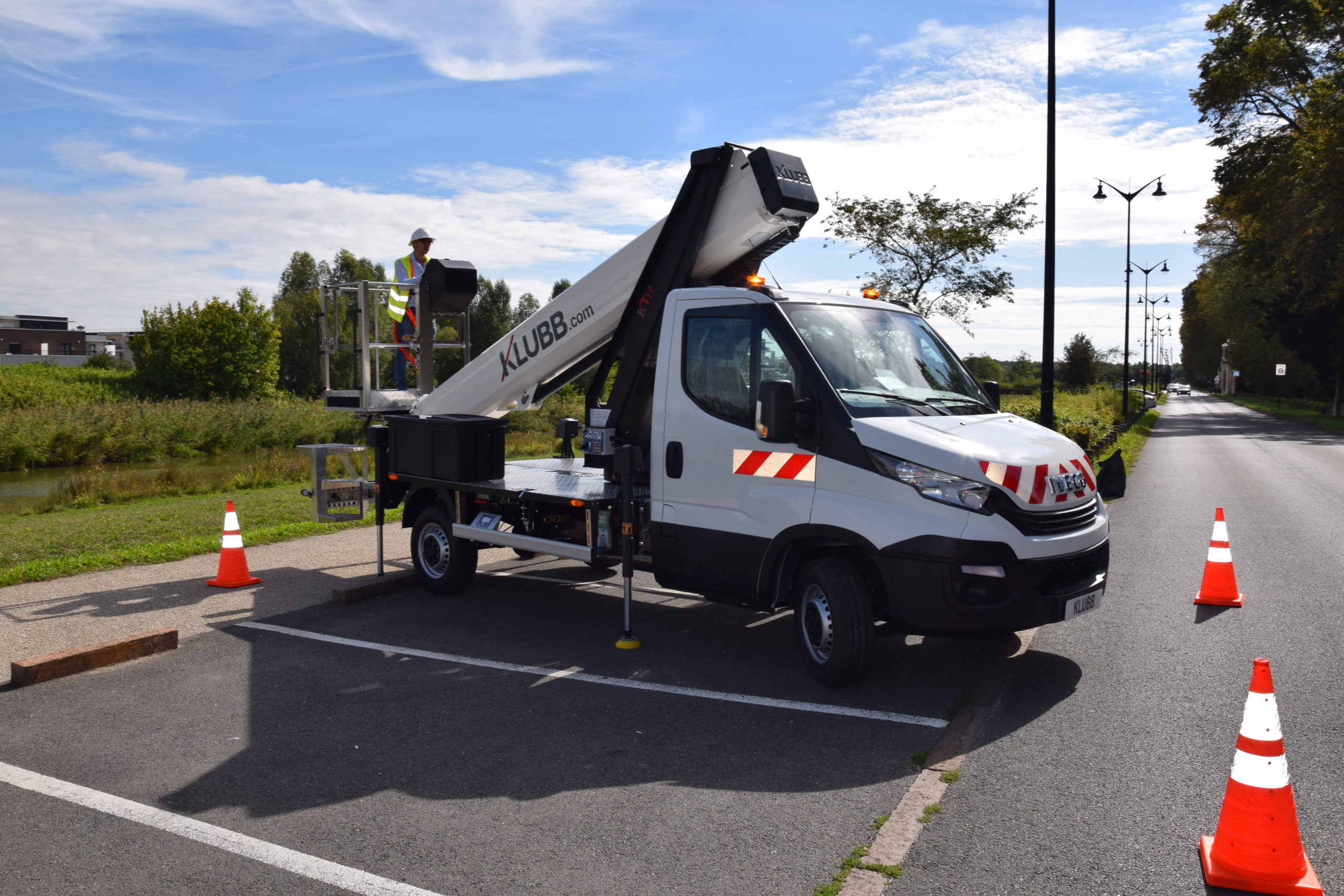

This chassis-mounted aerial work platform has 4 extendable outriggers, favoring a better grip on the ground and making it possible to modulate congestion on the road.
You can add options such as the signaling kit including gyro and triflash, a drop-side, chests or high-level protection. This aerial platform on the chassis will be perfectly compatible with different brands of chassis like Iveco Daily or Mercedes 313 CDI.
STANDARD FEATURES
Engine start and stop from basket
Independent emergency electric pump with all the features in the basket for maximum security
Proportional controls
Secure access to the working platform
Hoses and cables are inside the boom structure for maximum protection

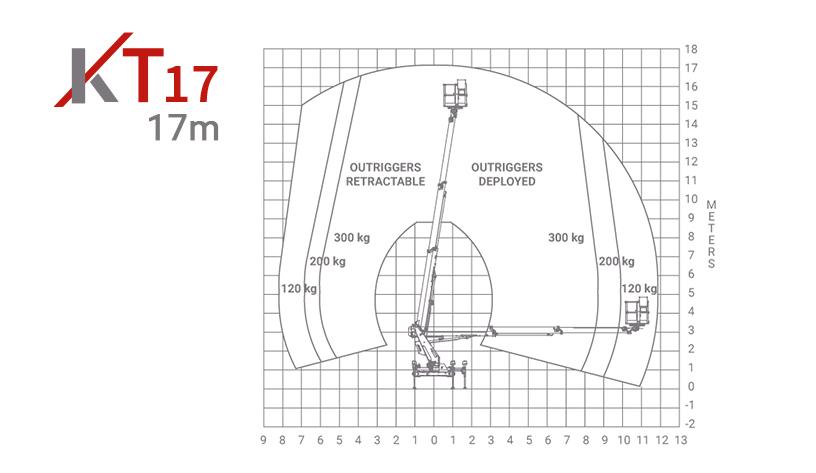

Double stabilization :
– Outriggers in the template for a reduced congestion in the streets (working
outreach reduced)
– Outriggers extended at the front, left side or right side for a full working
outreach

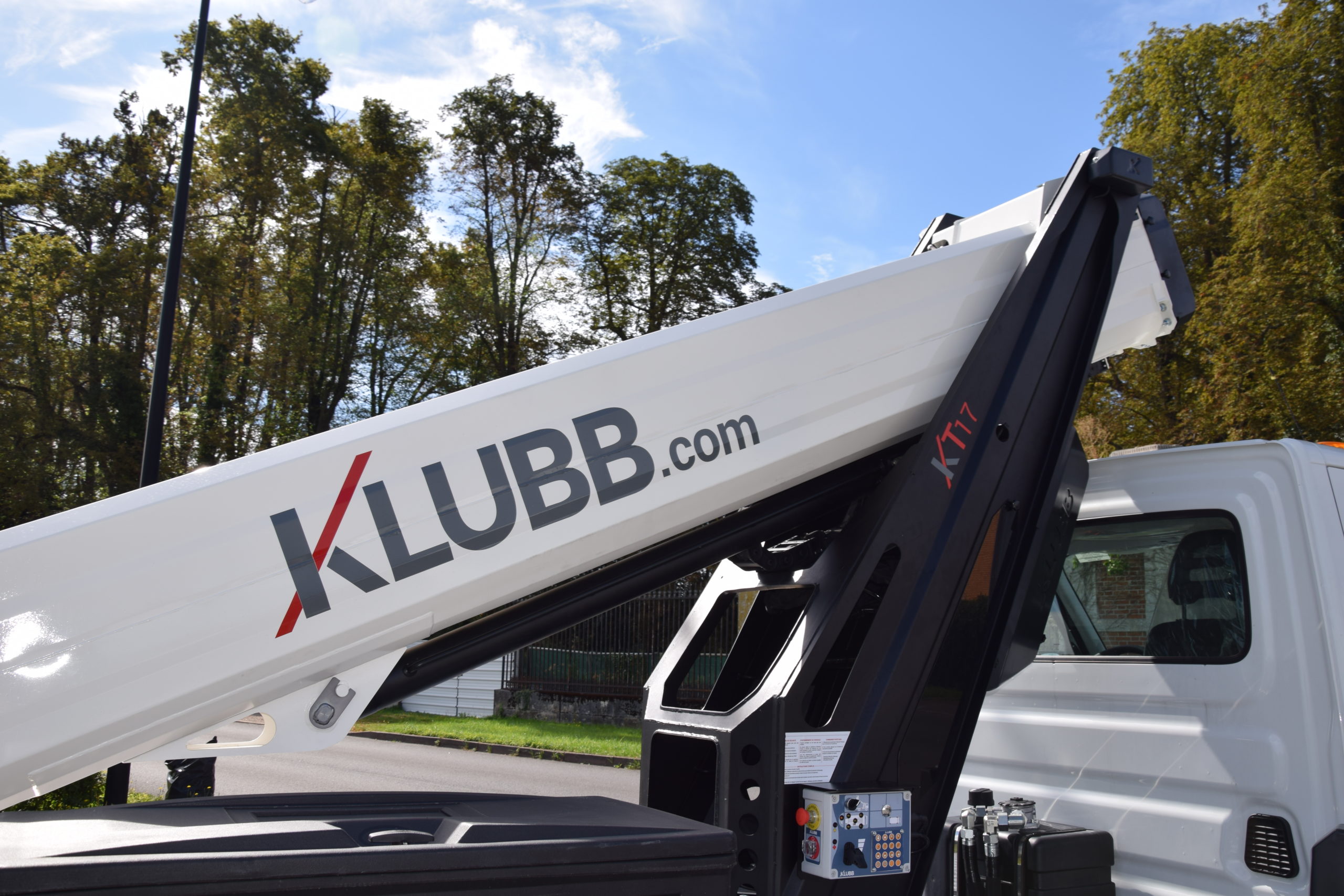

Aluminium boom for optimum stability
Automatic stabilization (top and bottom)
Home function with automatic stabilizer lift
EXAMPLES OF VEHICLES
IVECO DAILY (wheelbase 3750)
MERCEDES 313 CDI (wheelbase 3665)
For vehicle options, please contact us before ordering
Technische Spezifikationen
Max. Arbeitshöhe: 17,00 m (55'90")
Max. seitliche Reichweite: 11,90 m (39'10")
Auslegerdrehung: 420°
Max. Korblast: 300 kg
Max. Plattformhöhe: 15,00 m (49'30")
Abstützungen: 2 ausziehbare H-Rahmen-Abstützungen
Korbgröße: 125 x 75 x 110 cm
Fahrgestellgewicht: ≤3,5 t
